Clearance Check

Clearance Of Magnetic Clutch

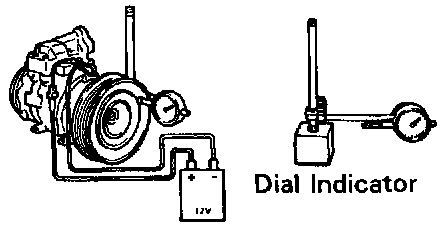

1. Set the dial indicator to the pressure plate of the magnetic clutch.
2. Connect the magnetic clutch lead wire to the positive (+) terminal of the battery.
3. Check the clearance between the pressure plate and rotor. then connect the negative (-) terminal of the battery.

Standard clearance: 0.5 ± 0.15 mm (0.020 ± 0.0059 in.)

If the clearance is not within the standard clearance, adjust it using shims to obtain the standard clearance.

Shim thickness:
0.1 mm (0.004 in.)
0.3 mm (0.012 in.)
0.5 mm (0.020 in.)
