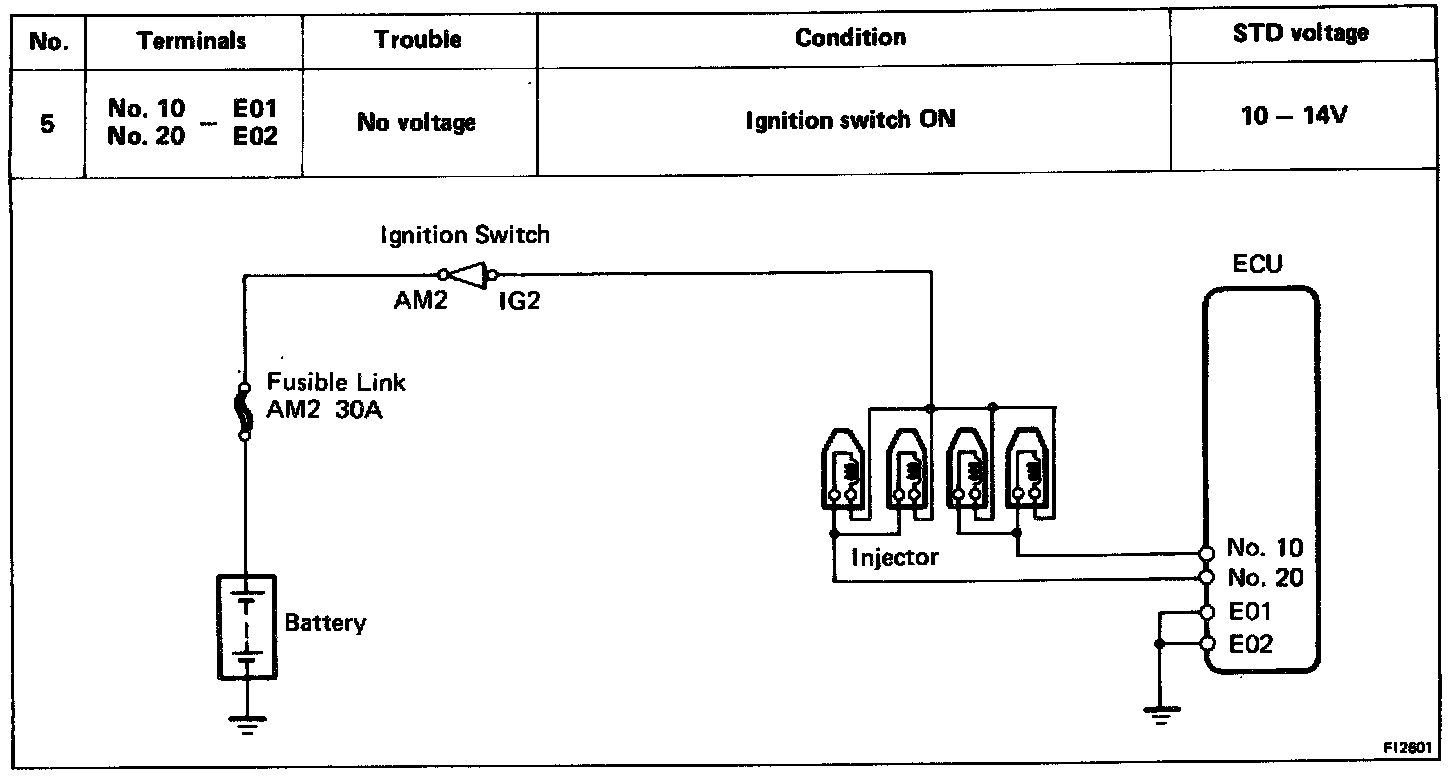

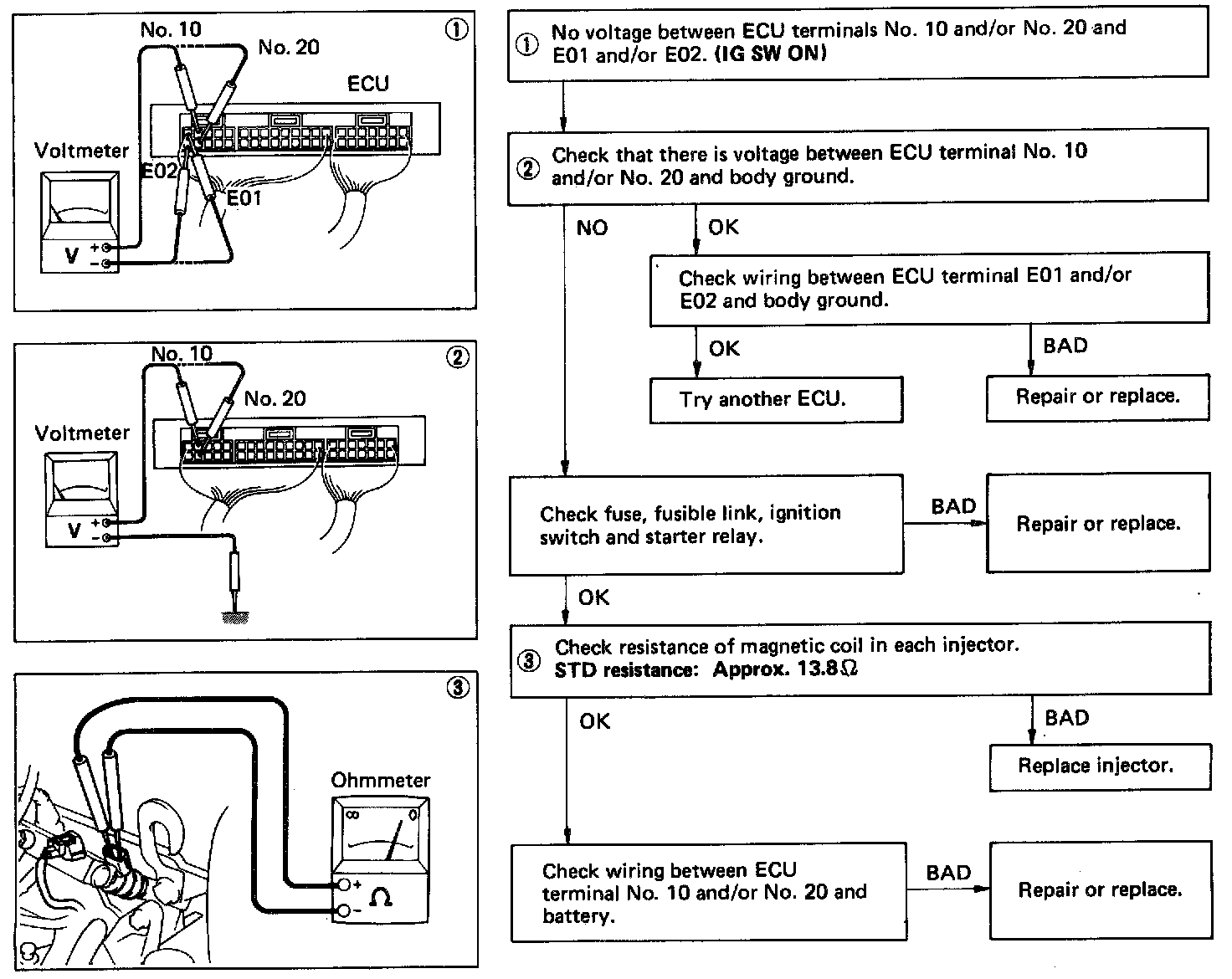

Home >> Toyota >> 1990 >> Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Test Charts (For Trouble Code Diagnosis) >> Chart 5
