Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Corolla Sedan L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Primary Components
>>
Igniter
>>
Circuit Test
Circuit Test

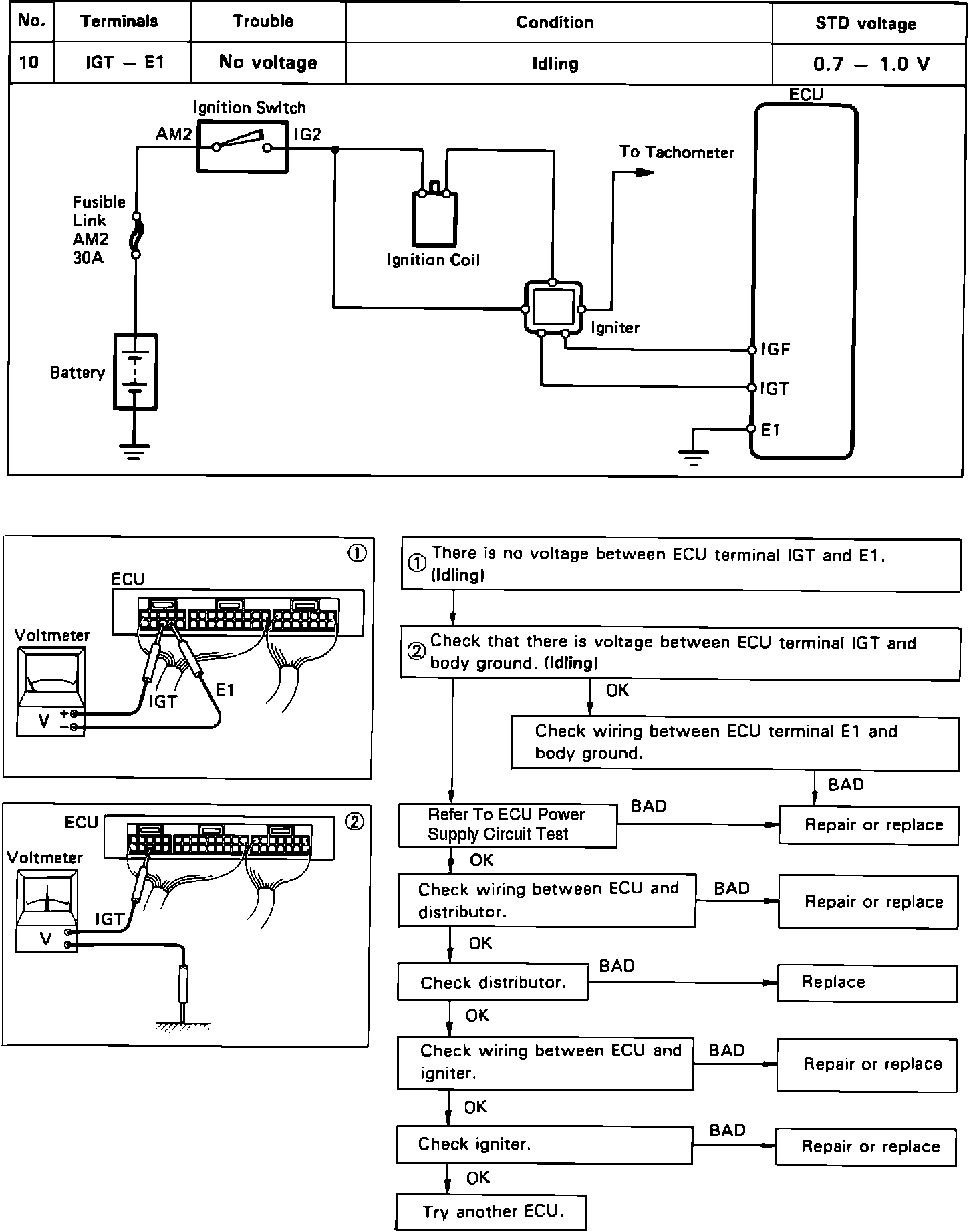

Ignition Signal Circuit Test:
