Inspection of Diagnosis System Circuit

INSPECTION OF DIAGNOSIS SYSTEM CIRCUIT

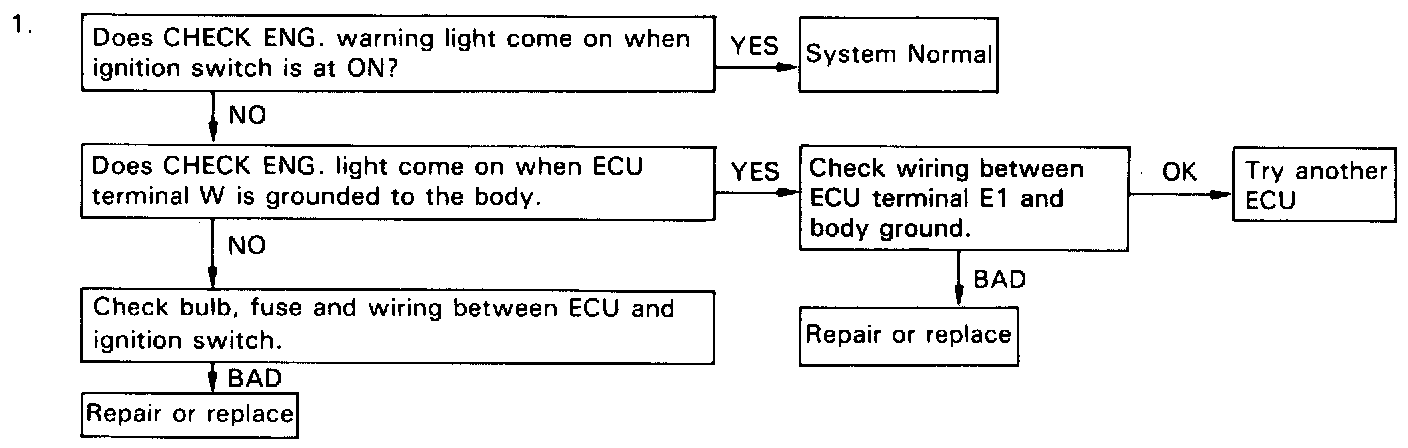

PART 1 OF 2

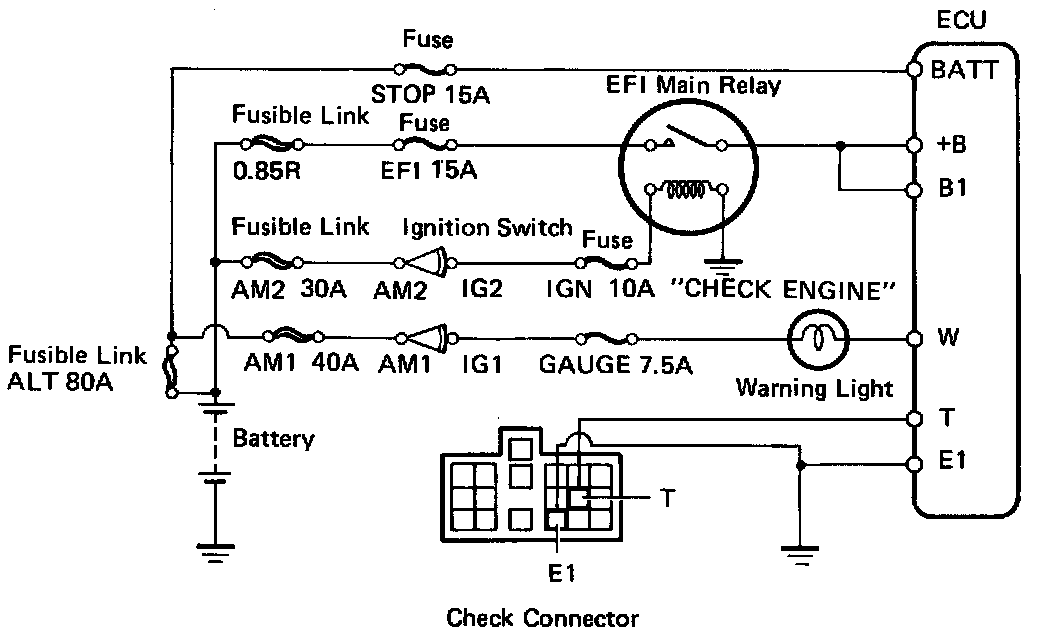

PART 2 OF 2
