Blower Motor Switch: Testing and Inspection

Heater Blower Switch Testing:

- Gain access to the back of the switch connector.

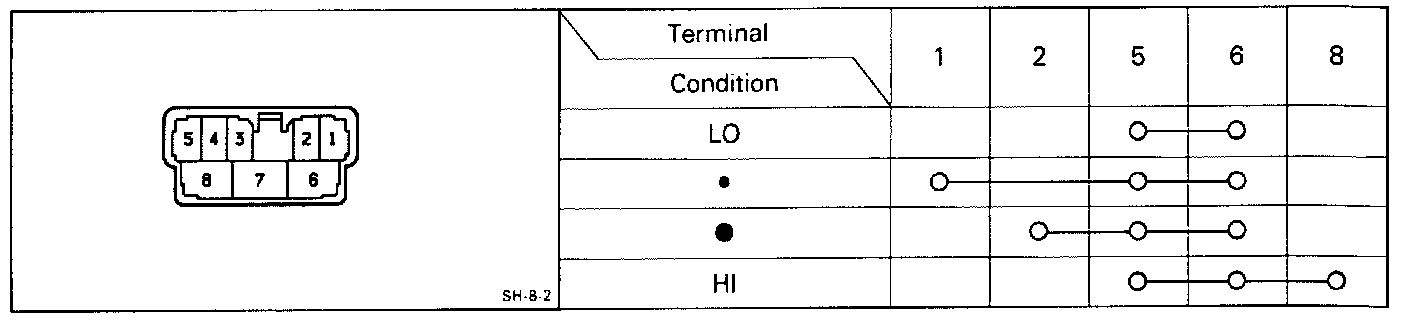

- Using an ohm meter probe, test the switch for continuity in each of the positions as shown in the table.
- If the switch fails any portion of the test, replace it.
