With A240L Transaxle

REMOVAL OF GOVERNOR VALVE
1. REMOVAL TRANSAXLE DUST COVER
2. REMOVE GOVERNOR VALVE Component Parts Removal (A240L) (Part 1)

INSTALLATION OF GOVERNOR VALVE
1. INSTALL GOVERNOR VALVE Component Parts Installation (A240L) (Part 3)
2. INSTALL TRANSAXLE DUST COVER

Speedometer Driven Gear

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL

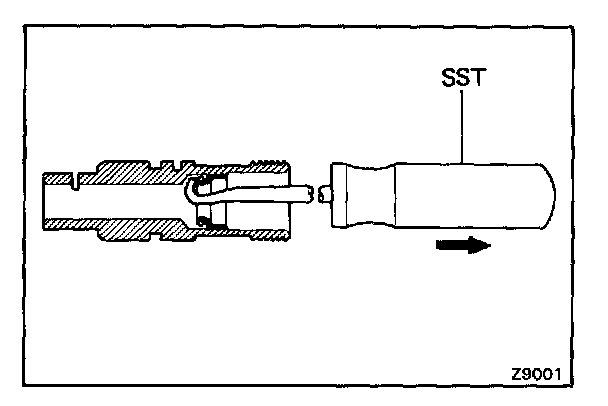

1. REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL Using
SST, pull out the oil seal.

SST 09921-00010

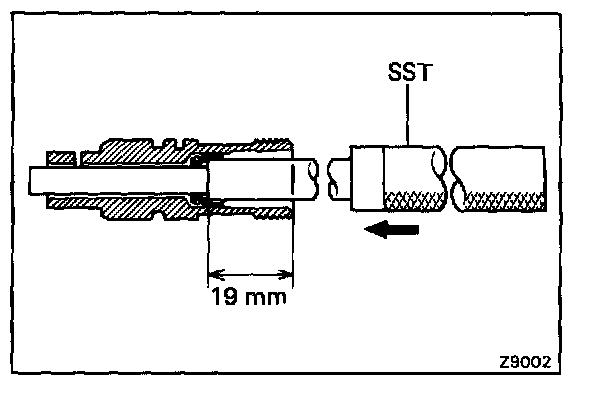

2. INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, drive in the oil seal.

SST 09201-60011

Drive in depth: 19 mm (0.75 in.)
