With A131L Transaxle

NOTE: Perform this test at normal fluid temperature (50 - 80 °C or 122 - 176 °F)

1. D RANGE TEST
Shift into D range and while driving with the accelerator pedal held constant at the throttle valve full open, check on the following points:




a. Check to see that the 1-2 and 2-3 up-shifts take place and also that the shift points conform to those shown in the automatic shift schedule. Automatic Shift Schedule

EVALUATION
- If there is no 1-2 up-shift:
Governor valve is defective
1-2 shift valve stuck

- If there is no 2-3 up-shift:
2-3 shift valve stuck

- If the shift point is defective:
Throttle cable out-of adjustment Throttle valve, 1-2 shift valve, 2-3 shift valve, etc. defective

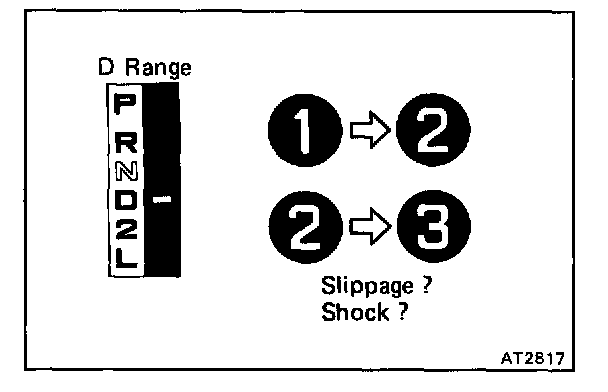

b. In the same manner, check the shock and the slip at 1-2 and 2-3 up-shifts.

EVALUATION
- If the shock is severe:
Line pressure is too high
Accumulator is defective
Check ball is defective




c. Run in the 3rd gear of b range, check the abnormal noise and vibration.

HINT: Check for cause of abnormal noise and vibration must be made with extreme care as they could also be due to unbalance in the drive shaft, differential, tires, torque converter, etc.

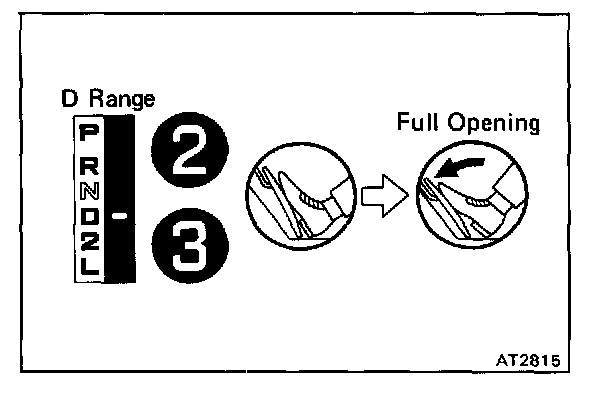

d. While running in the 3rd gear of D range, check to see that the possible kick-down vehicle speed limits for the 3-1 and 3-2 kick-downs conform to those indicated in the automatic shift schedule. Automatic Shift Schedule

EVALUATION
- If the possible kick-down vehicle speed limit is defective:
Throttle cable out-of adjustment
Throttle valve, 1-2 shift valve, 2-3 shift valve, etc. defective

e. Check the abnormal shock and slip at kick-down.

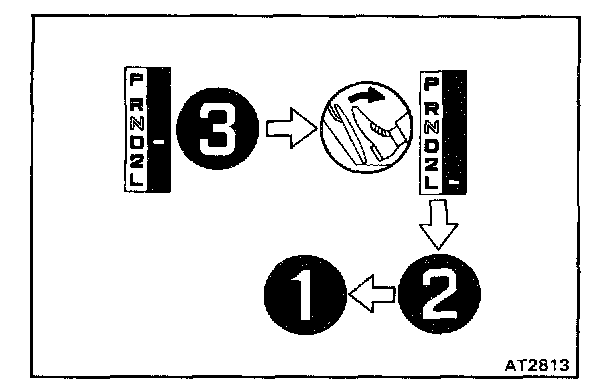

f. While running about 60 km/h (37 mph) in the 3rd gear of D range, release your foot from the accelerator pedal and shift into L range. Then check to see if the 2-1 down-shift point conform to those indicated in the automatic shift schedule. Automatic Shift Schedule
