Diesel Data: Automotive Repair
Home >> Toyota >> 1990 >> Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Coupe

Coupe

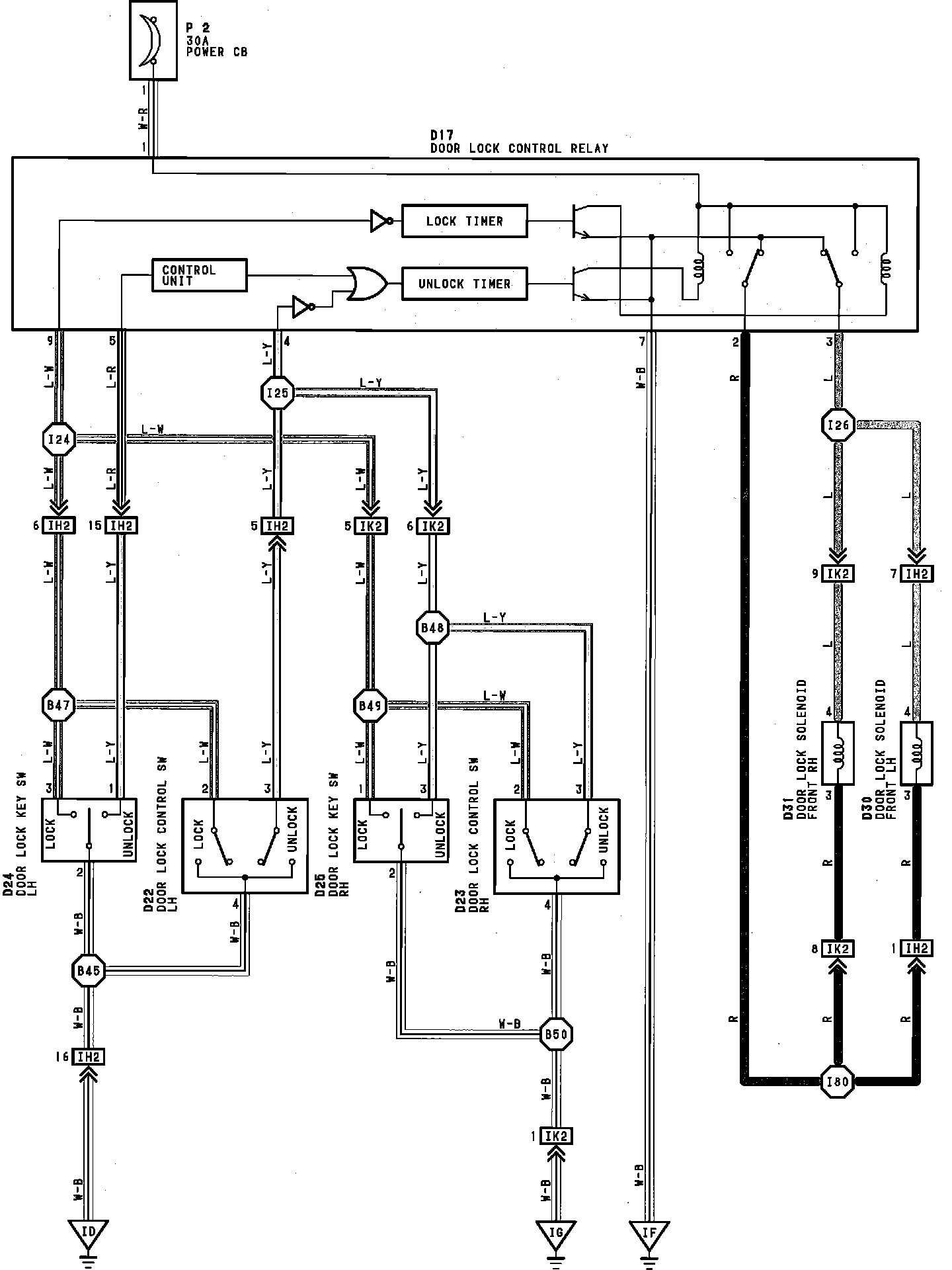

Power Door Locks (Coupe):
