Radiator Cooling Fan Motor

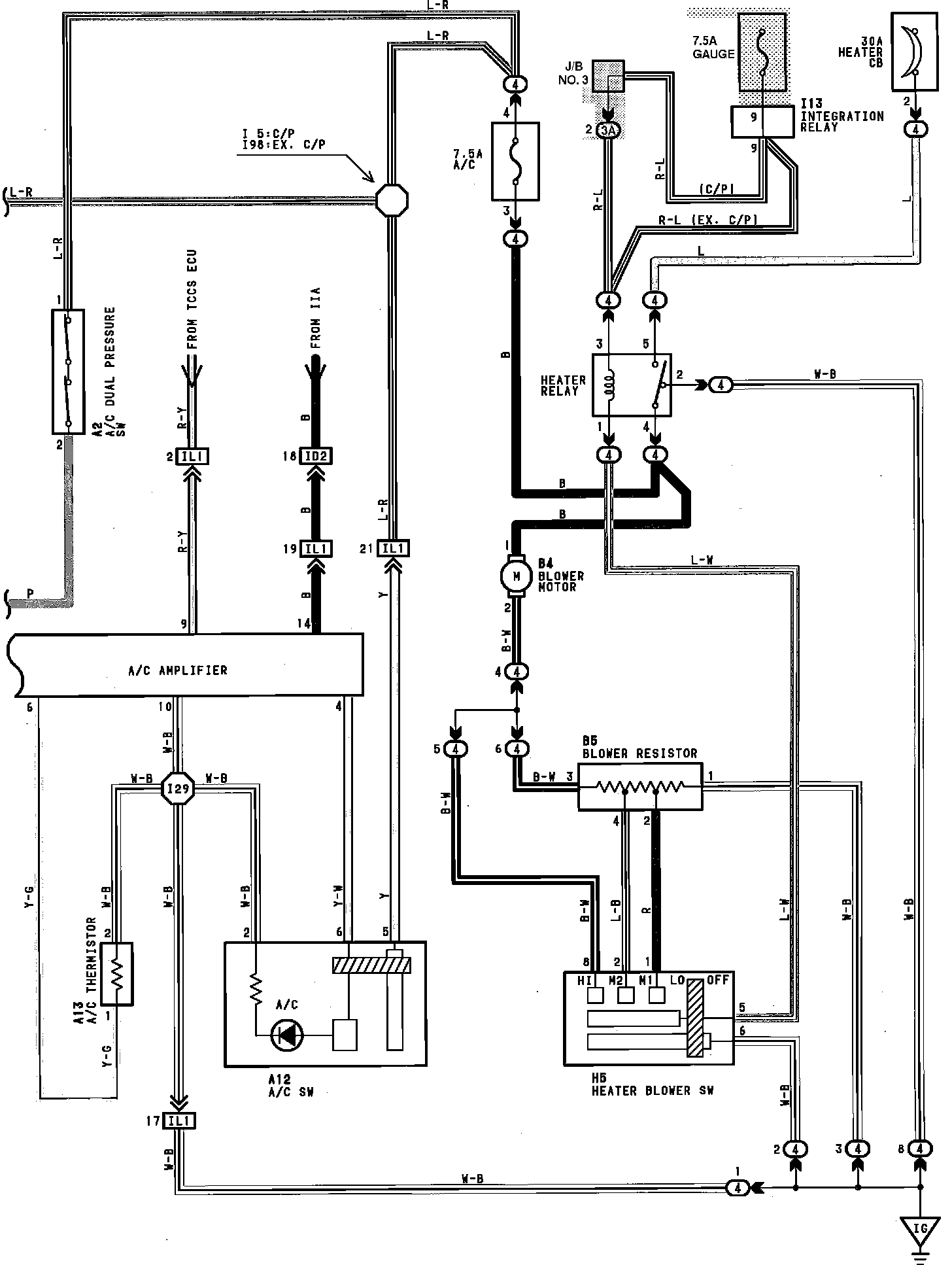

Radiator Fan And Air Conditioning (4A-FE):

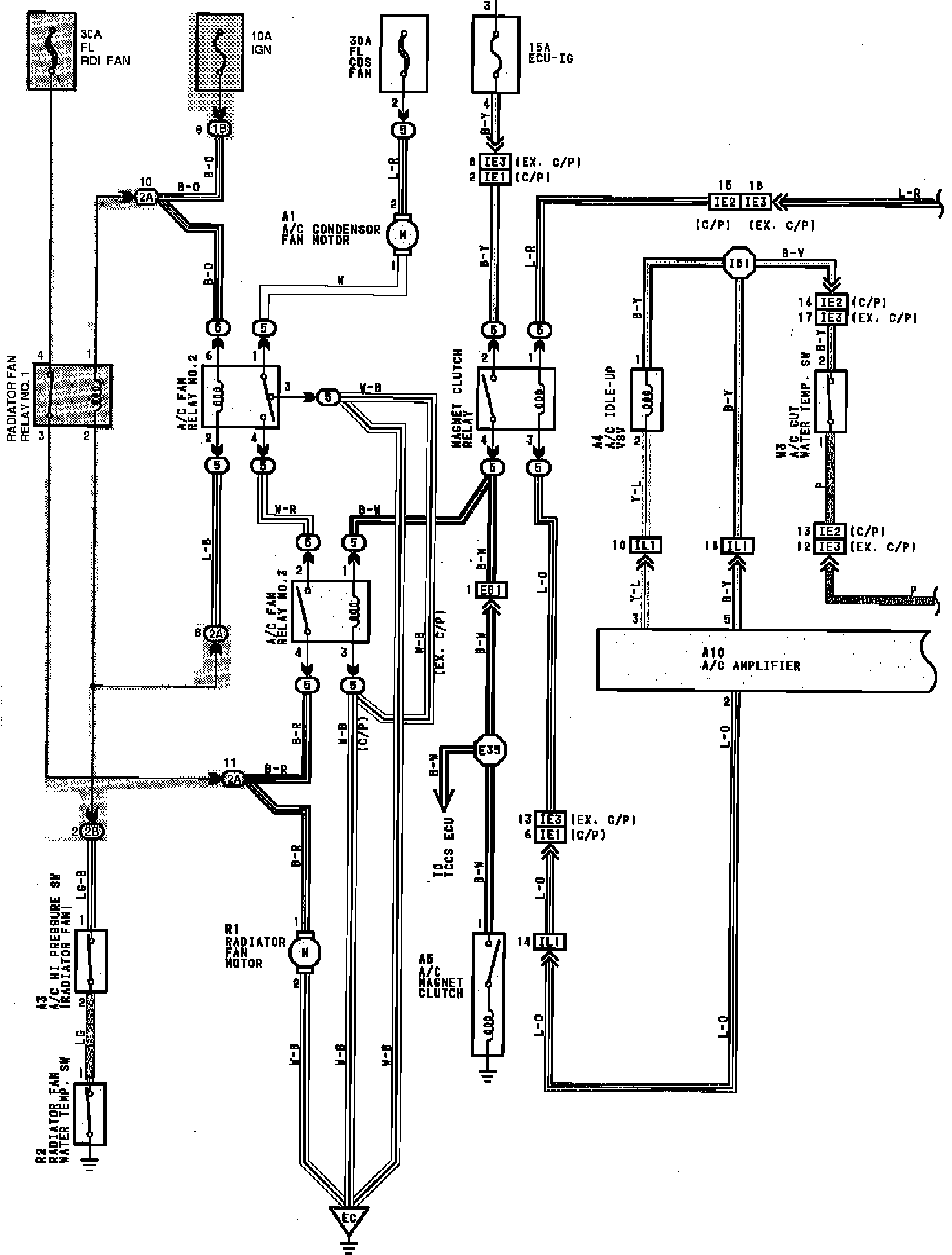

Radiator Fan And Air Conditioning (4A-FE):
