Air Door Cable: Adjustments

HEATER CONTROL





(Inspect Heater Control Cable Operation)
Move the control levers left and right and check for stiffness and binding through the full range of the levers.

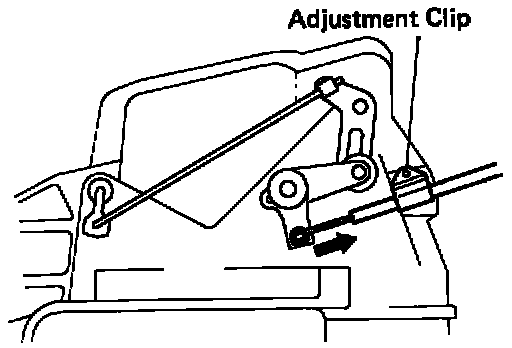

(Set Air Inlet Damper)
Set the air inlet damper and control lever to "RECIRC".

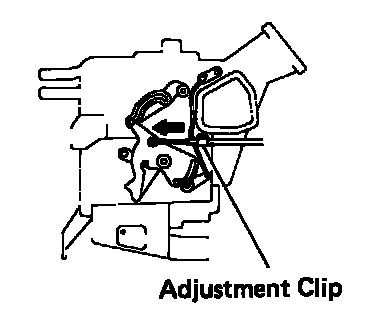

(Set Mode Selector Damper)
Set the mode selector damper and control lever to "FACE".

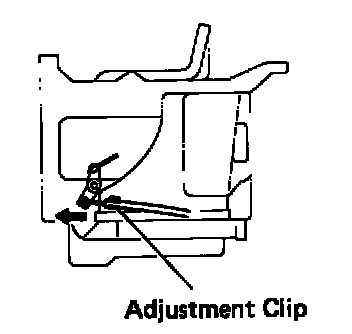

(Set Air Mix Damper)
Set the air mix damper and control lever to "COOL".





(Set Water Valve)
Set the water valve and control lever to "COOL".

HINT: Place the water valve lever on "COOL" and while pushing the outer cable in the "COOL" direction, clamp the outer cable to the water valve bracket.
