Removal and Installation

A/C CONTROL ASSEMBLY REMOVAL


1. Remove These Parts:
a. Center cluster finish lower panel.
b. Center cluster finish panel.
c. Lower finish panel.
d. Glove compartment parts.

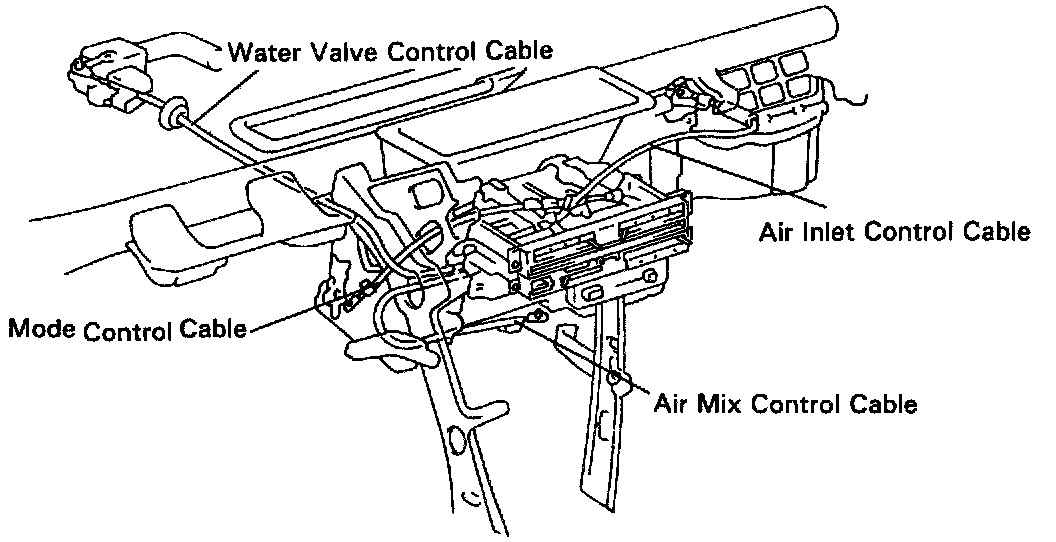

2. Disconnect Control Cables







3. Remove A/C Control Assembly
a. Pull out the heater control knobs.
b. Remove the A/C switch.
c. Pull out the A/C control panel.

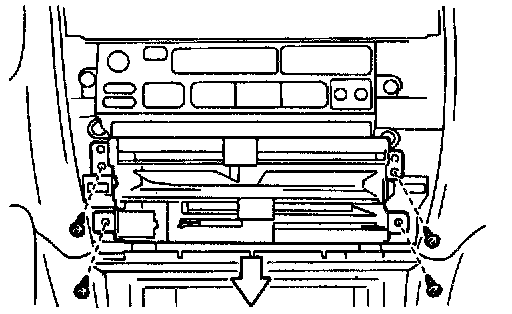

d. Remove the 4 screws and pull out the A/C control assembly, then disconnect the connector.


A/C CONTROL ASSEMBLY INSTALLATION
Installation is in the reverse order of removal.

HINT: If cables are in need of adjustment refer to Adjustments
