Heater Core Case: Service and Repair

HEATER UNIT REMOVAL







1. Drain Engine Coolant From Radiator

REMOVAL HINT: It is not necessary to drain out all the coolant.

2. Disconnect Water Hoses From Heater Radiator Pipes

INSTALLATION HINT:

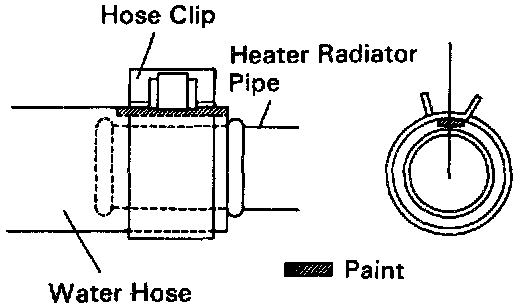

- Push the water hose onto the heater radiator pipe as far as the ridge in the pipe.
- Install a hose clip in a position, as shown in the illustration.







3. Remove Pipe Grommets


4. Remove Cooling Unit
Service and Repair

5. Remove Instrument Panel And Reinforcement No. 1 And No. 2 Brace Dashboard / Instrument Panel







6. Remove Duct Heater To Register No.3
Remove the 2 screws and the duct.

7. Remove Front Defroster Nozzle

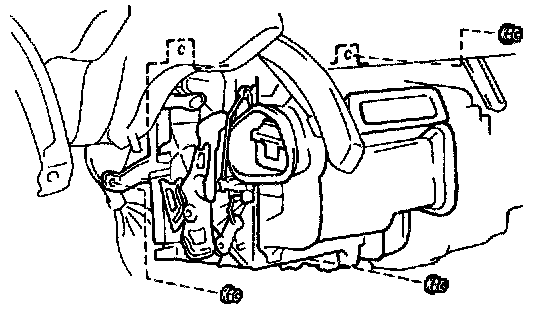

8. Remove Heater Unit
Remove the 3 nuts and the heater unit.

HEATER UNIT INSTALLATION
Installation is in the reverse order of removal.
