Ignition Coil

1. Remove the distributor cap.

Primary Coil Resistance:

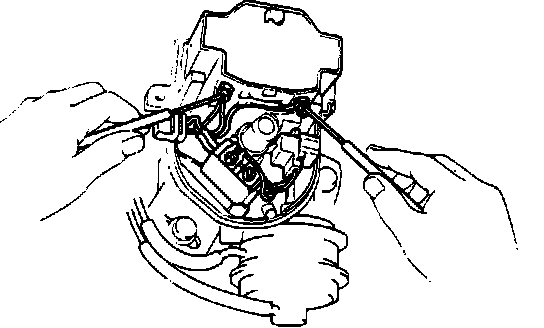

2. Connect one end of an ohmmeter to the (-) side of the ignition coil. Connect the other end to the (+) side of the ignition coil.

Primary Resistance (Cold): 1.28 - 1.56 ohms

3. If primary coil resistance value is not within specifications, replace ignition coil.

NOTE: For more information refer to SPARK TEST.
