EA, EB, EC, ID, Ie, If and Ig

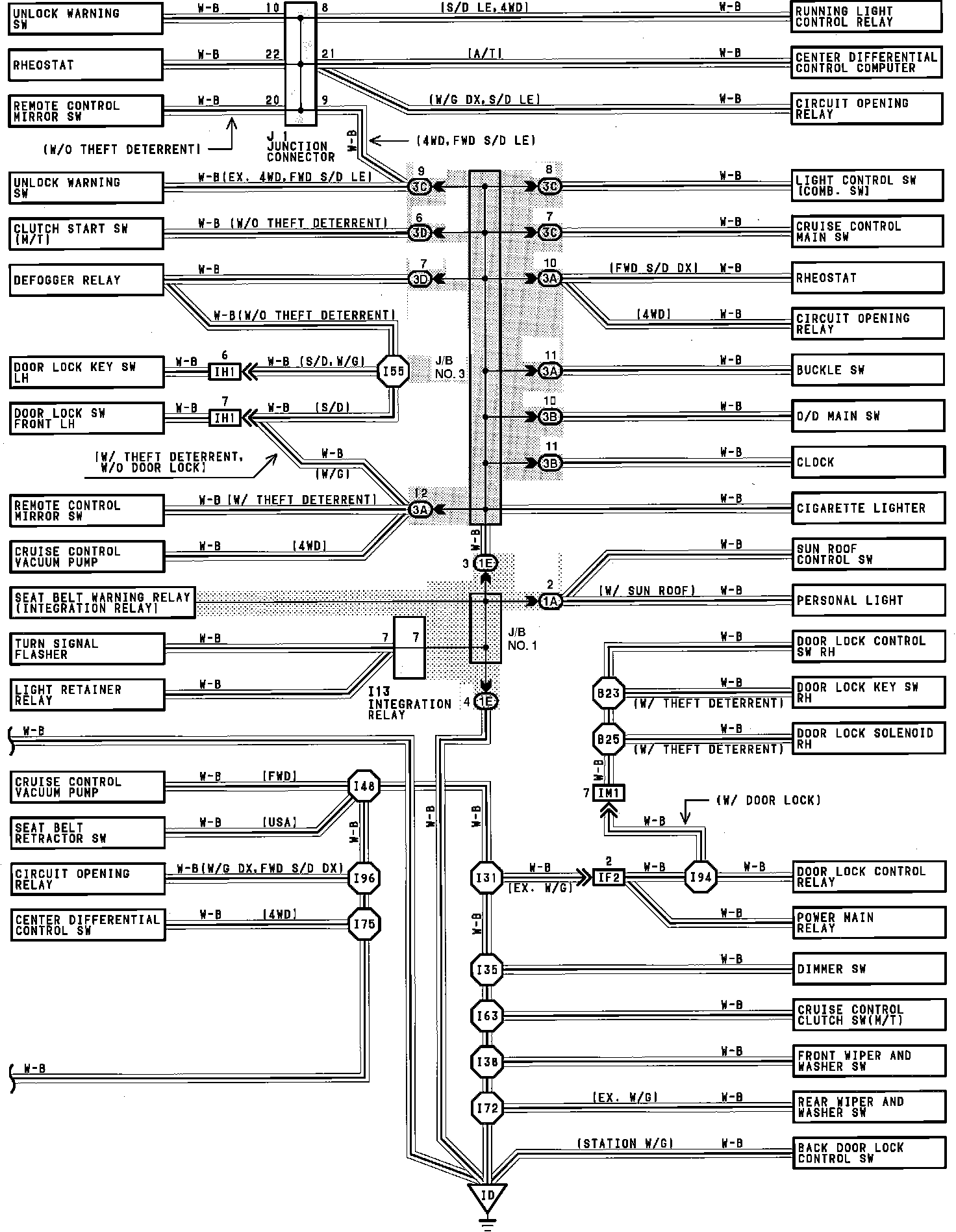

Ground Distribution (Except Coupe):

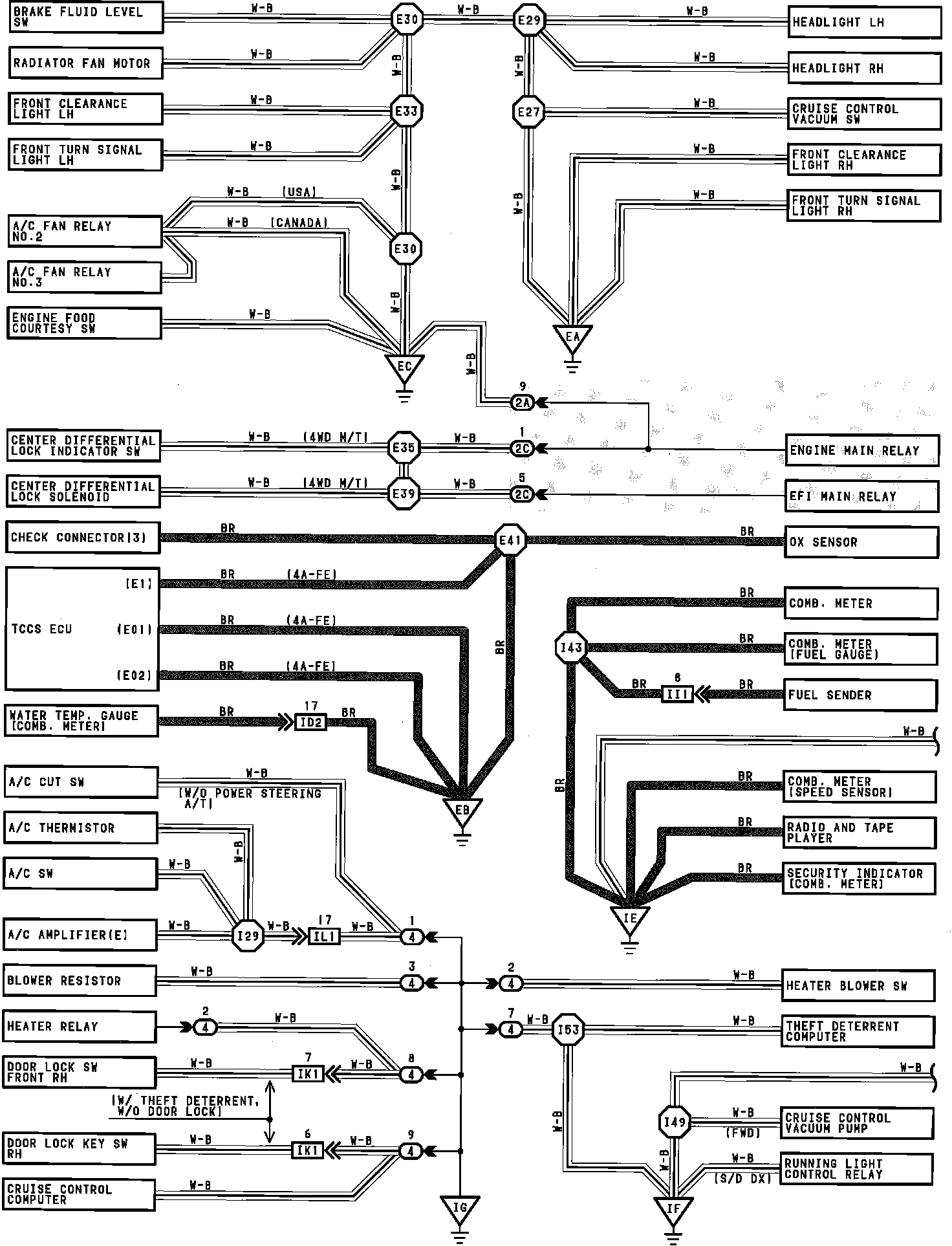

Ground Distribution (Except Coupe):
