Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Automatic Shift Schedule
>>
With A131L Transaxle
With A131L Transaxle

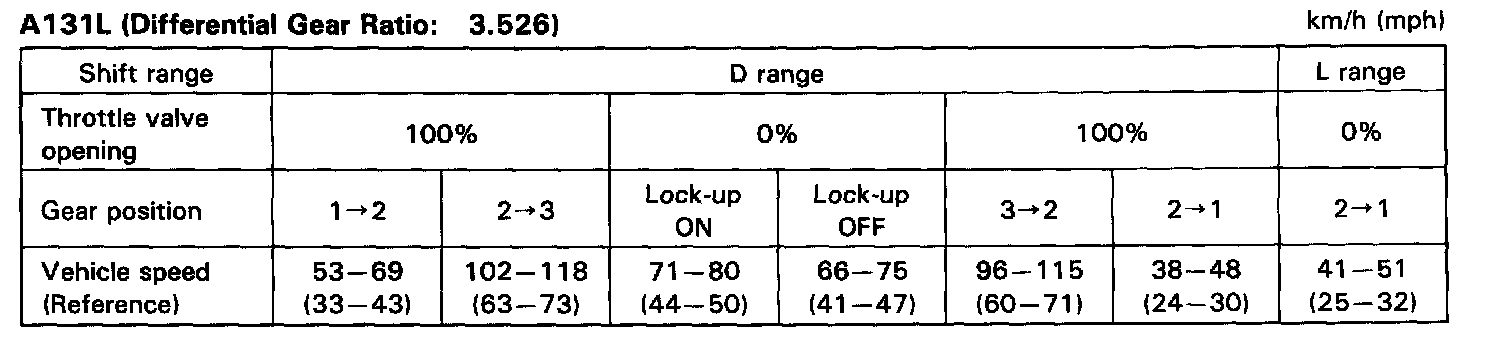

A131L (Differential Gear Ratio: 3.526):

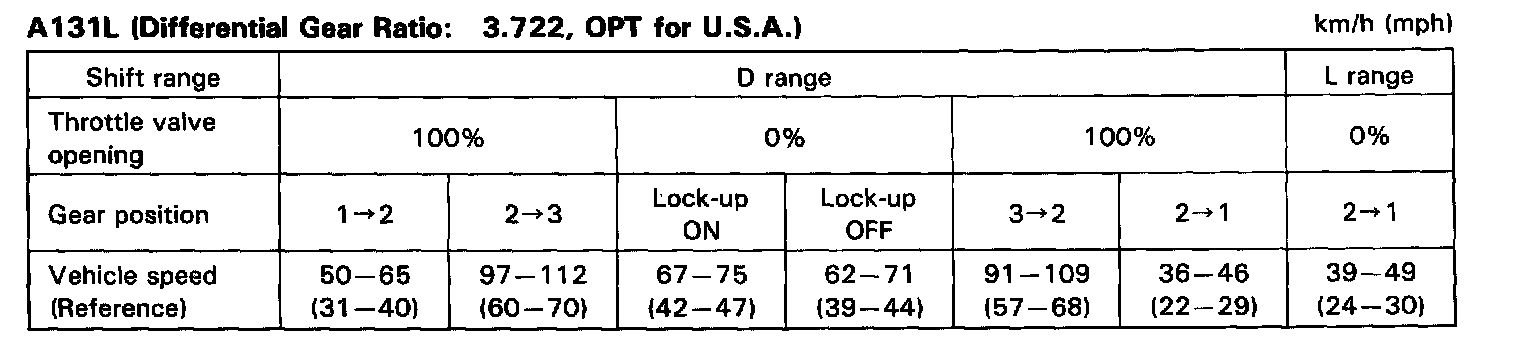

A131L (Differential Gear Ratio: 3.722, OPT For U.S.A):
