Corolla Wagon 4WD L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 11
>>
Ignition Switch Power Input
Ignition Switch Power Input

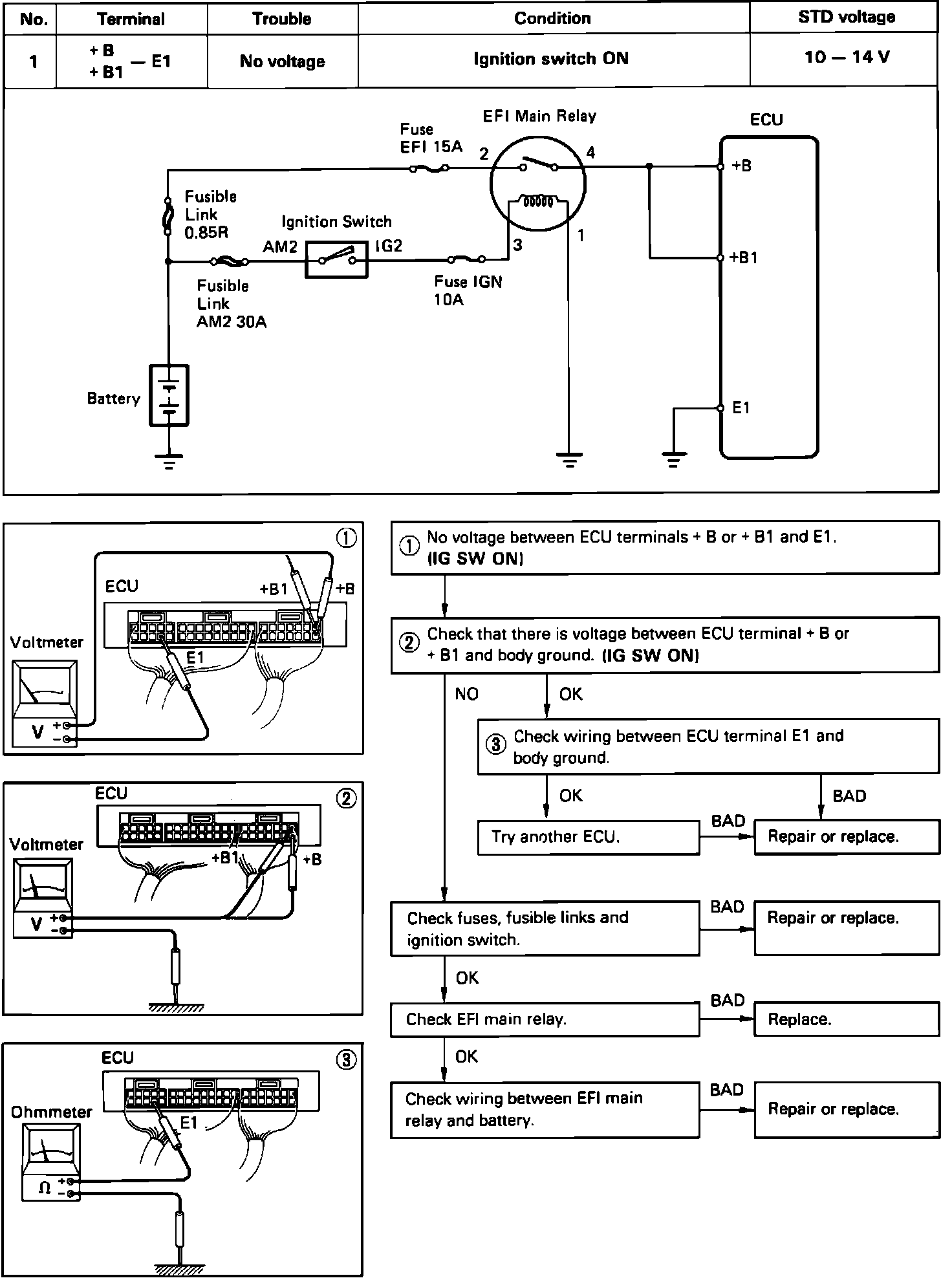

EFI Main Relay Circuit Test:
