Brake Pad: Testing and Inspection

INSPECT PAD LINING THICKNESS

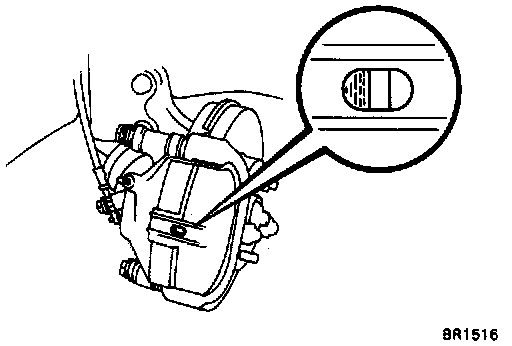

Check the pad thickness through the cylinder inspection hole and replace pads if not within specification.

Minimum thickness: 1.0 mm (0.039 in.)
