Headlight (For Canada)

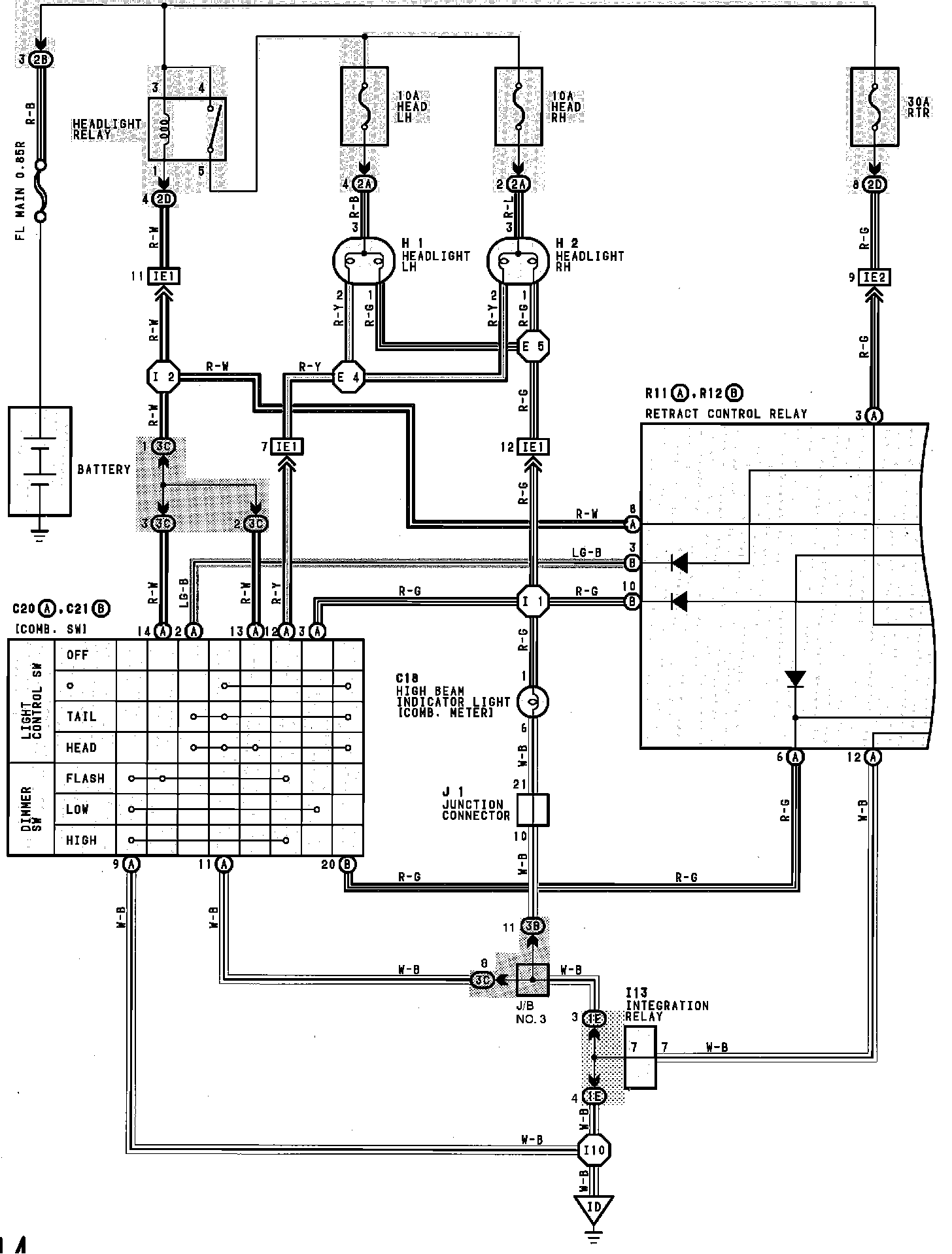

Part 1 Of 2 (Except Coupe):

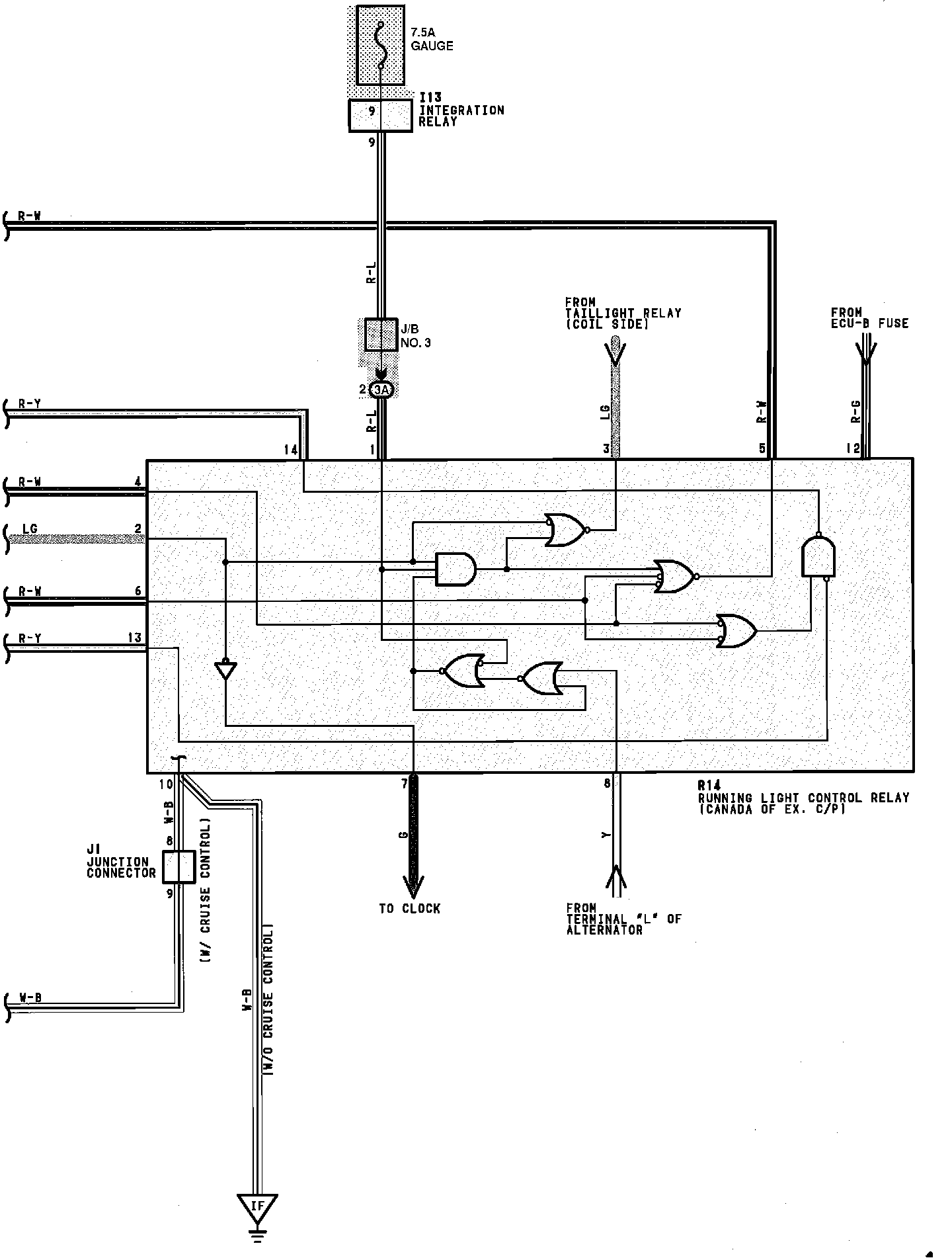

Part 2 Of 2 (Except Coupe):



Part 1 Of 2 (Coupe):



Part 2 Of 2 (Coupe):
