Home
>>
Toyota
>>
1990
>>
Corolla Wagon 4WD L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Oxygen Sensor
Oxygen Sensor

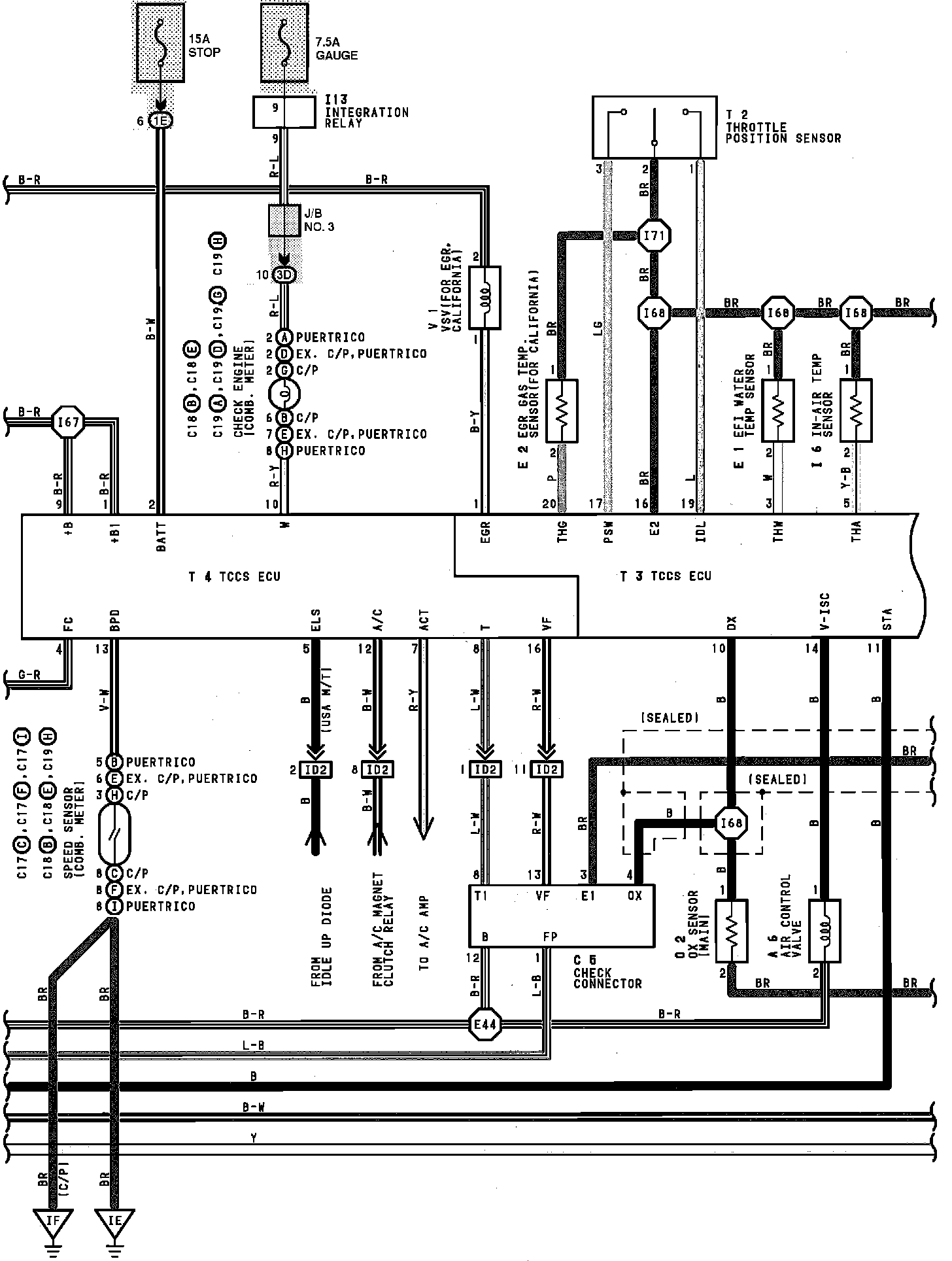

Engine Controls (4A-FE Engine):
