Corolla Wagon 4WD L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

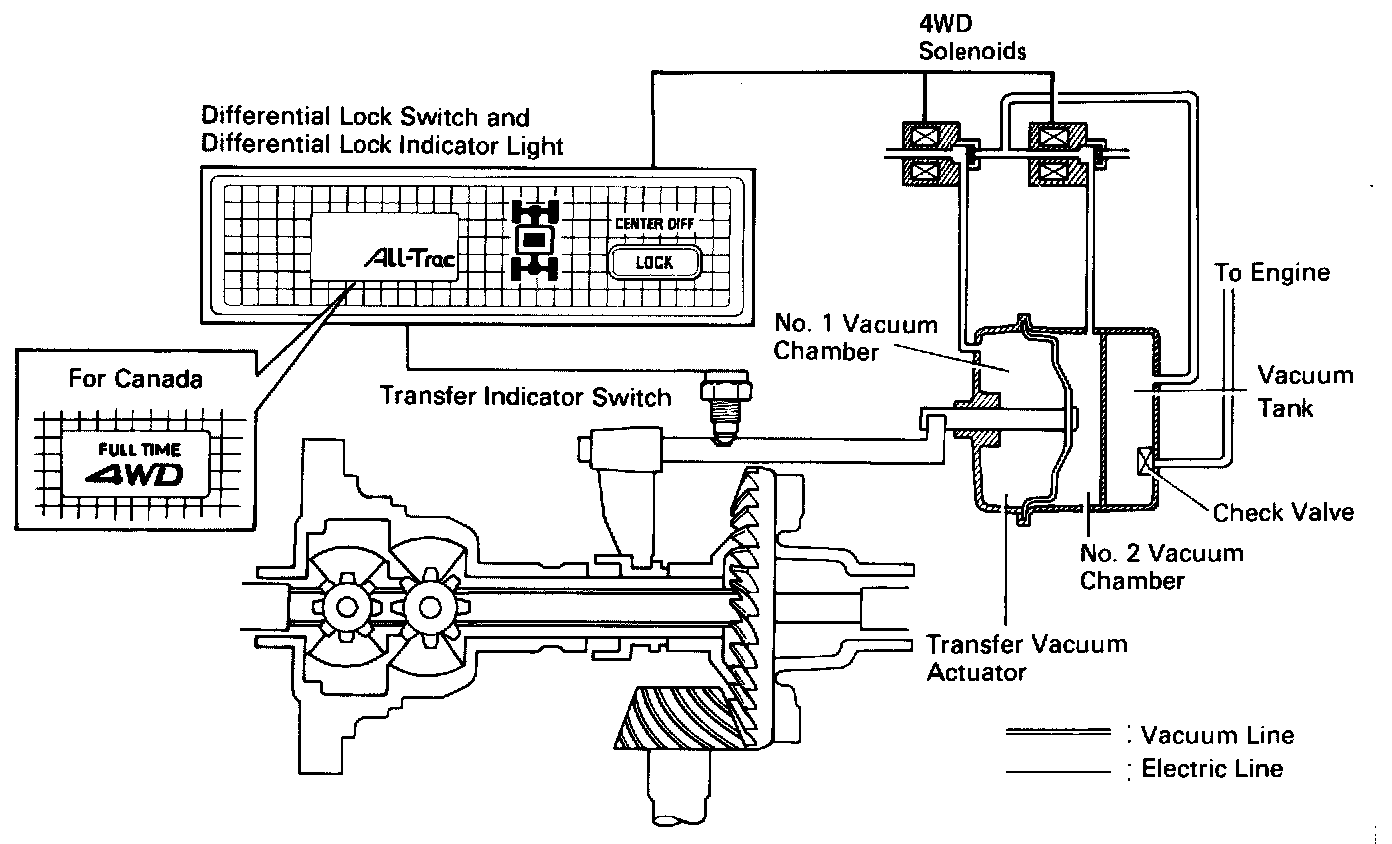

Differential Lock
Differential Lock
Vacuum
