Home >> Toyota >> 1990 >> Corolla Wagon 4WD L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Headlamps >> USA >> Sedan/Station Wagon

Sedan/Station Wagon

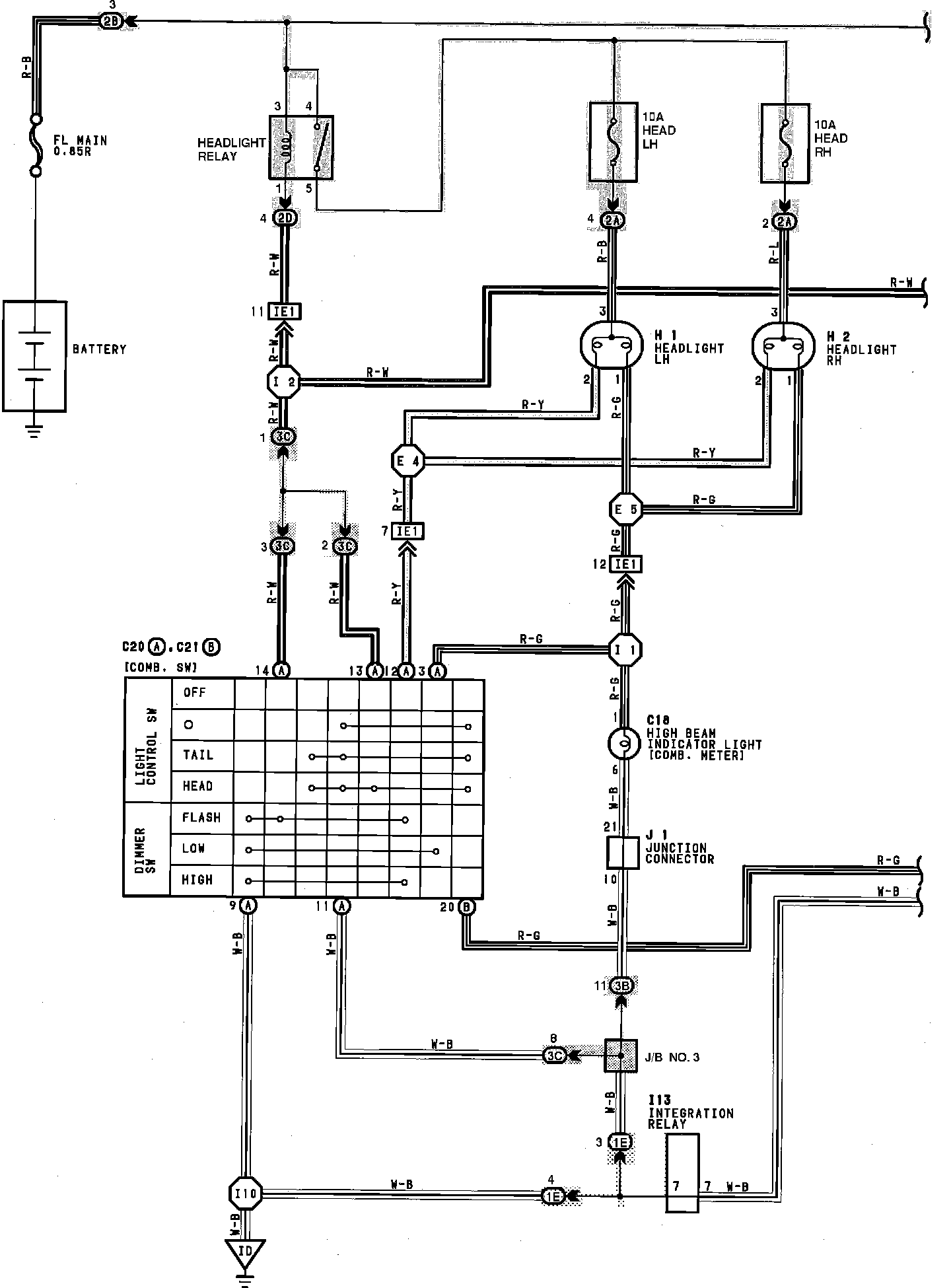

(Except Coupe):

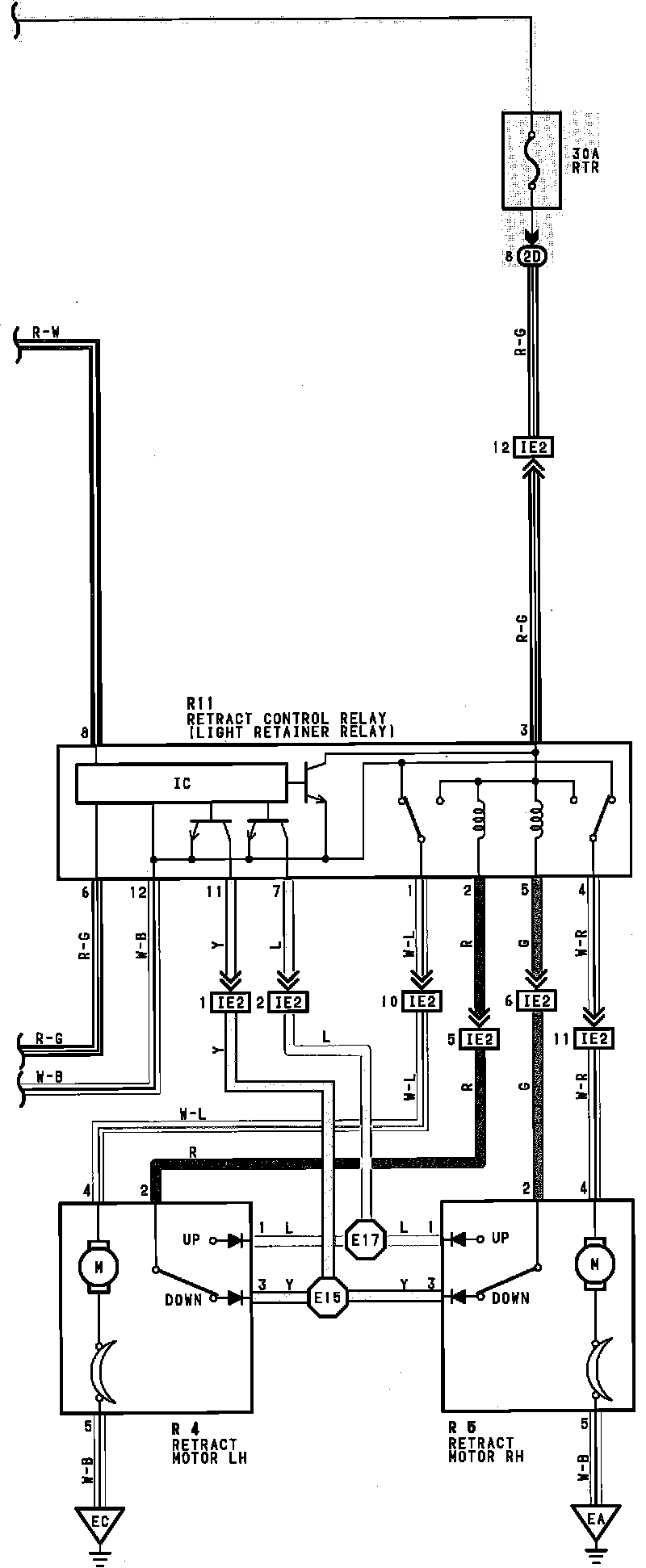

Part 1 Of 2 (Coupe):



Part 2 Of 2 (Coupe):
