Front Differential

FRONT DIFFERENTIAL

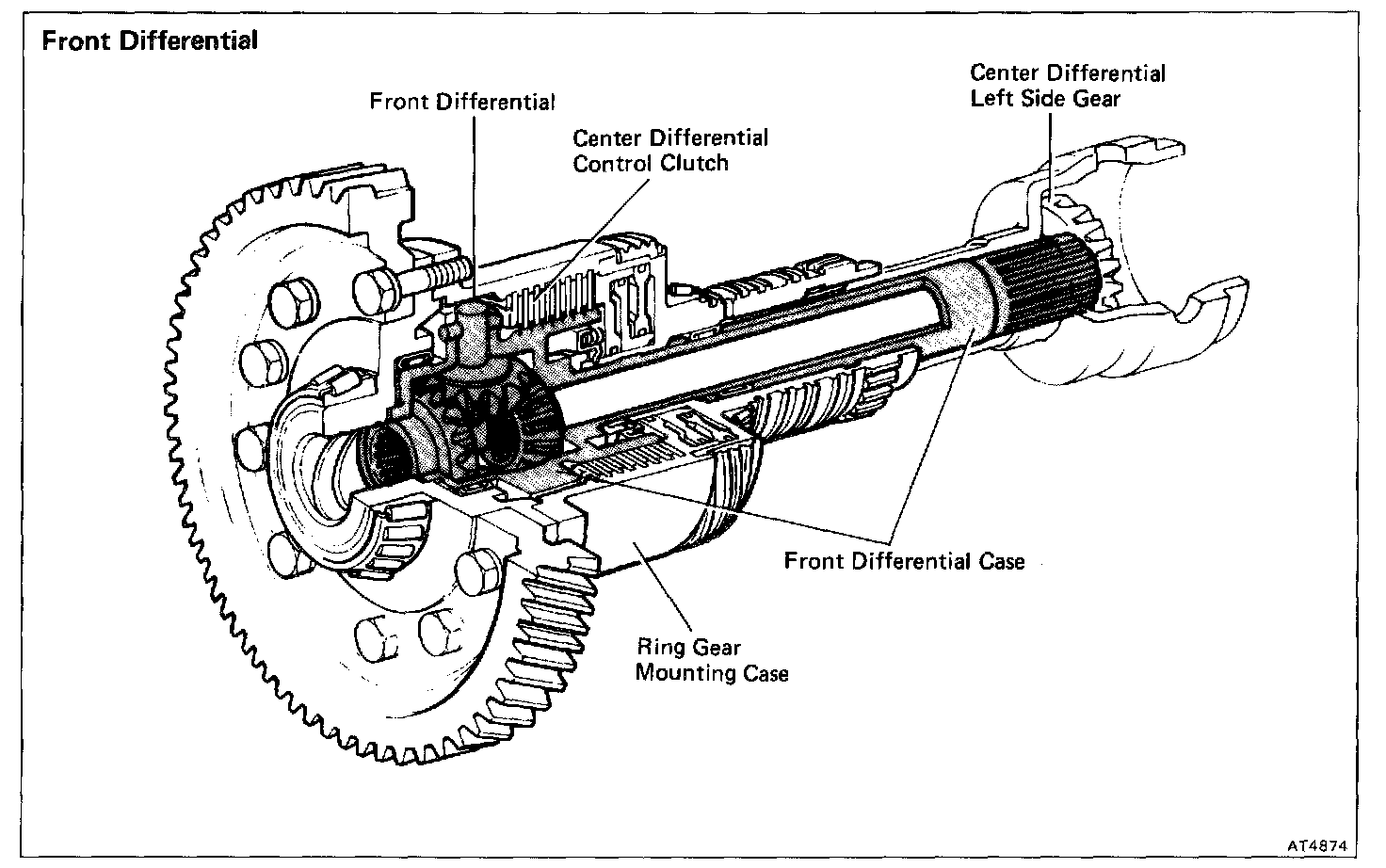

The front differential is incorporated in the ring gear mounting case. The right edge of the front differential case is integrated with center differential left side gear. The center differential control clutch is joined to the outside of the front differential case.
