Output Shaft Oil Seal (A241H)

Output Shaft Oil Seal (A241H)

REPLACEMENT OF OUTPUT SHAFT OIL SEAL
1. DRAIN TRANSFER OIL
2. REMOVE PROPELLER SHAFT

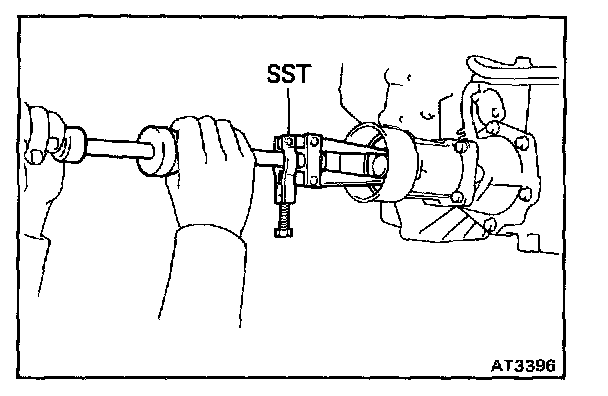

3. REMOVE OUTPUT SHAFT OIL SEAL Using SST, remove the oil seal.

SST 09308-00010




4. INSTALL OUTPUT SHAFT OIL SEAL

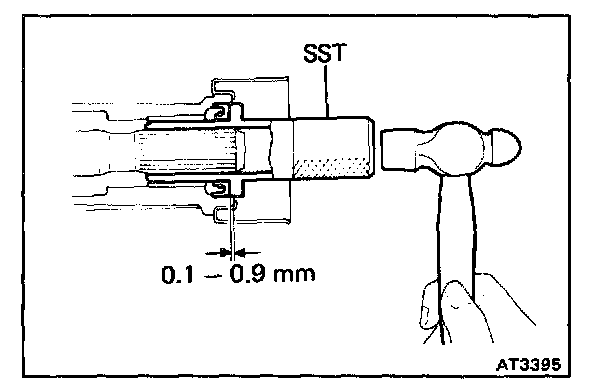

Using SST, drive in a new oil seal.

SST 09325-20010

Oil seal depth: 0.1 - 0.9 mm (0.004 - 0.035 in.)

5. INSTALL PROPELLER SHAFT
6. FILL TRANSFER WITH TRANSAXLE OIL Preliminary Check
