With A241H Automatic Transaxle





REMOVAL AND INSTALLATION OF ENGINE
(Refer to Engine; Service and Repair)

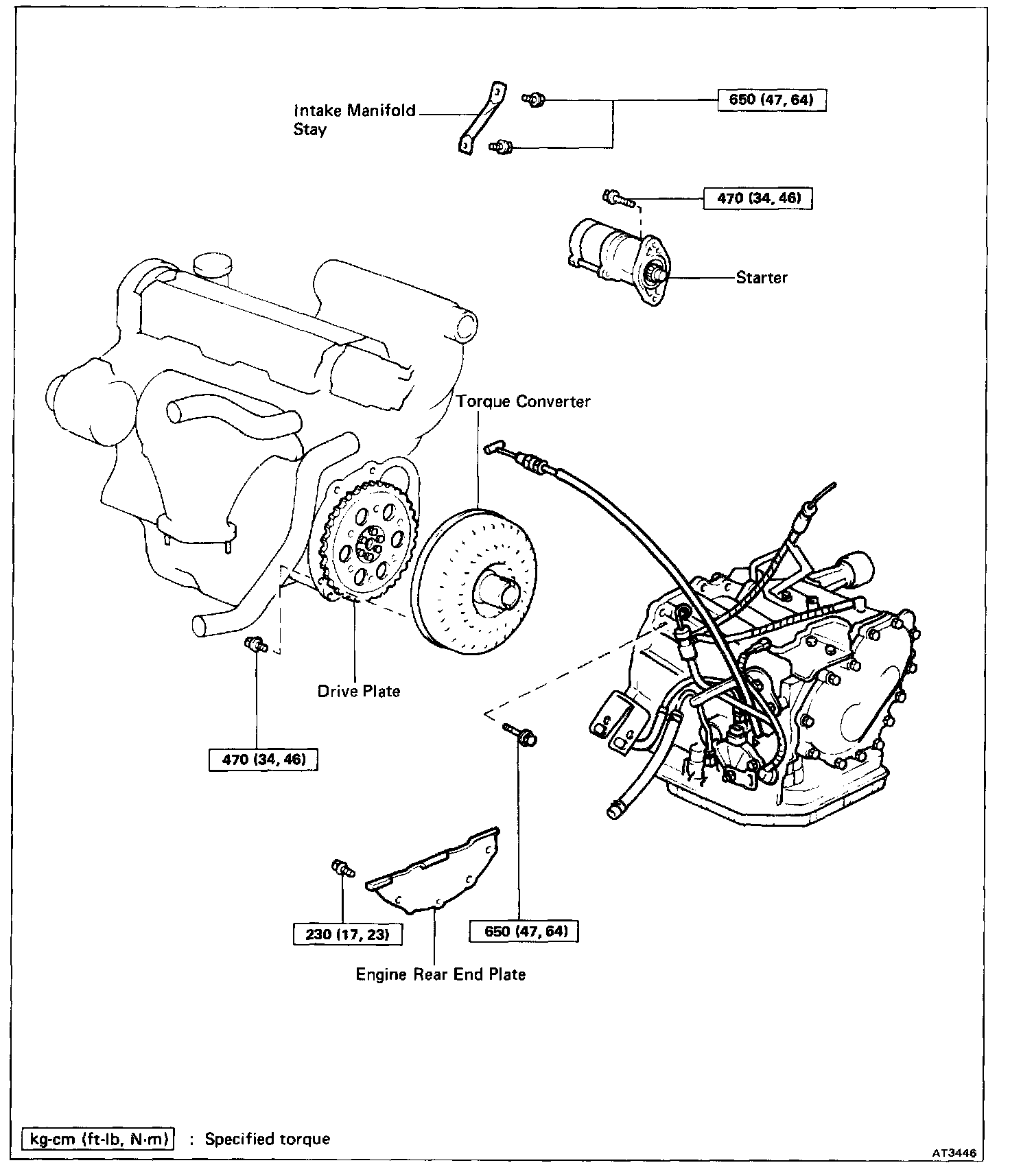

REMOVAL AND INSTALLATION OF TRANSAXLE
(Remove and install transaxle as shown)
