Manual Transmission/Transaxle: Description and Operation

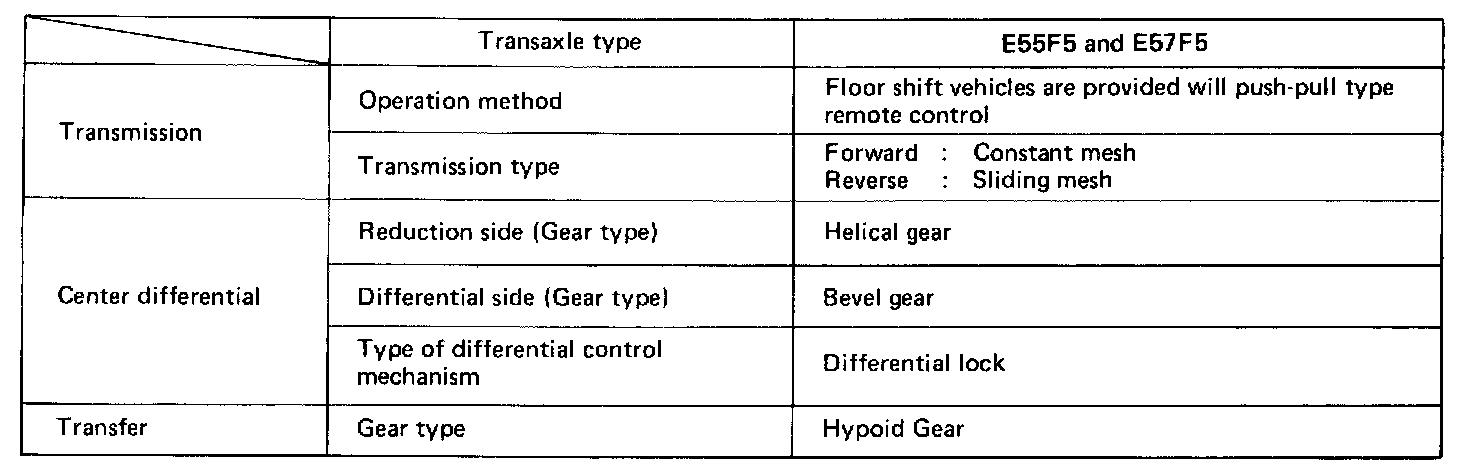

E55F5 And E57F5 Transaxle:

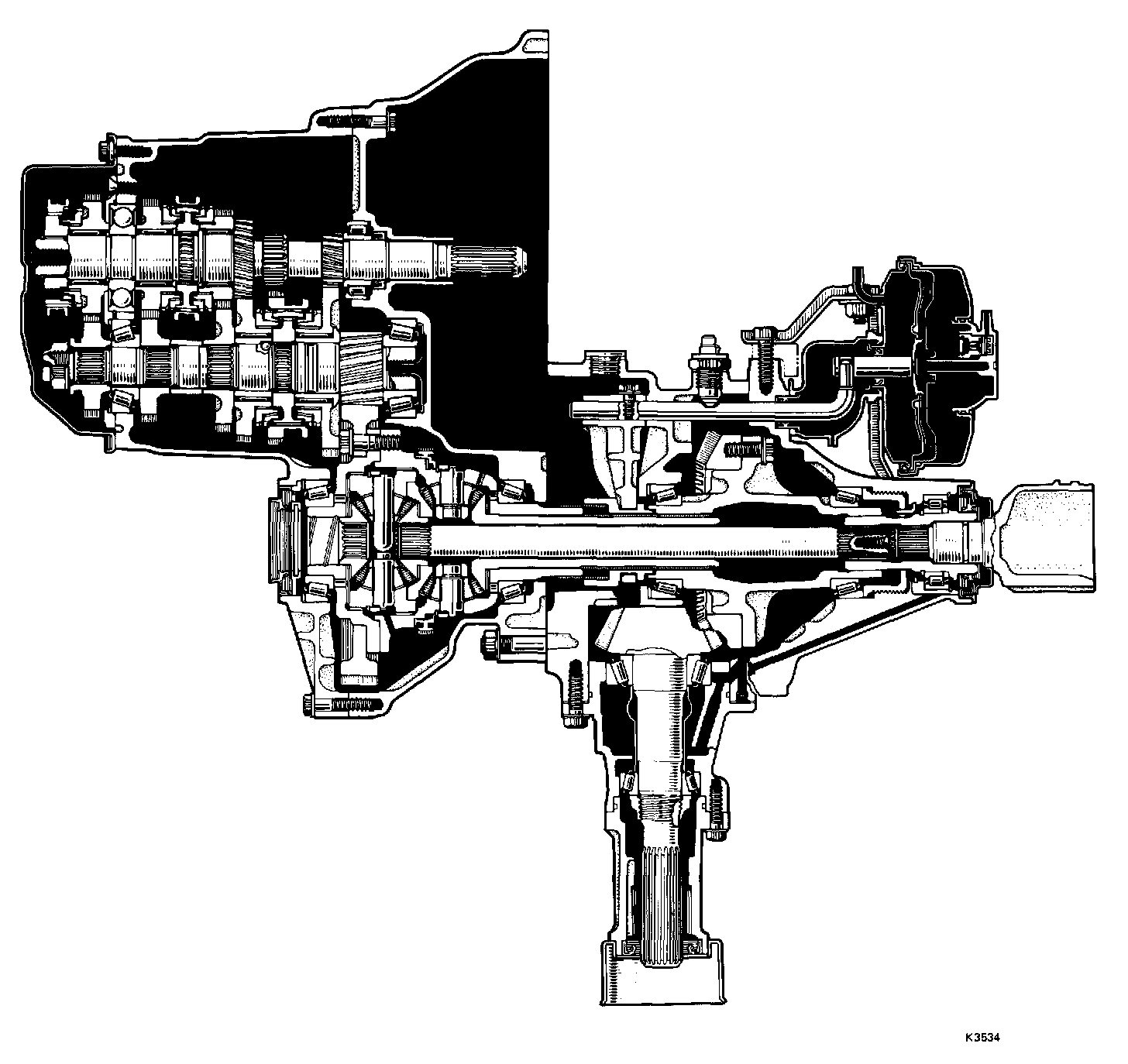

- The E55F5 and E57F5 transaxle has been made compact by arranging the transmission, the center differential, the front differential and the transfer on the same quadruple case axle.
- The center differential, which compensates for the difference between the rotation speed of the front and rear wheels, provide durability and reliability by utilizing bevel gear to distributing the engine power from the transmission to both the front and rear propeller shafts in a 50/50 split. This center differential has been equipped with a lock mechanism which enables the vehicle to get out of the trouble spot more easily when one of the four wheels spins in the deep snow or muddy roads, etc.




- The illustrations show the power transmission train.

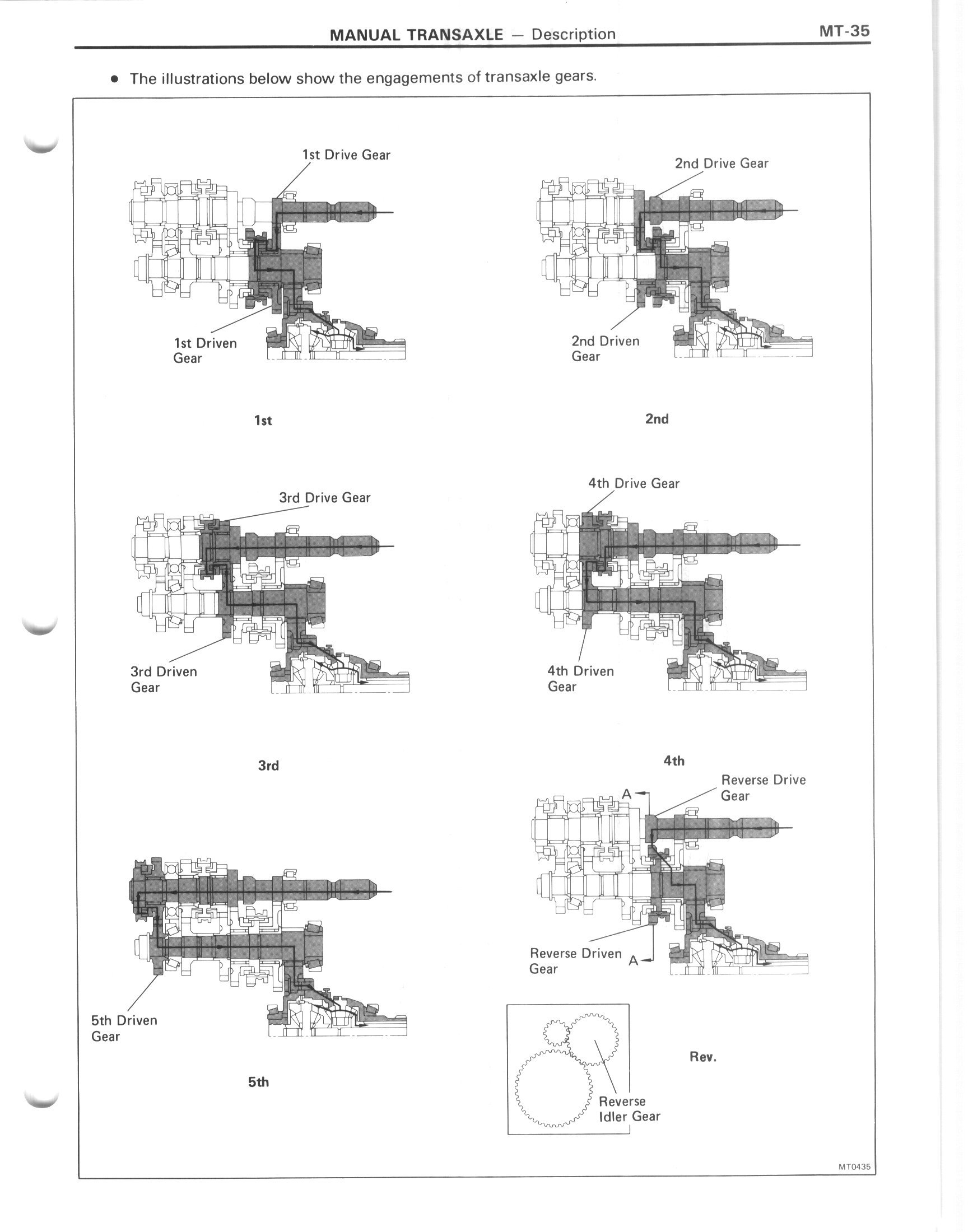

- The illustrations show the engagements of transaxle gears.




- The oil used in each transaxle is as follows:
Transaxle oil E50 (08885-80206)
Recommended oil
Oil grade: API GL-5
Viscosity:
Above -18°C (0°F) SAE75W-90, 80W-90 or 90
Below -18°C (0°F) SAE75W-90, 80W-90 or 80W

Oil capacity: 5.0 liters (5.3 US qts, 4.4 Imp. qts)

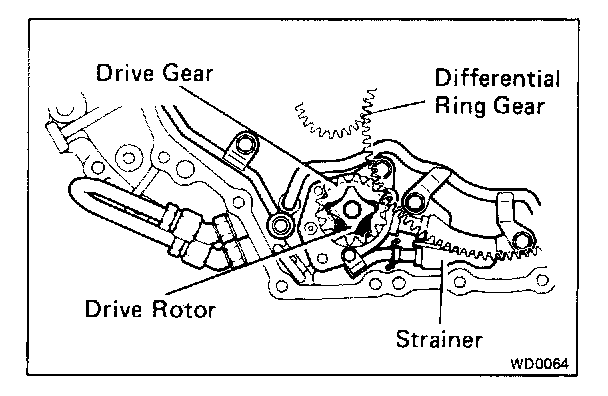

OIL PUMP



- The oil pump is of the trochoid type, and is driven by the differential ring gear and the pump drive gear. It is located at the bottom of the transaxle case.

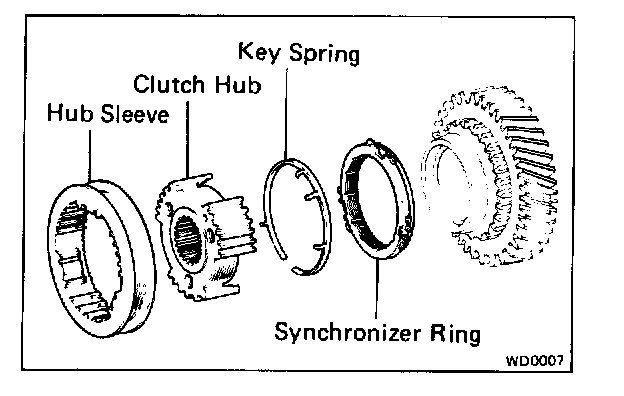

KEY-LESS TYPE SYNCHROMESH FUNCTION



- HUB SLEEVE
There are three protrusions on the inside of the hub sleeve to push the key spring.
- CLUTCH HUB
Three apertures are located around the clutch hub to secure the synchronizer ring and key spring in place.
- KEY SPRING
The key spring has four claws. One claw is to secure the key spring in place. Three claws also act as shifting keys as well as key springs.
- SYNCHRONIZER RING
A chamfered ledge is provided at three points along the outer periphery and a slot is provided in each to secure a key spring.
