Home >> Toyota >> 1990 >> Corolla Wagon 4WD L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> With E55F5 and E57F5/4WD >> Exploded Views

Exploded Views

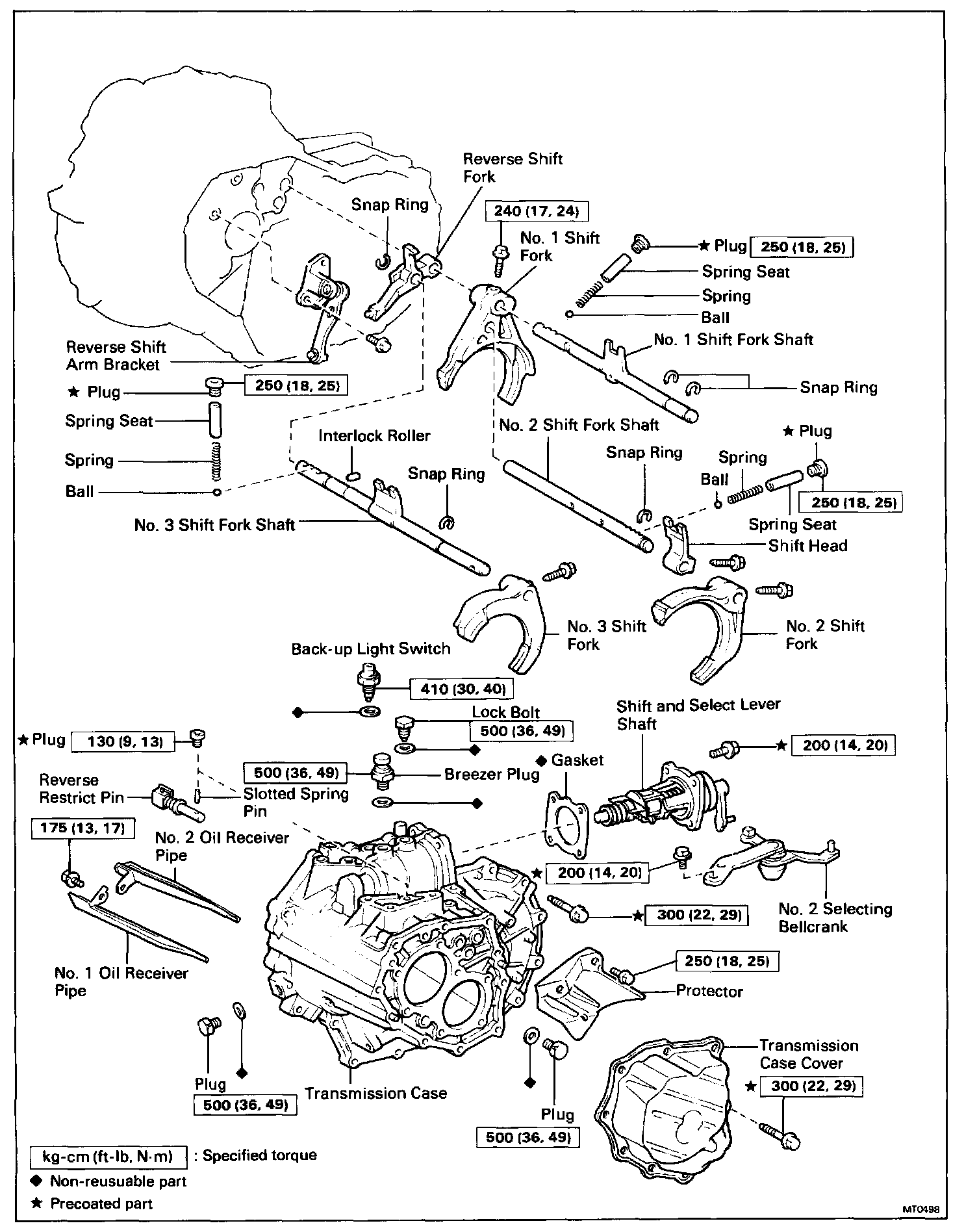

Part 1:

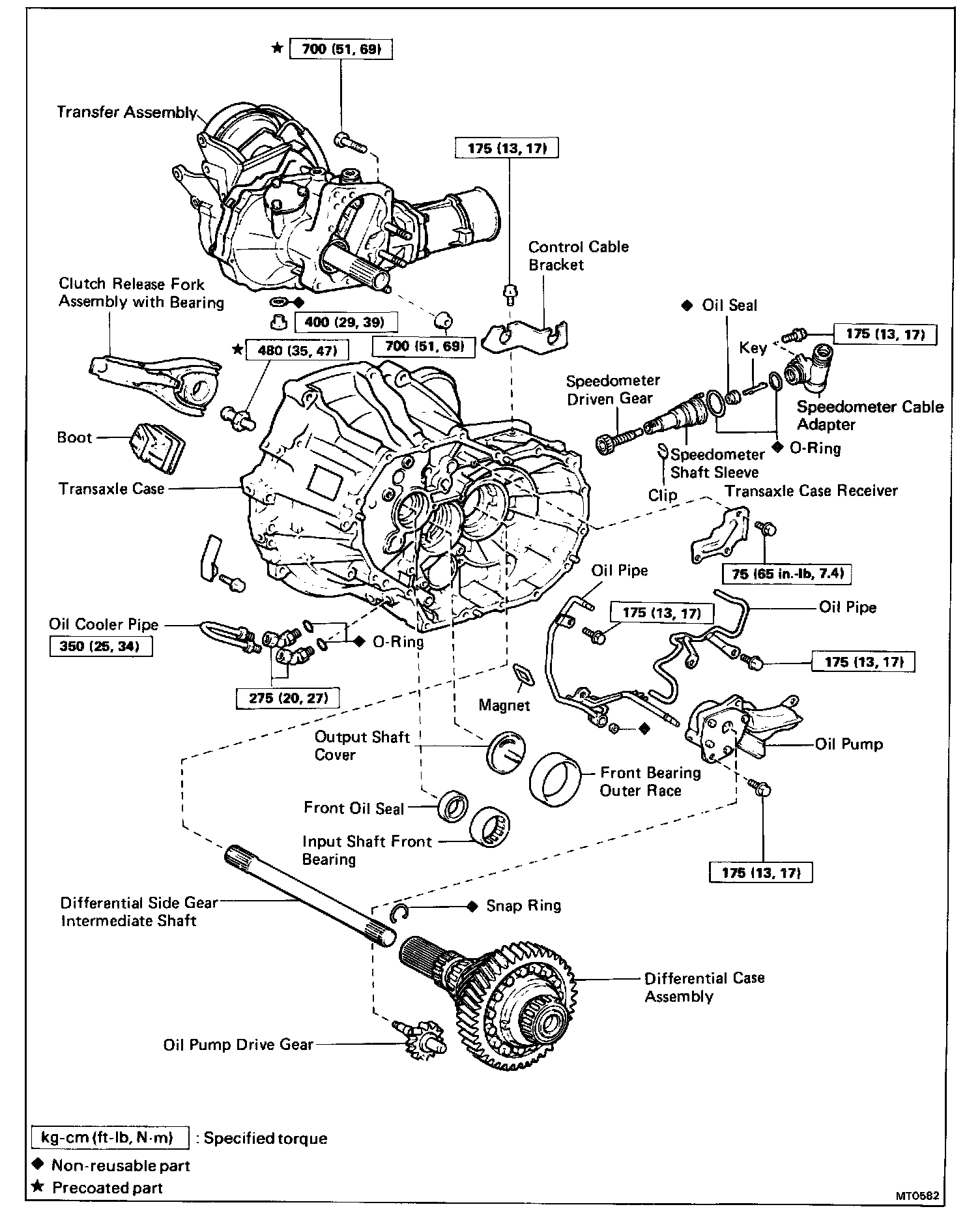

Part 2:

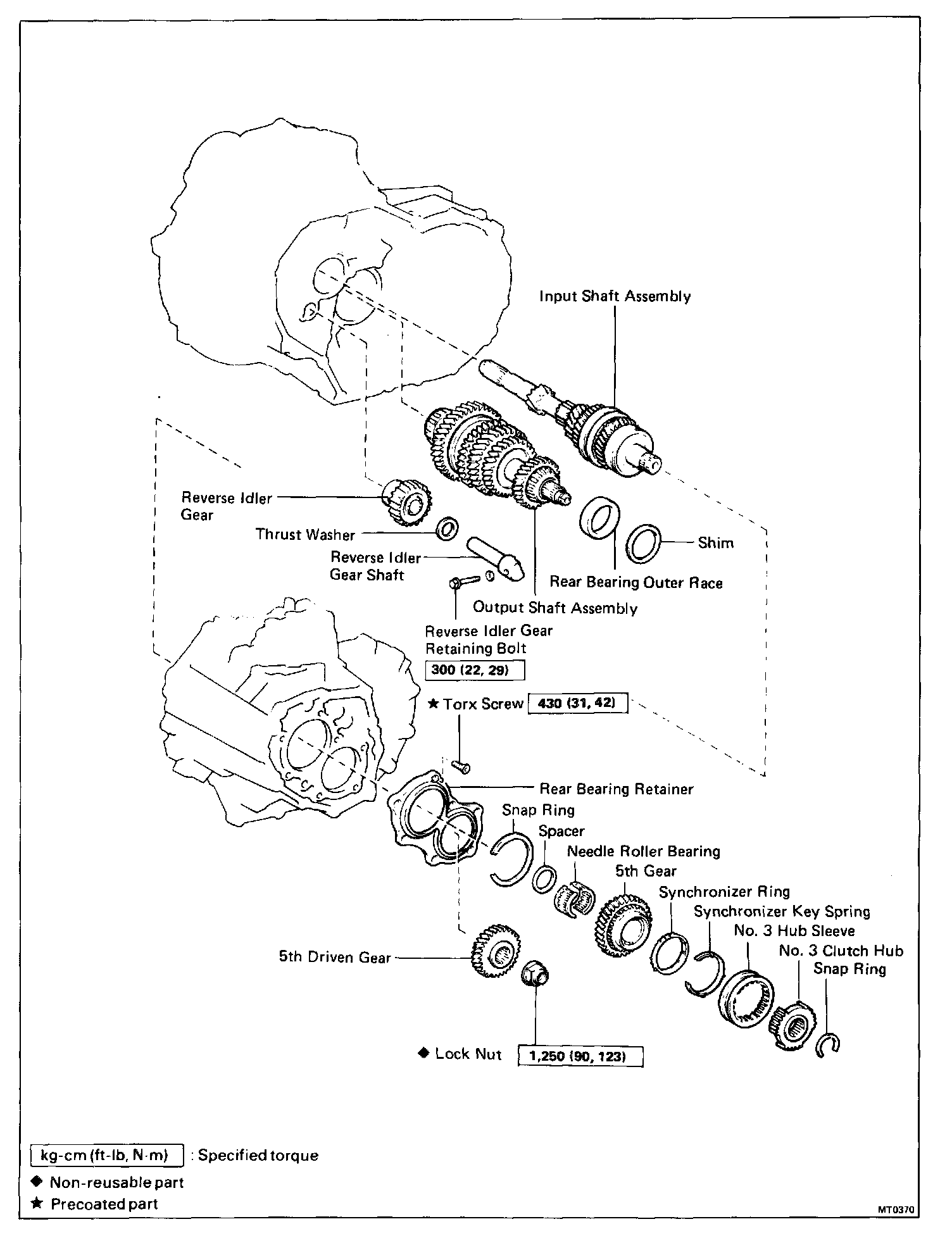

Part 3:
