Engine Control System

Part 1 of 2




Part 2 of 2

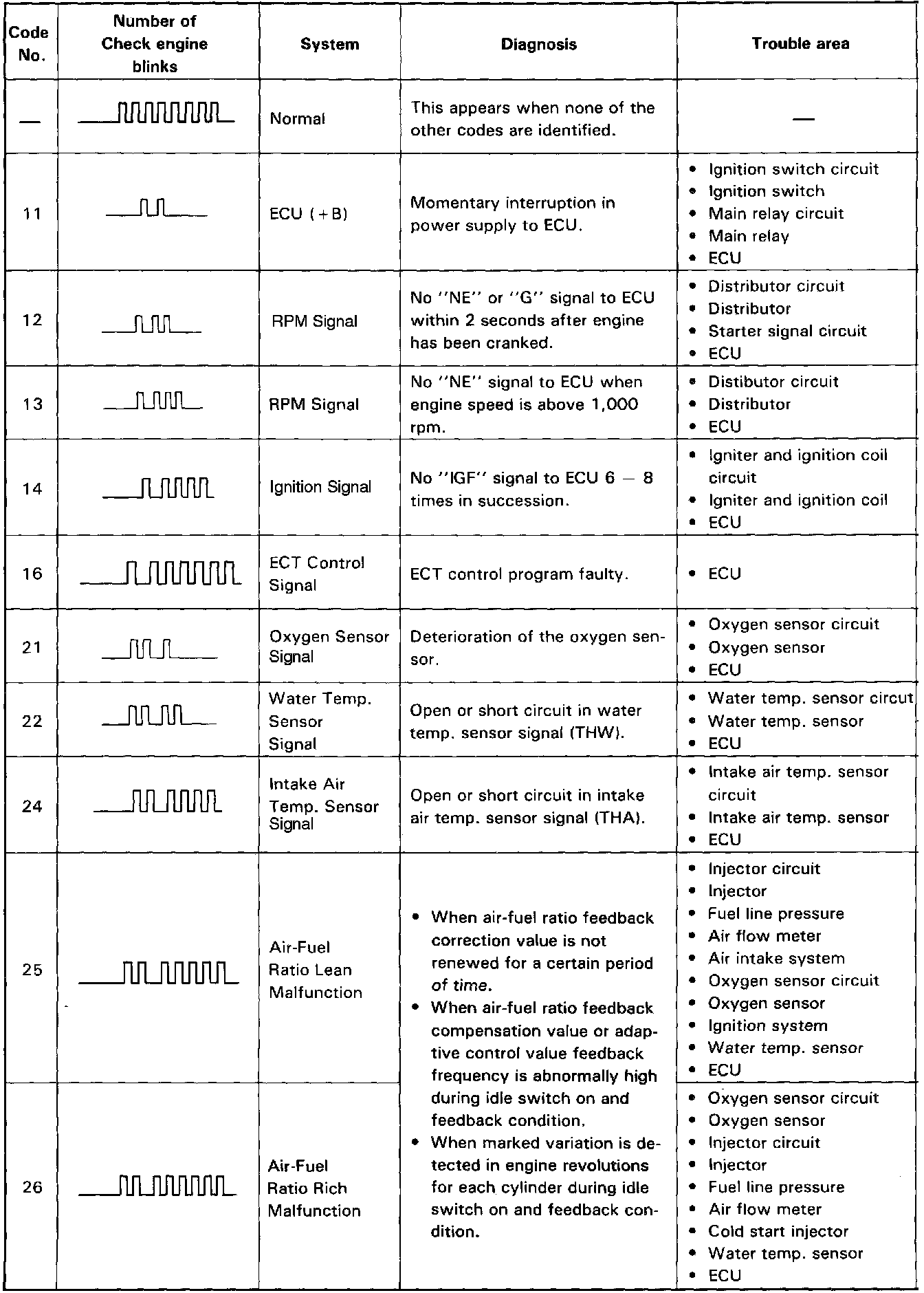

TROUBLE CODE DESCRIPTIONS

NOTE: Toyota does not provide trouble code driven diagnostic procedures for this vehicle. For information regarding diagnostic procedures, please refer to Non-Trouble Code Diagnostic Procedures.

Component Tests and General Diagnostics





Trouble Code Reference Index:


Code 11 - See Test No. 1
Code 12 - See Ignition System
Code 13 - See component testing and inspection
Code 14 - See component testing and inspection
Code 16 - See component testing and inspection
Code 21 - See component testing and inspection
Code 22 - See Test No. 6
Code 24 - See Test No. 5
Code 25 - See component testing and inspection
Code 26 - See component testing and inspection
Code 27 - See component testing and inspection
Code 31 - See Test No. 3
Code 32 - See Test No. 3
Code 41 - See Test No. 2
Code 42 - See component testing and inspection
Code 43 - See Test No. 7
Code 51 - See component testing and inspection
Code 52 - See component testing and inspection
Code 53 - See component testing and inspection
Code 71 - See component testing and inspection
