Front Door Key Lock and Unlock Switch Circuit

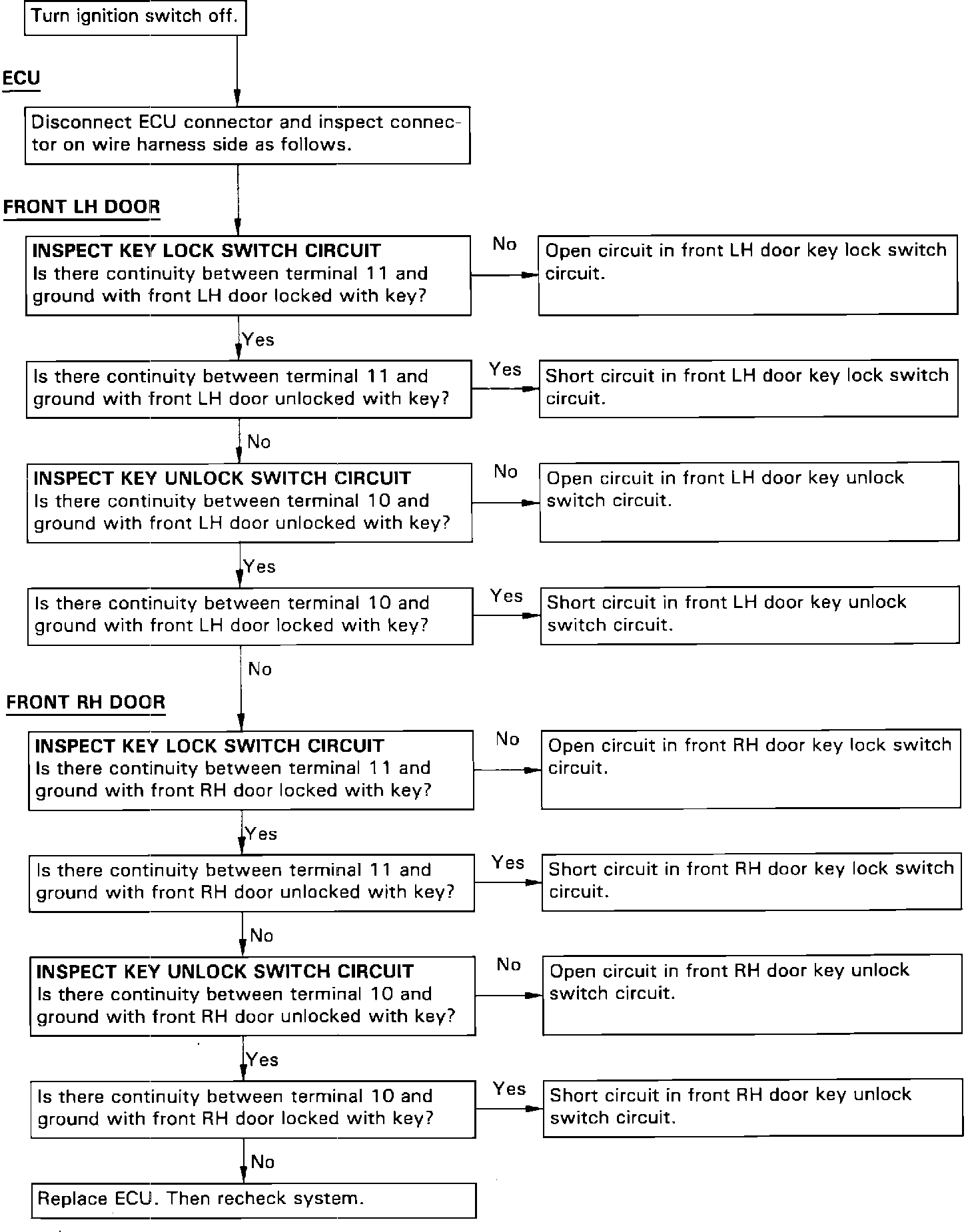

Front Door Key Lock & Unlock Switch Circuit Inspection:
