Home >> Toyota >> 1990 >> Cressida L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> System Circuit Inspections >> Power Source Circuit

Power Source Circuit

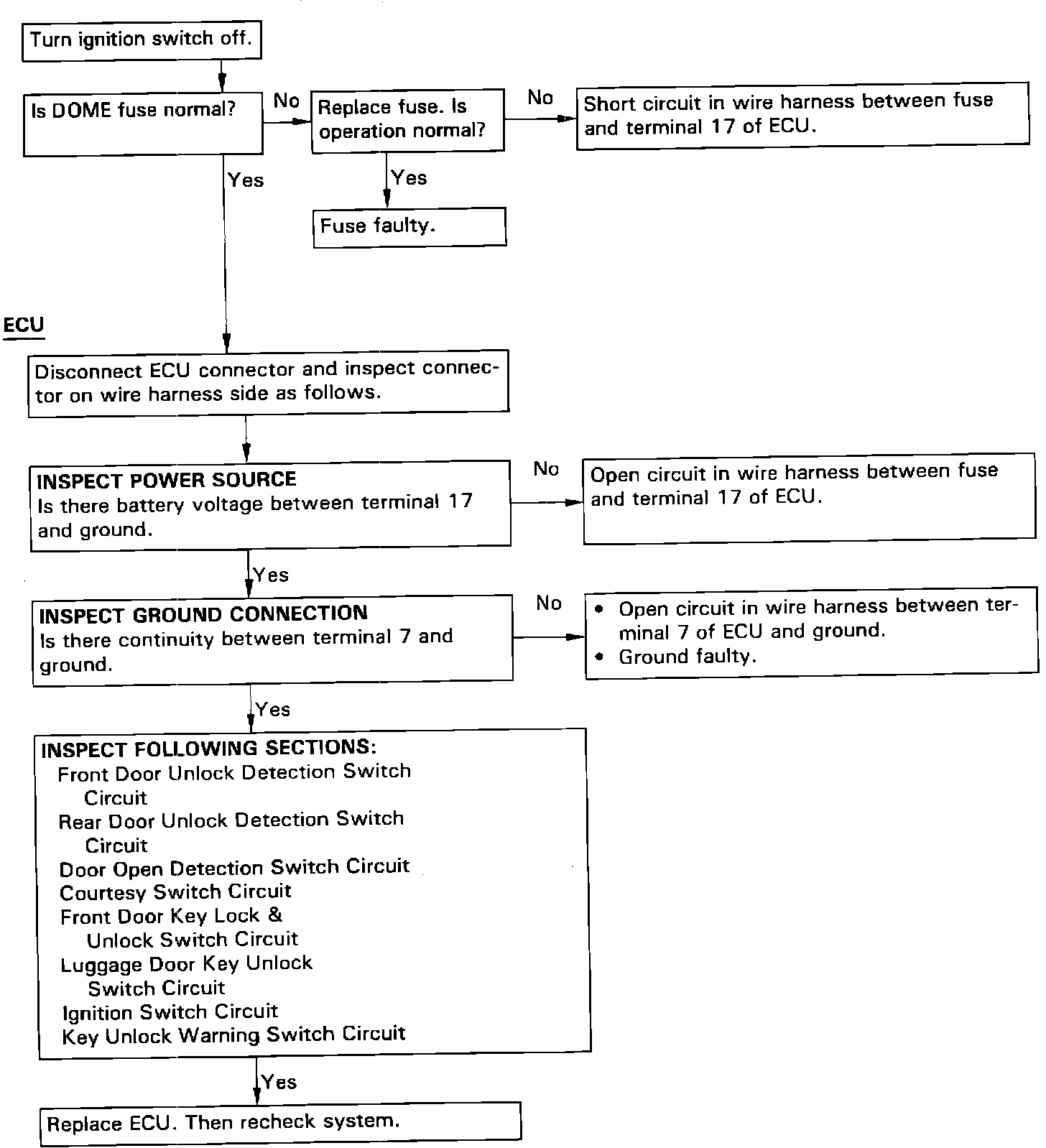

Power Source Circuit Inspection:
