Taillight Control Relay

Taillight Control Relay Testing:

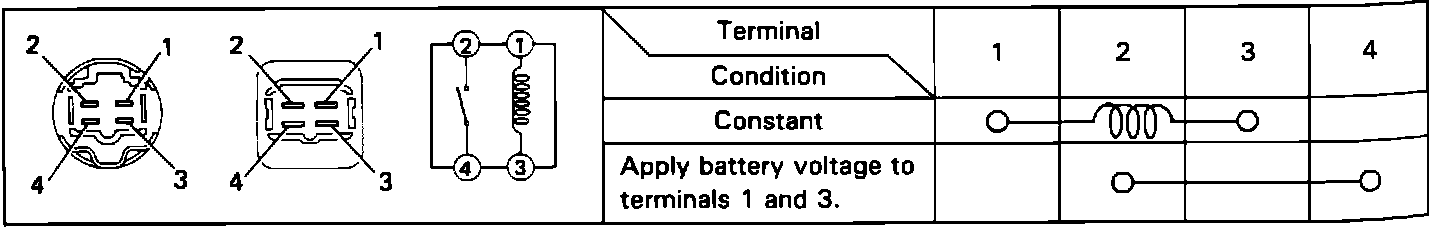

1. Check relay as described on image chart.
2. If not as specified, replace relay.
