Symptom Related Diagnostic Procedures

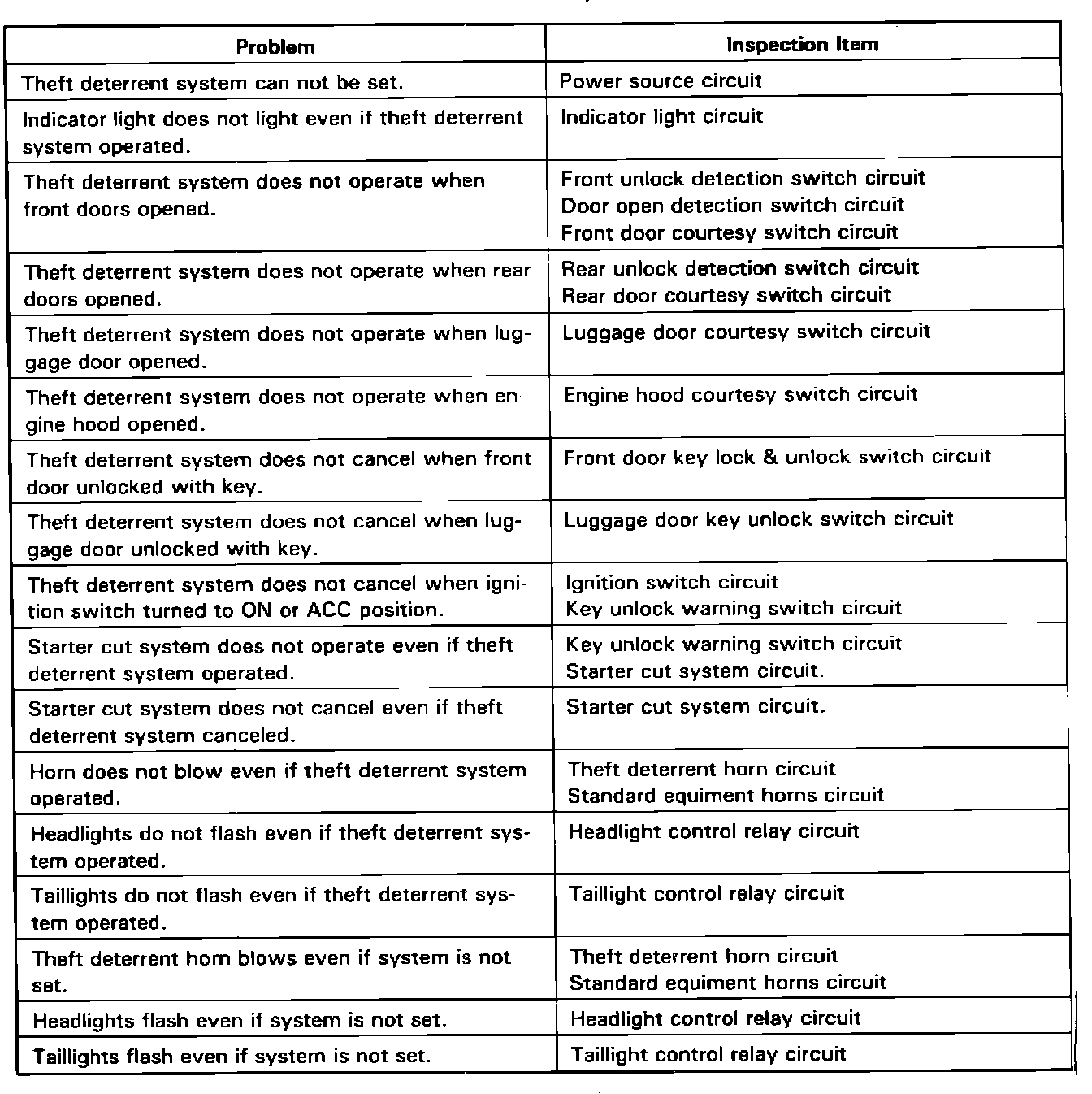

Troubleshooting Chart:

1. Check that operation of other systems (door lock control, automatic shoulder belts, etc.) is normal.
2. When system is not operating, lower door glass (to gain access with doors shut) and confirm under what conditions system either fails to operate or malfunctions.
