Clearing Trouble Codes

CLEARING OF DIAGNOSTIC CODES

CLEAR DIAGNOSTIC CODES
a. Turn the ignition switch on.

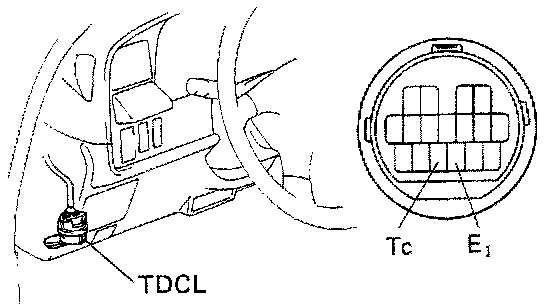

b. Using SST, connect the terminals Tc and E1 of the TDCL. SST 09843-18020

HINT: Keep the vehicle stopped vehicle speed 0 km/h (0 mph).

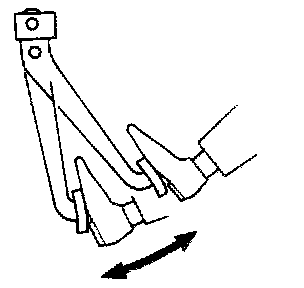

c. Clear the diagnostic codes stored in computer by depressing the brake pedal 8 or more times within 3 seconds.

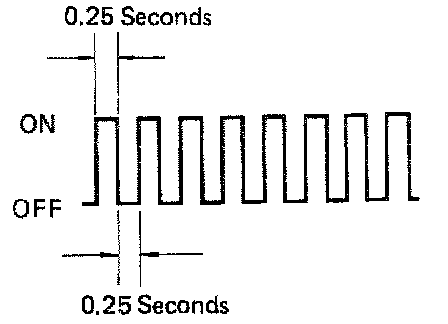

d. Check that the warning light shows the normal code.




e. Remove the SST from the terminals Tc and E1 of the TDCL.




f. Check that the warning light goes off.
