Displaying & Reading Trouble Codes

INITIAL CHECK

CHECK ACTUATOR OPERATION NOISE
a. Start the engine and drive at a speed over 6 km/h 4 mph.
b. Check that the actuator operation noise is heard.

HINT: A initial check is carried out once each time after the engine has been started and initial speed exceeds 6 km/h 4 mph. The respective functions, in order, of the 3 position solenoid and pump motor in the actuator are checked. However, if the brake pedal is depressed, the initial check is not carried out.

INSPECTION OF DIAGNOSIS SYSTEM

1. INSPECT BATTERY VOLTAGE
Inspect that the battery voltage is about 12 V.




2. CHECK THAT WARNING LIGHT TURNS ON
a. Turn the ignition switch on.
b. Check that the "ANTILOCK" warning light turns on for 3 seconds.
If not, inspect and repair or replace the fuse, bulb and wire harness.

3. READ DIAGNOSTIC CODE
a. Remove the air cleaner.
b. Turn the ignition switch on.

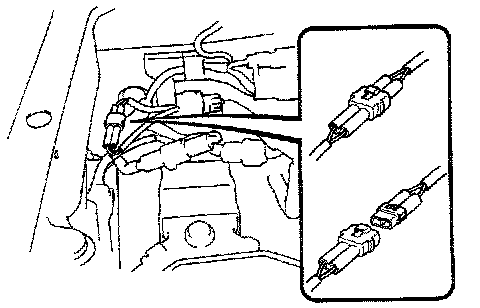

c. Disconnect the check connector from the actuator

HINT: When the ANTILOCK warning light does not light up, it is necessary to disconnect the check connector from the actuator.

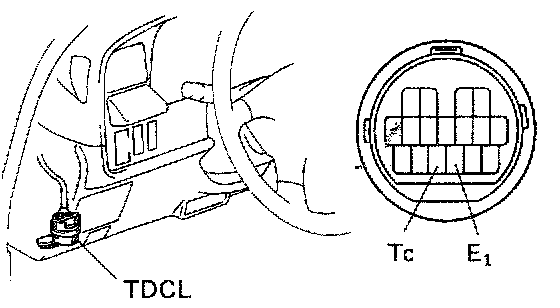

d. Using SST, connect the terminals Tc and E1 of the TDCL. SST 09843-18020

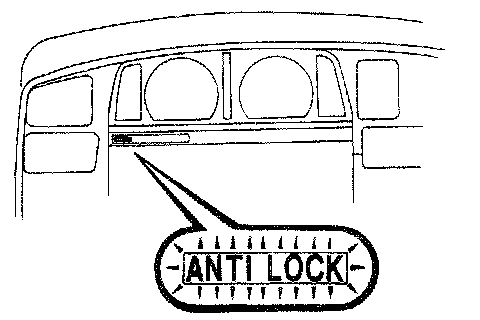

e. In event of a malfunction, 4 seconds later the warning light will begin to blink. Read the number of blinks. See DIAGNOSTIC CODE.

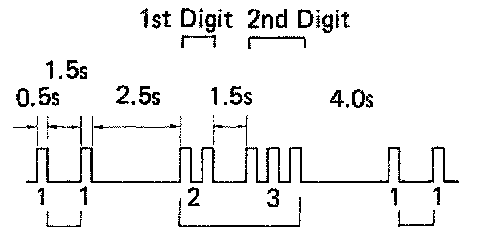

HINT: The first number of blinks will equal the first digit of a two digit diagnostic code. After a 1.5 second pause, the 2nd number of blinks will equal the 2nd number of a two digit code. If there are two or more codes, there will be a 2.5 second pause between each, and indication will begin after 4.0 second pause from the smaller value and continue in order to larger.

f. If the system is operating normally no malfunction, the warning light will blink 2 times per second.
g. Repair the system.
h. After the malfunctioning components has been repaired, clear the diagnostic codes stored in the computer.

HINT: If you disconnect the battery cable while repairing, all diagnostic codes in the computer will erased.

i. Remove the service wire from the terminals Tc and E1 of the TDCL.




j. Connect the check connector.
k. Turn the ignition switch on, and check that the "ANTILOCK" warning light goes off after the warning light goes ontor 3 seconds.
l. Install the air cleaner.
