Removal and Installation

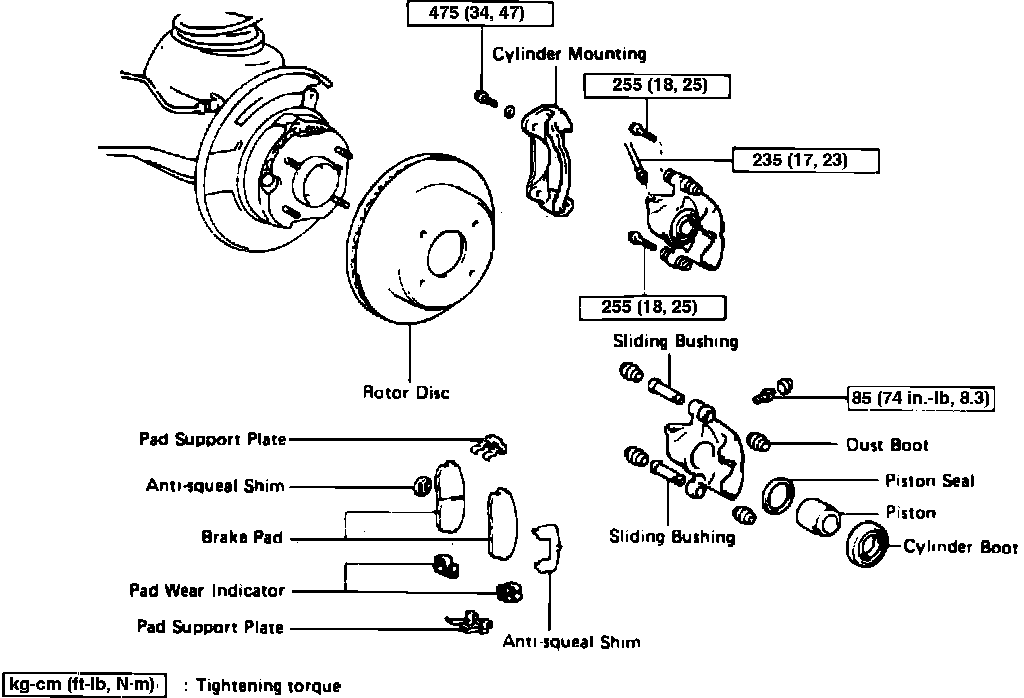

Fig. 5 Exploded View Of Rear Disc Brake Caliper Assembly.:

1. Raise and support rear of vehicle, then remove tire and wheel assembly.
2. Disconnect brake hose from brake tube and caliper using a suitable tool.
3. Remove caliper attaching bolts, then the caliper, Fig. 5.
4. Remove anti-squeal shims, brake pads with pad wear indicator, and pad support plates.
5. Reverse procedure to install, then bleed brake system.
