Heater

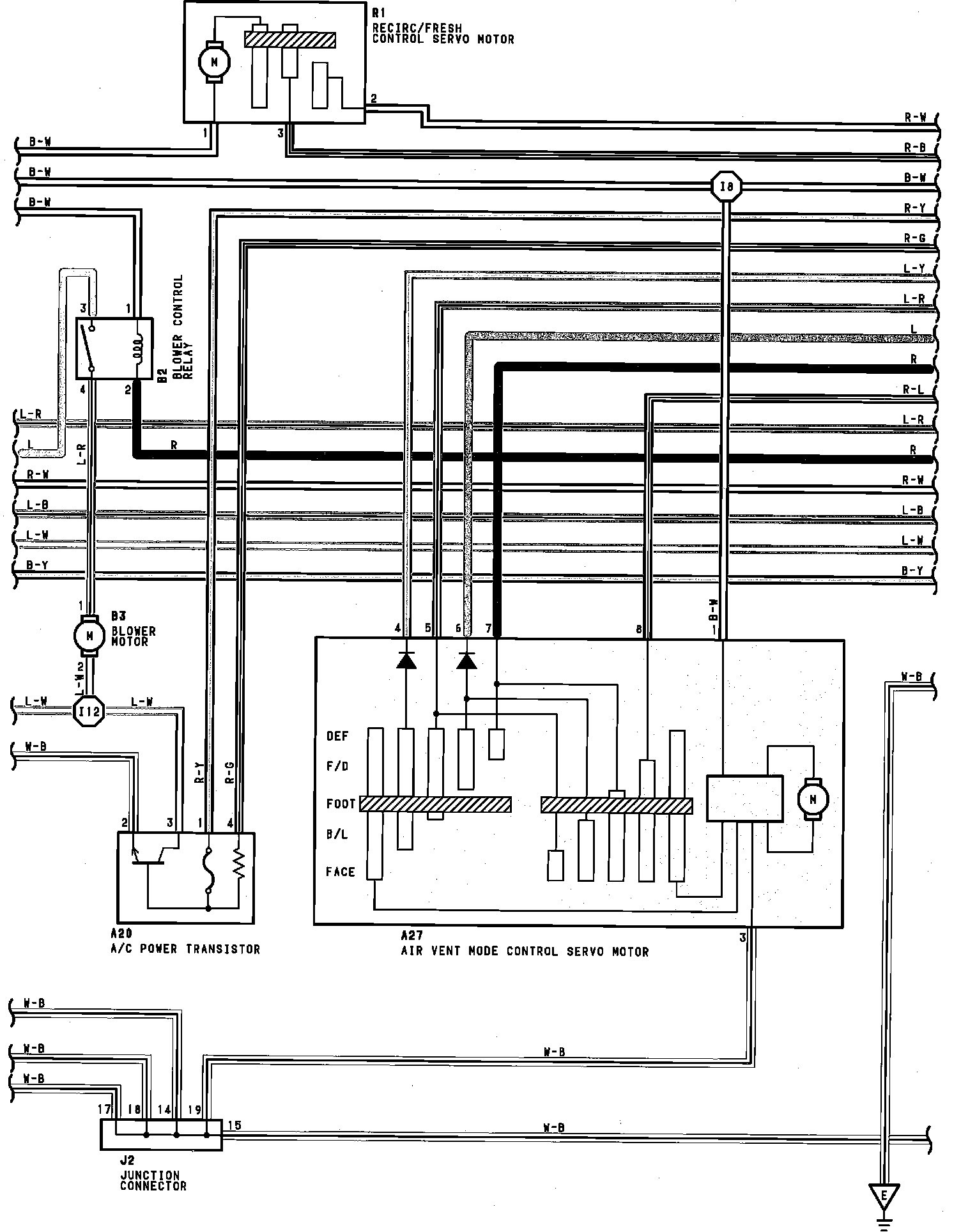

Automatic Air Conditioning:

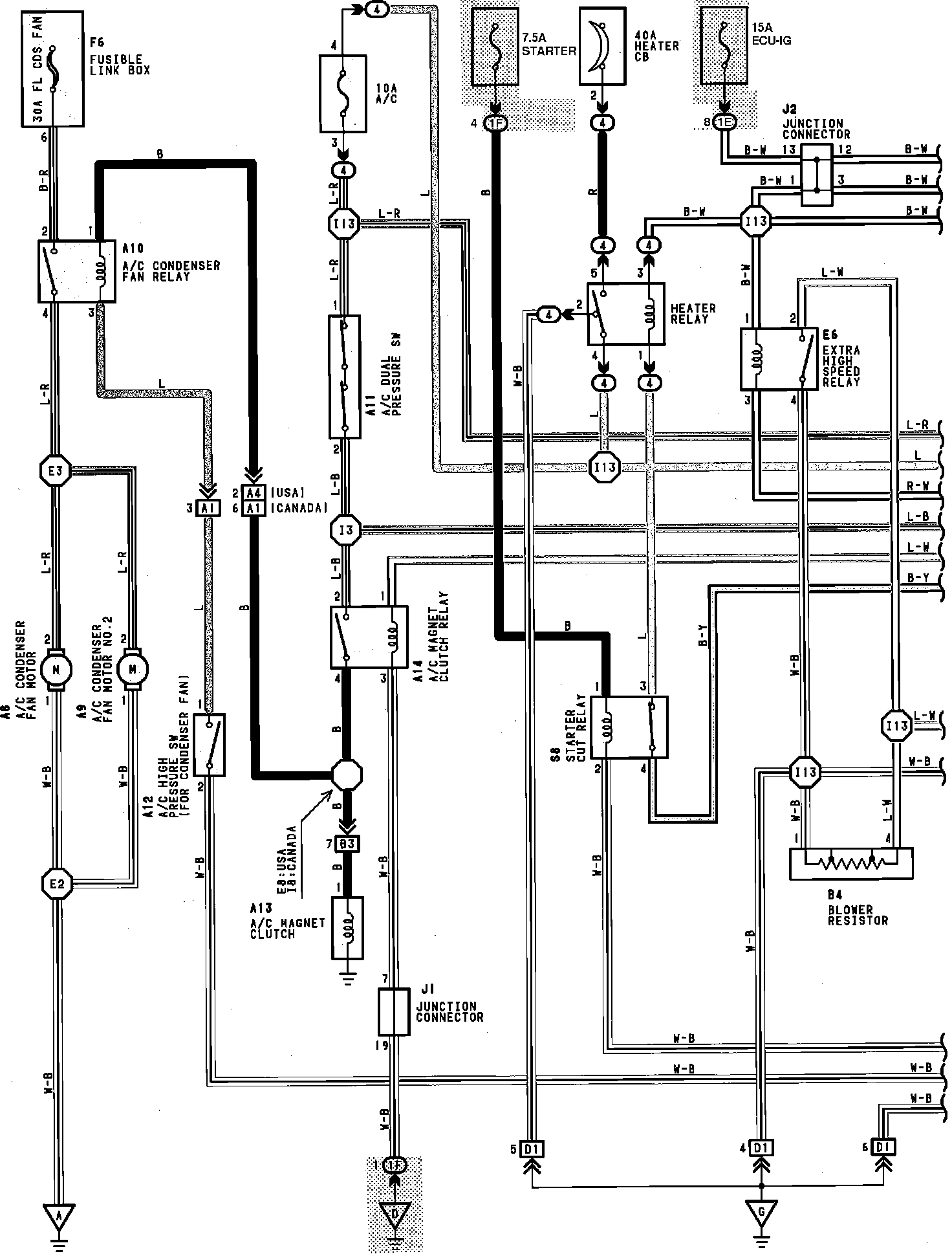

Automatic Air Conditioning:

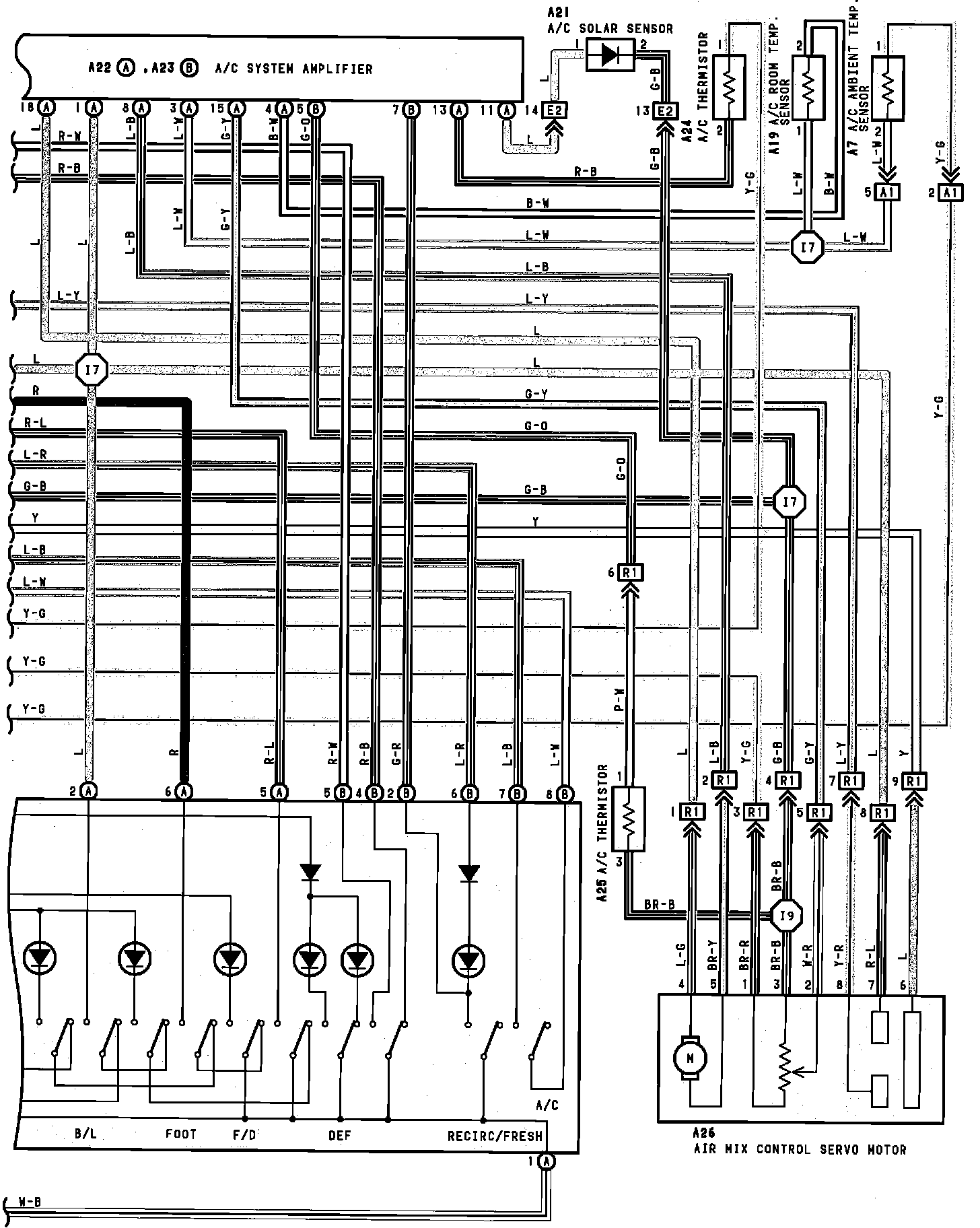

Automatic Air Conditioning:

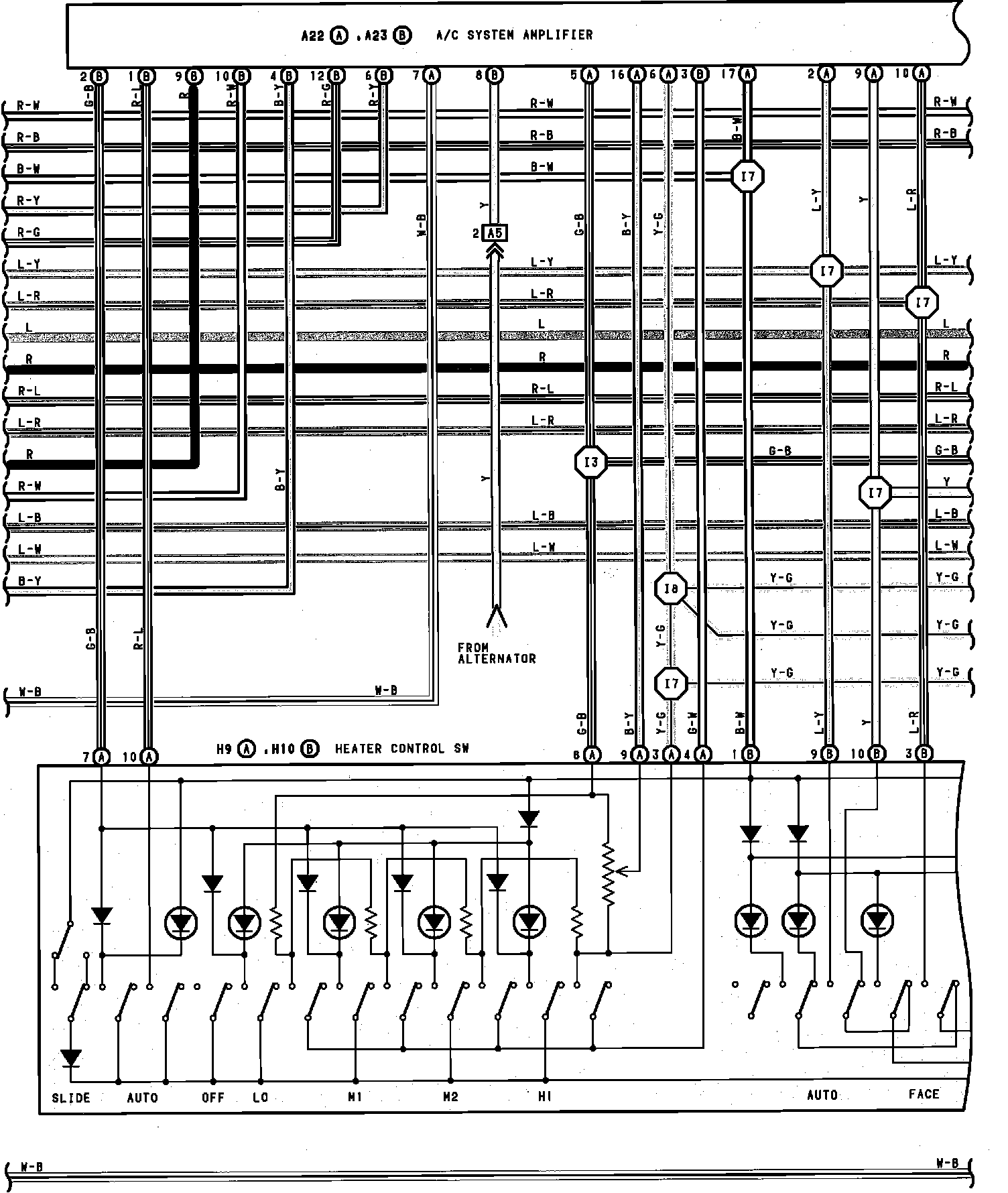

Automatic Air Conditioning:
