Number 2

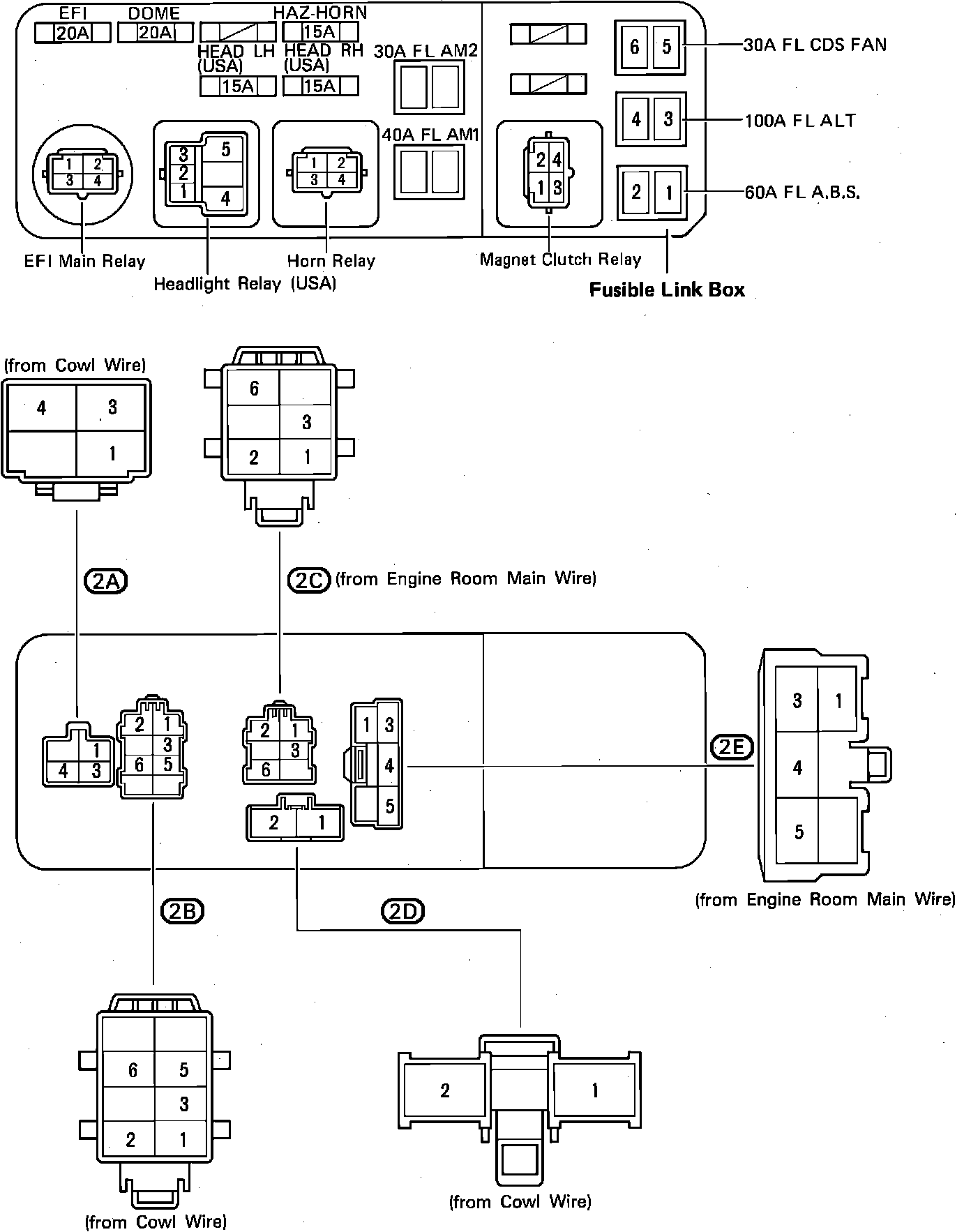

Fuse Panel Junction Block: No. 2 (Near The Battery):

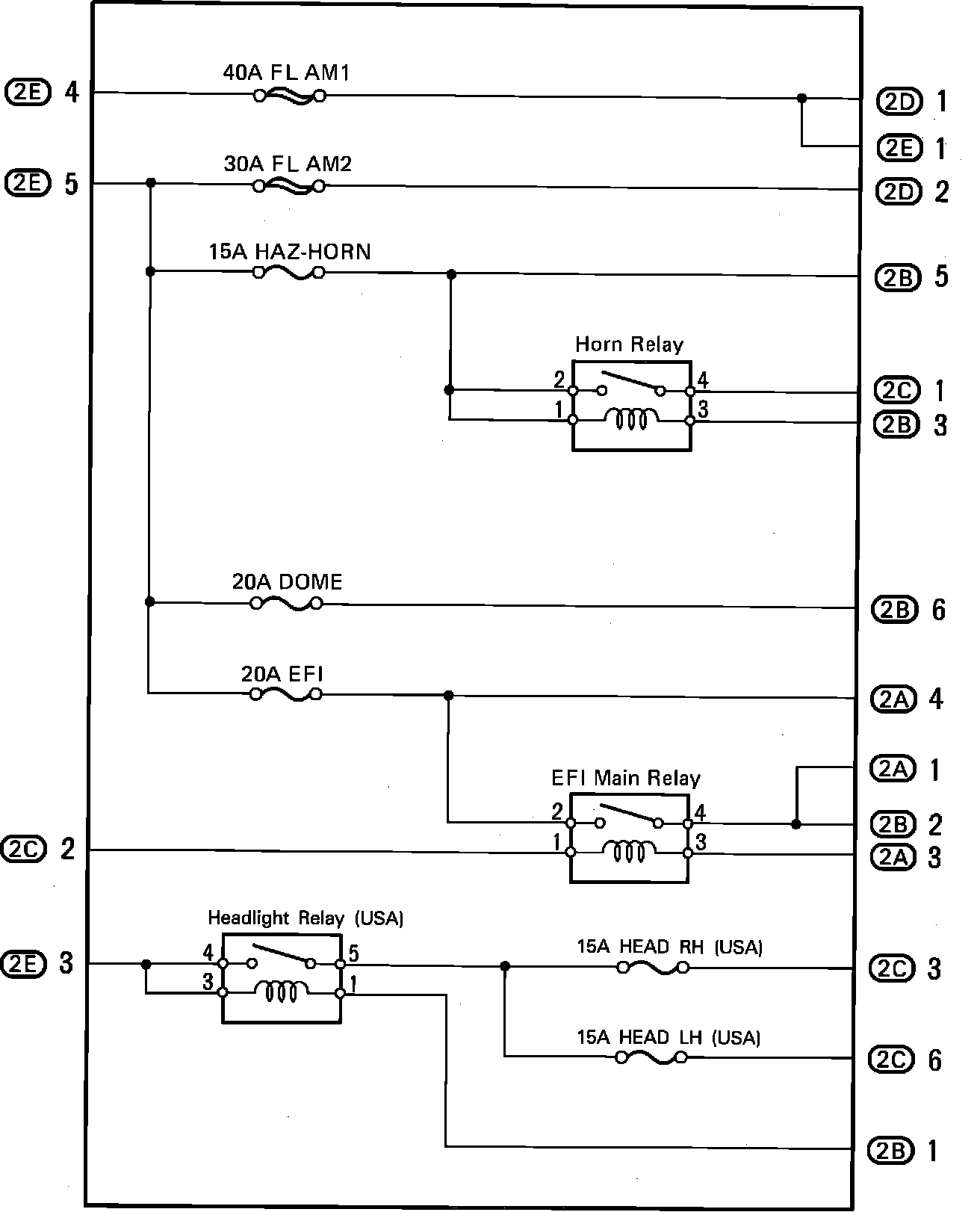

Fuse Panel Junction Block: No. 2 (Inner Circuit):
