Dashpot: Adjustments

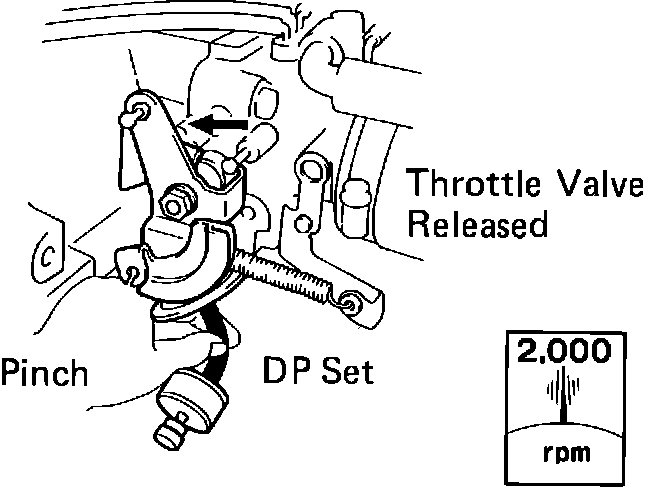

Fig. 15 Checking Dash Pot Setting Speed:

1. Warm up engine.
2. Check idle speed.
3. Maintain engine speed at 3,000 rpm.
4. Pinch the vacuum hose between the Dash-Pot (DP) and the Vacuum Transmitting Valve (VTV).
5. Release the throttle valve and check that the DP is set, Fig. 15

DP Setting Speed: 2,000 rpm

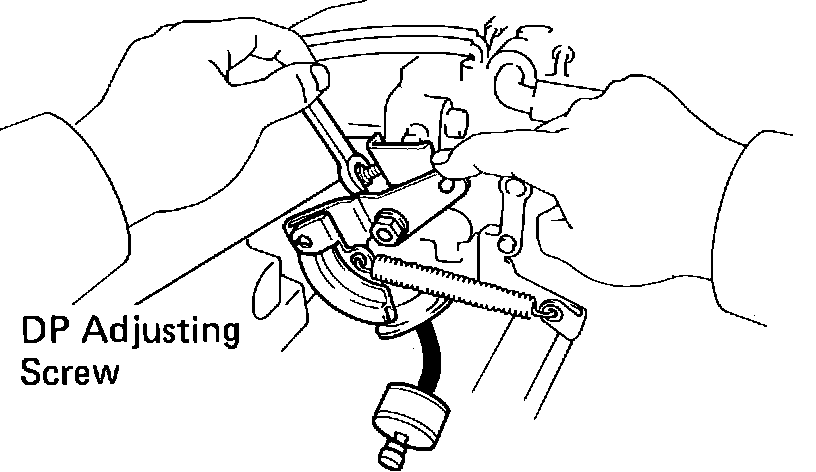

Fig. 16 Dash Pot Setting Speed Adjustment:

6. If not as specified, adjust with the DP adjusting screw, Fig. 16
7. Check operation of VTV
a. Set the DP speed in the same procedure as above.
b. Release the vacuum hose and check that the engine returns to idle in approx. 1 second.
