Home >> Toyota >> 1990 >> Cressida L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Starter Relay >> Locations

Starter Relay: Locations

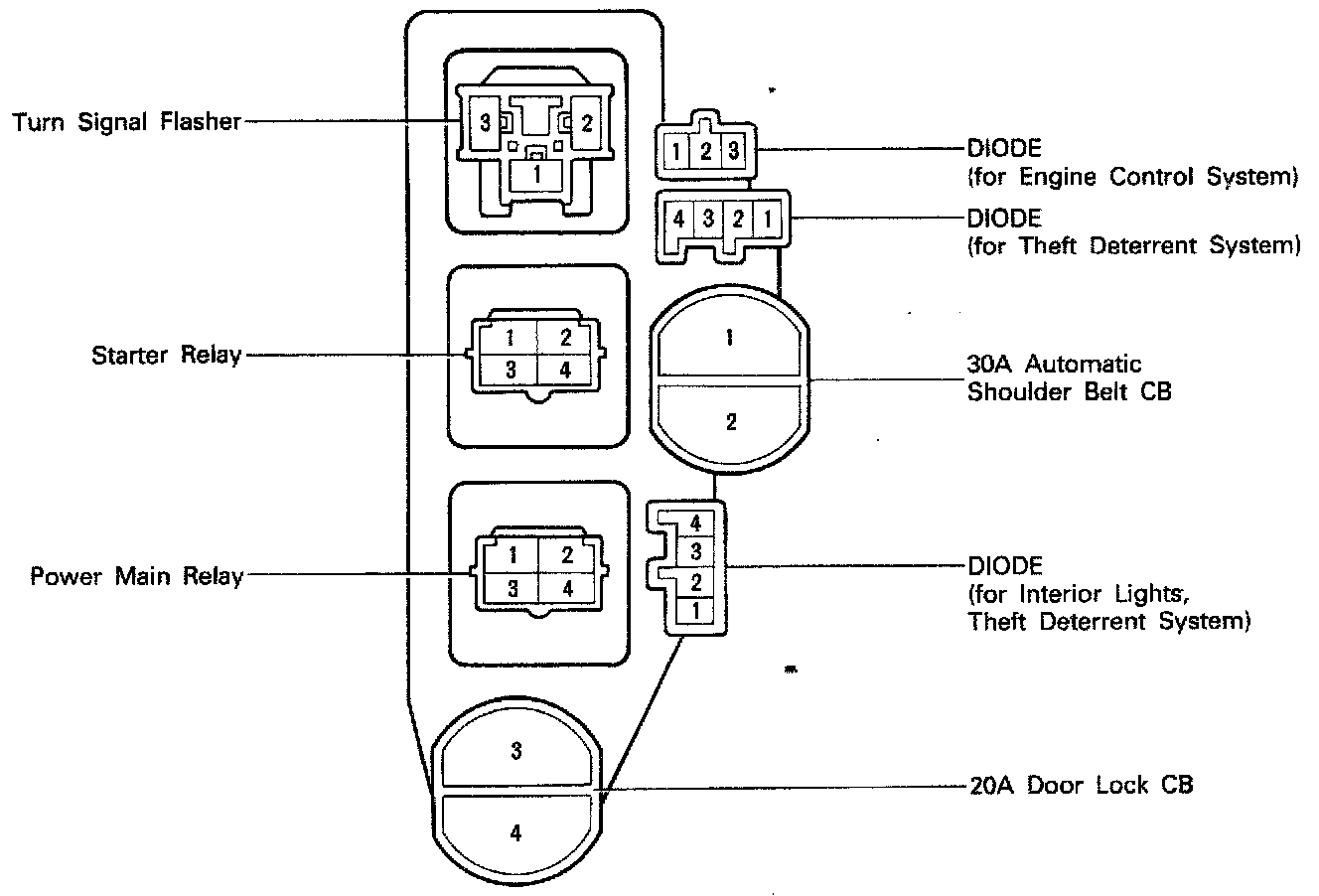

Relay Box #3, Left Kick Panel:
