Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
1990
>>
Cressida L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

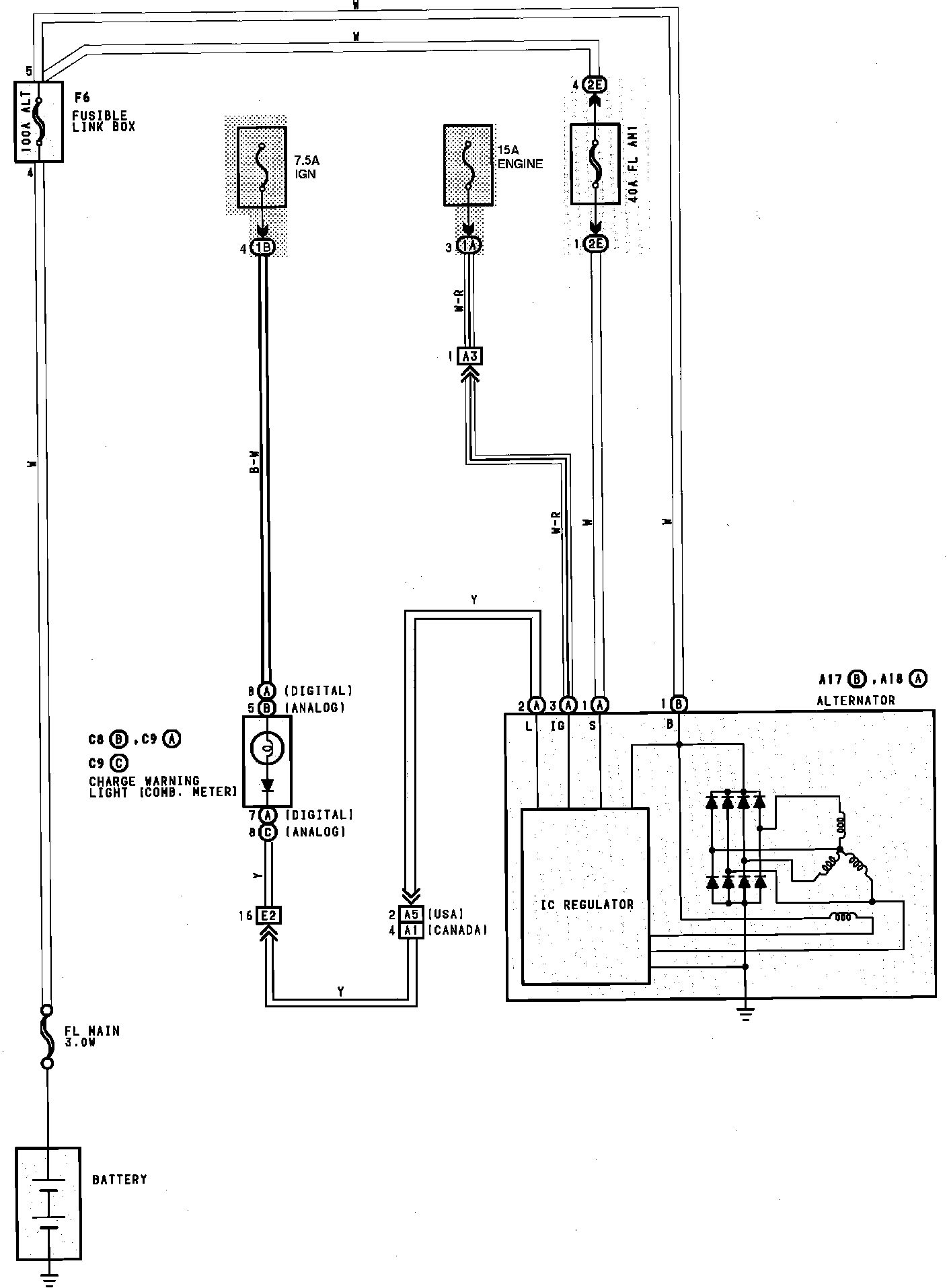

Charging:
