Symptom Related Diagnostic Procedures

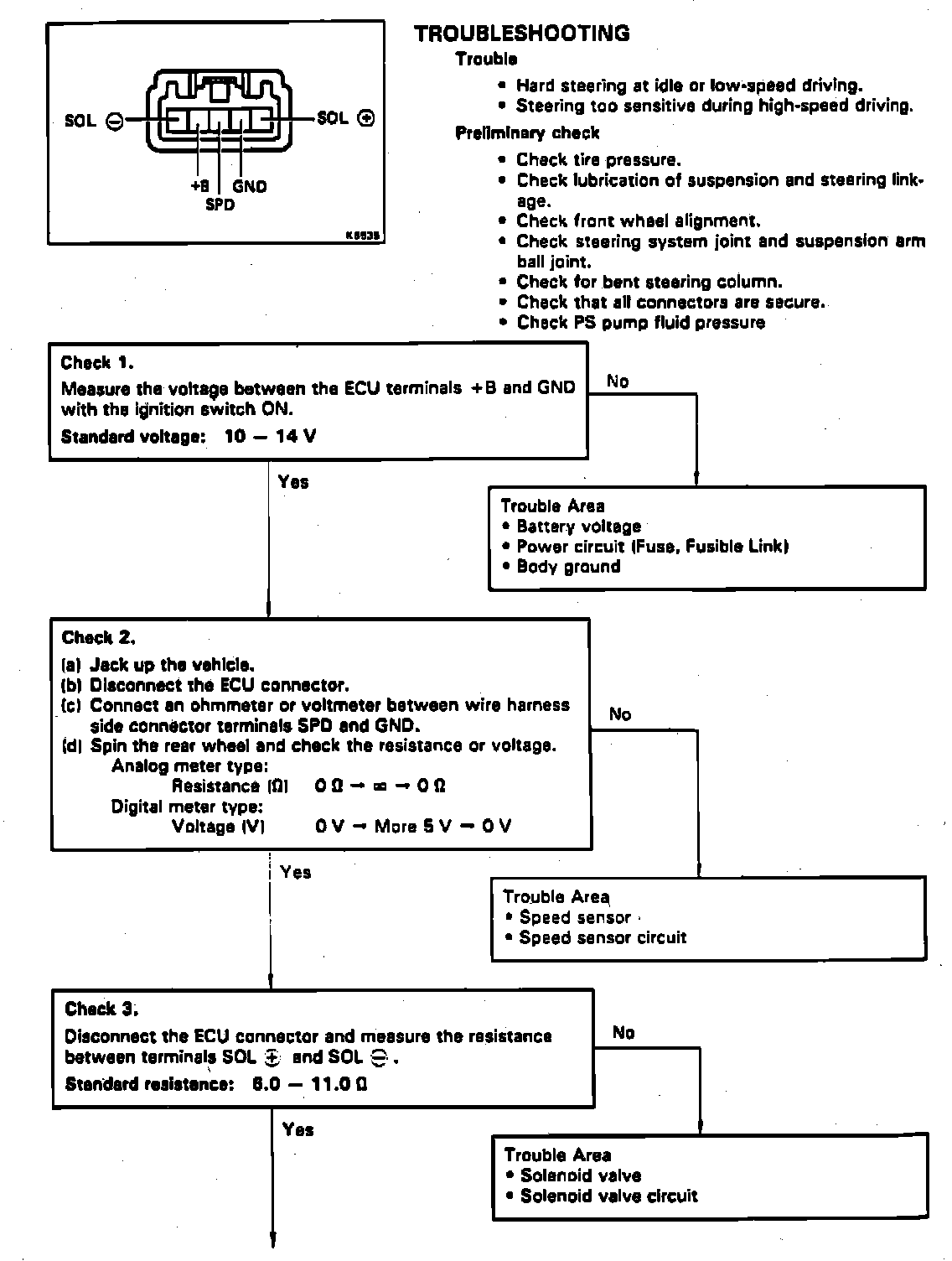

Fig. 11 PPS Troubleshooting Chart (Part 1 Of 2). 1989 Cressida:

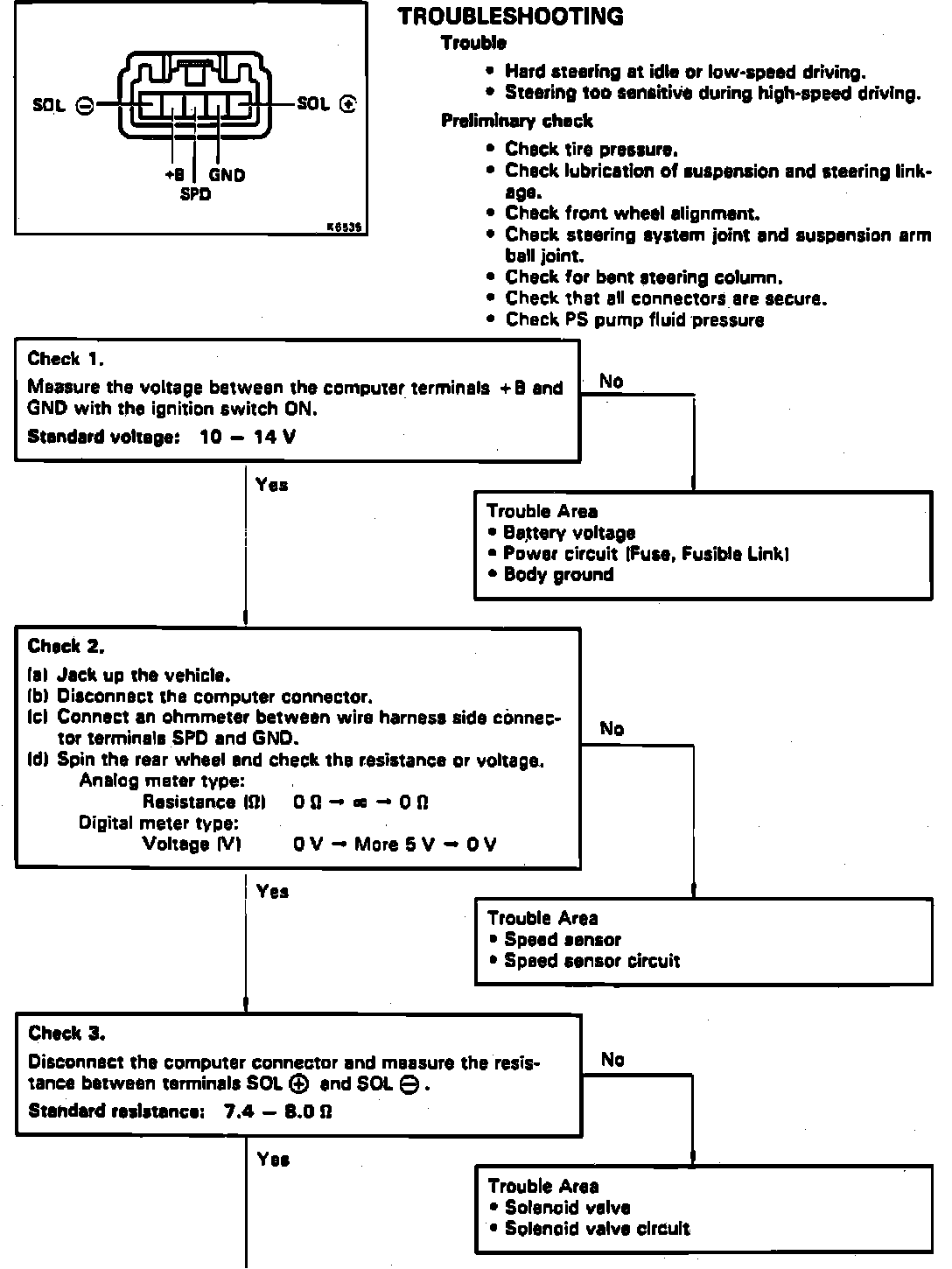

Fig. 11 PPS Troubleshooting Chart (Part 1 Of 2). 1990-91 Cressida:

Refer to Fig. 11, when troubleshooting system.
