Front

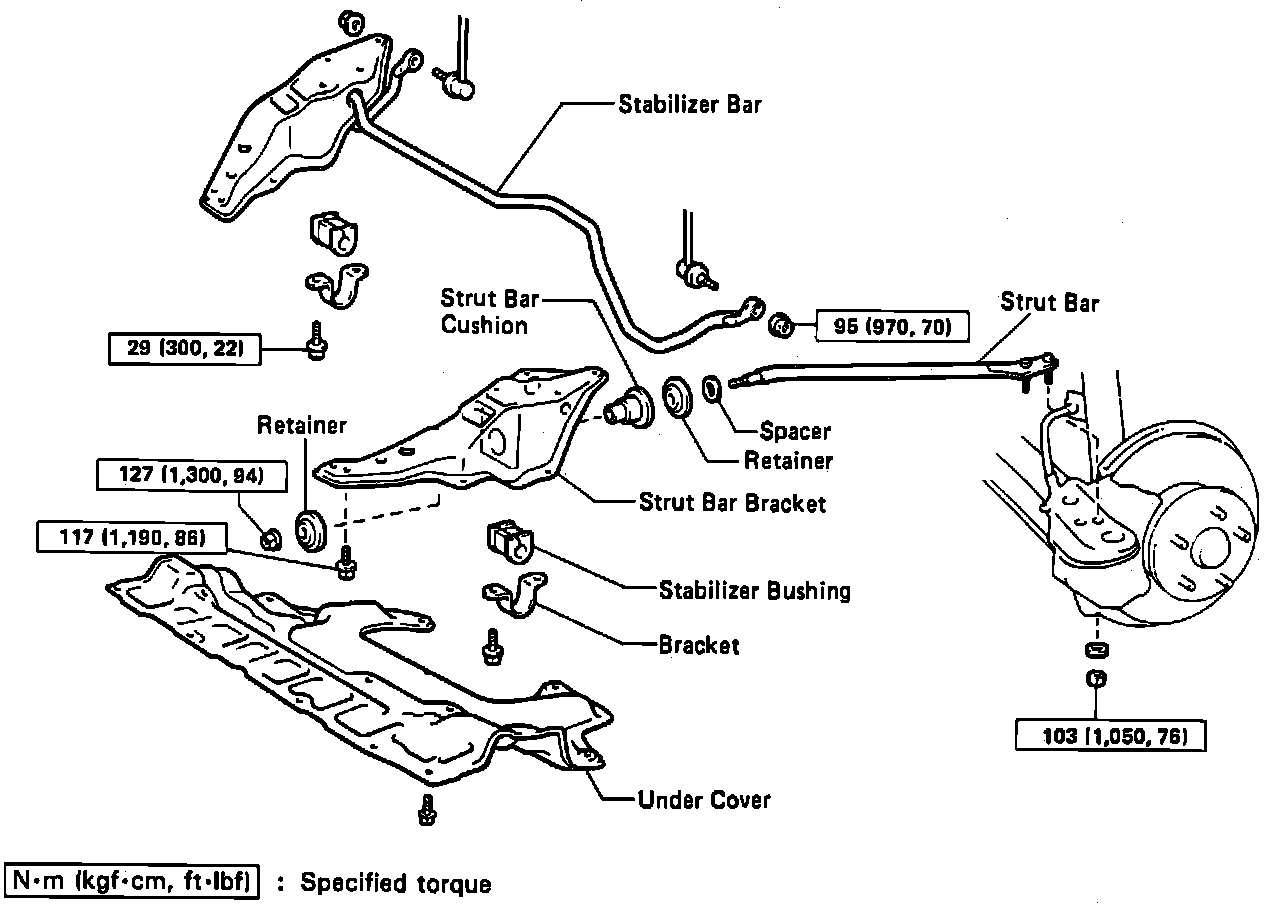

Fig. 4 Front Suspension Components:

1. Raise and support vehicle, then remove front wheel.
2. Remove bolts at steering knuckle arm, then disconnect tie rod end.
3. Remove two nuts and disconnect strut bar from lower suspension arm, Fig. 4.
4. Remove bolt securing lower suspension arm to crossmember, then remove lower arm with steering knuckle.
5. Remove cotter pin and nut securing knuckle to ball joint, then using a suitable press, remove knuckle.
6. Reverse procedure to install.
