Removal and Installation

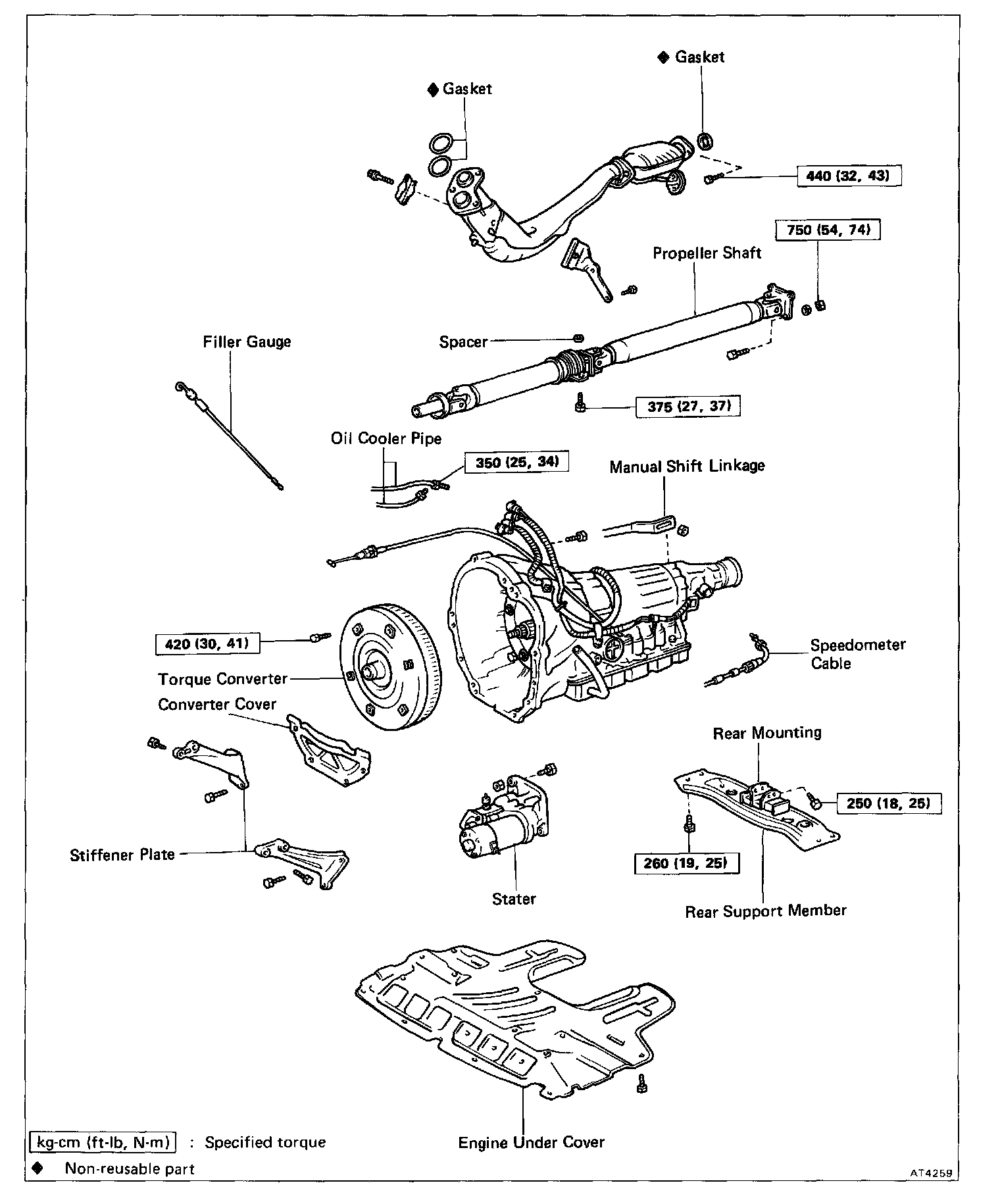

Remove and install the parts as shown.

(MAIN POINT OF INSTALLATION)

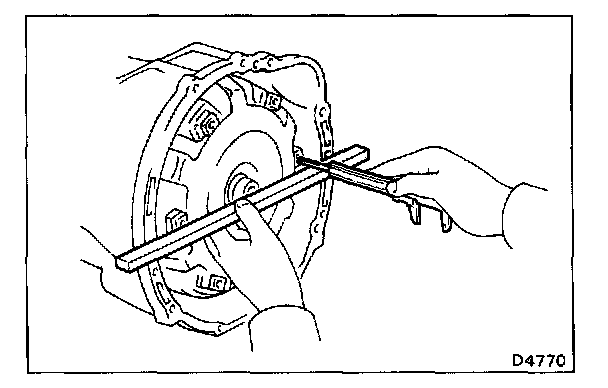

1. CHECK TORQUE CONVERTER INSTALLATION
Using calipers and a straight edge, measure from the installed surface of the torque converter to the front surface of the transmission housing.

Correct distance: 26.4 mm (1.039 in.)

If the distance is less than the standard, check for an improper installation.

2. ADJUST TRANSMISSION THROTTLE CABLE (See page AT-19)
3. FILL TRANSMISSION WITH ATF AND CHECK FLUID LEVEL

NOTE: Do not overfill.

Fluid type: ATF DEXRON(R) II
