Speedometer Gear, A/T: Service and Repair

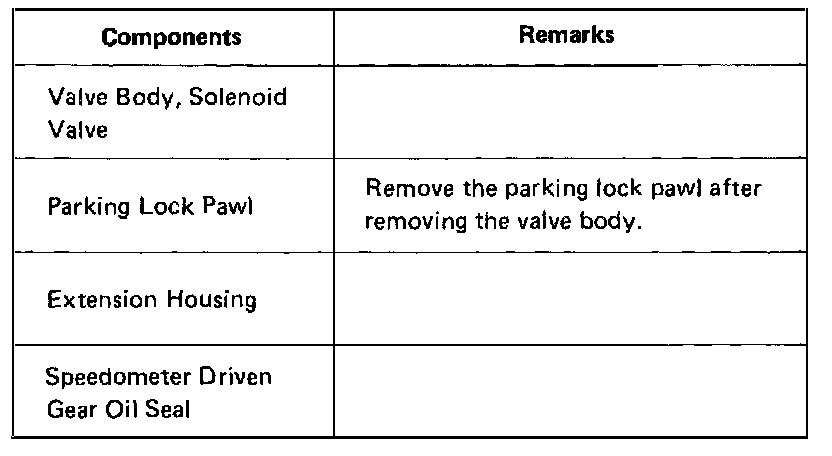

HINT: The components mentioned below can be replaced on the vehicle as they are without any necessity for removal of the transmission.

REPLACEMENT OF SPEEDOMETER DRIVEN GEAR OIL SEAL




REMOVE SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST, remove the oil seal.
SST 09921-00010

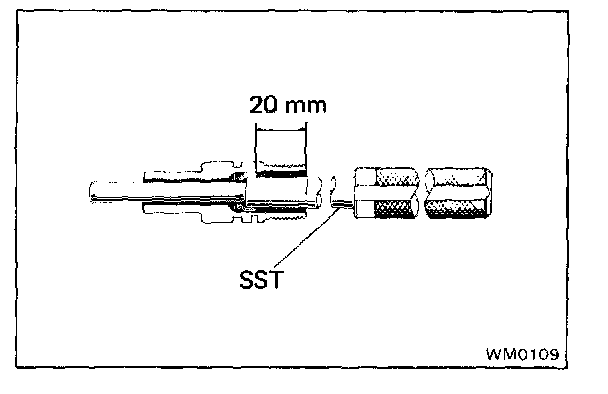

INSTALL SPEEDOMETER DRIVEN GEAR OIL SEAL
Using SST install a new oil seal.
SST 09201-60011

Drive in depth: 20 mm (0.79 in.)
