No. 2 Speed Sensor

No. 2 Speed Sensor:

Without ABS
- Jack up a front wheel on one side.

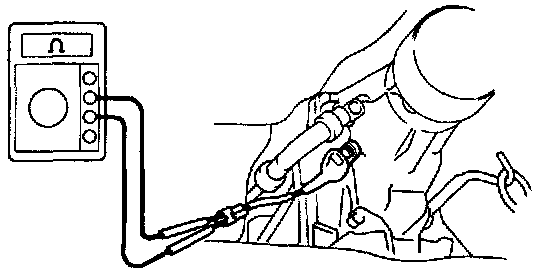

- Connect an ohmmeter between the terminals.
- Spin the wheel and check that the meter needle deflects from 0 to infinity.


With ABS
- Refer to ANTI-LOCK BRAKES\TESTING PROCEDURES.
