Computers and Control Systems

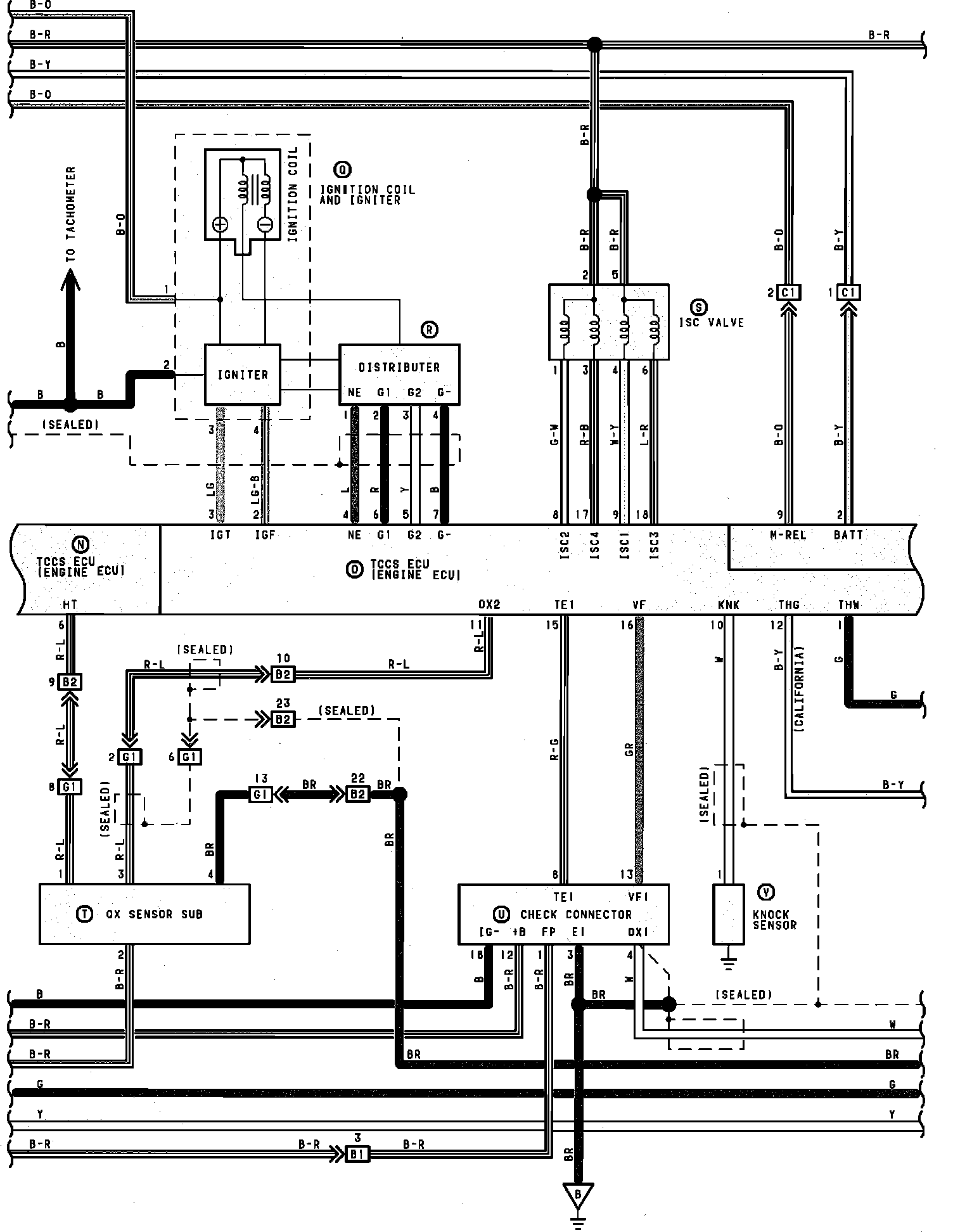

Engine Controls (7M-GE Engine):

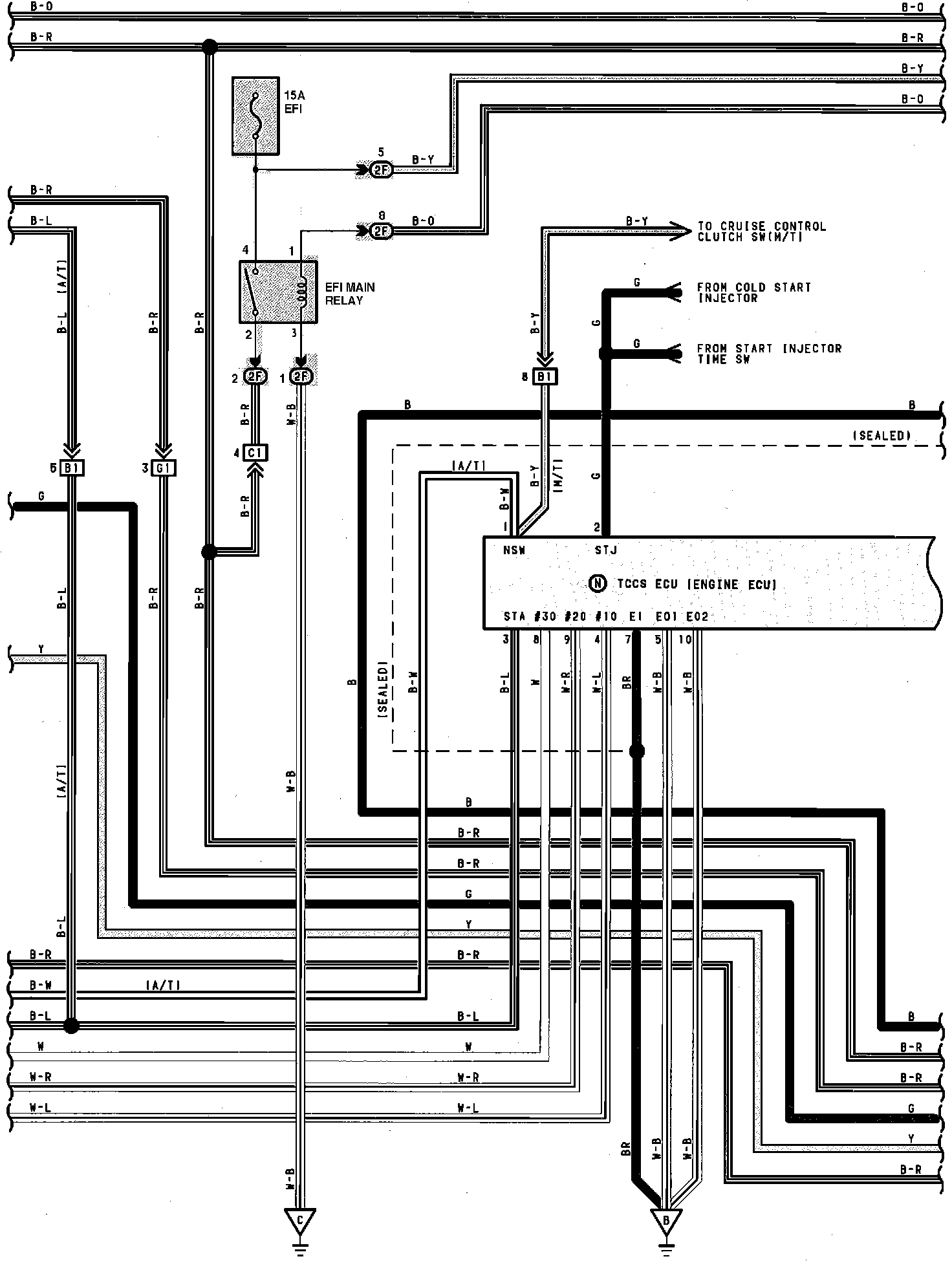

Engine Controls (7M-GE Engine):

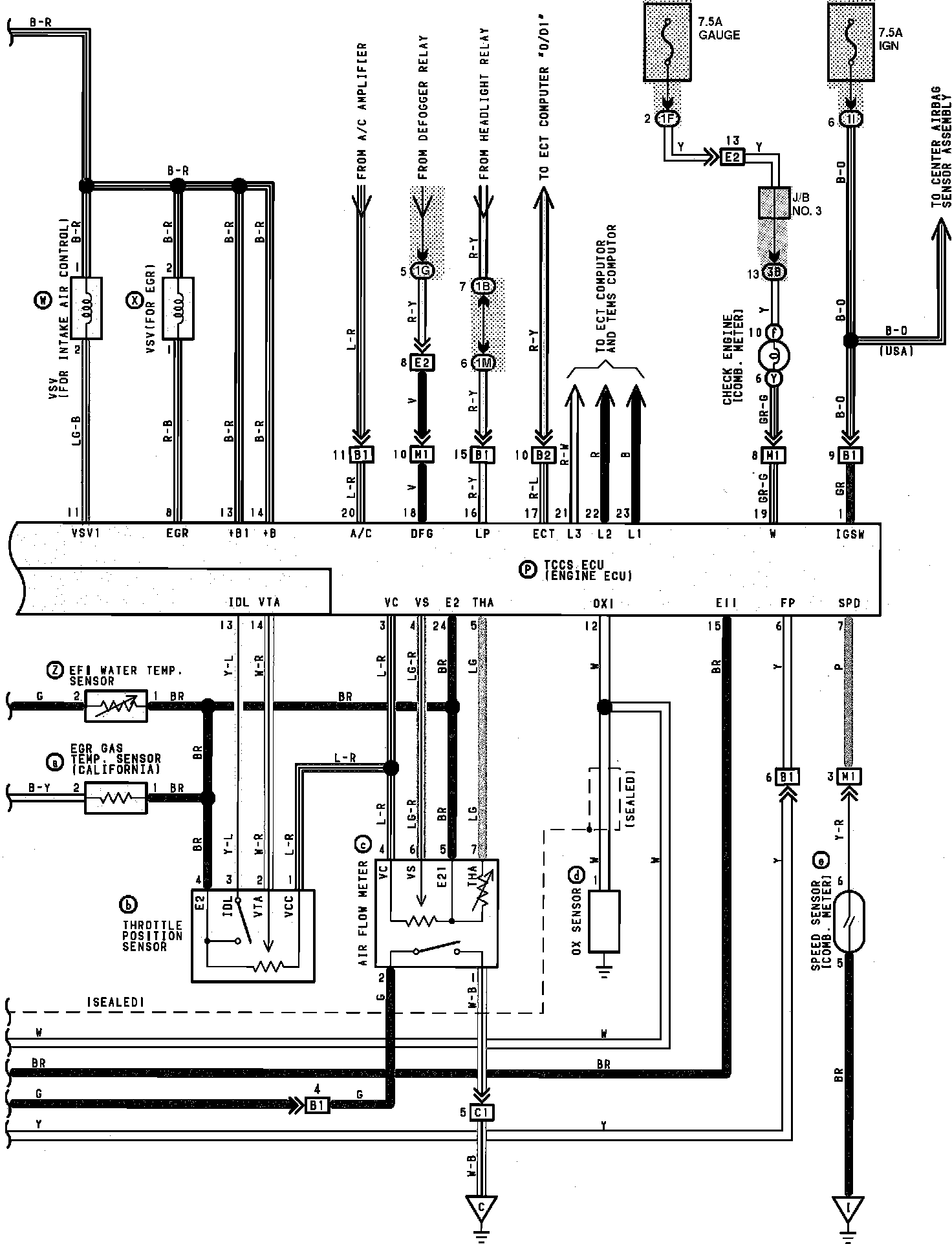

Engine Controls (7M-GE Engine):

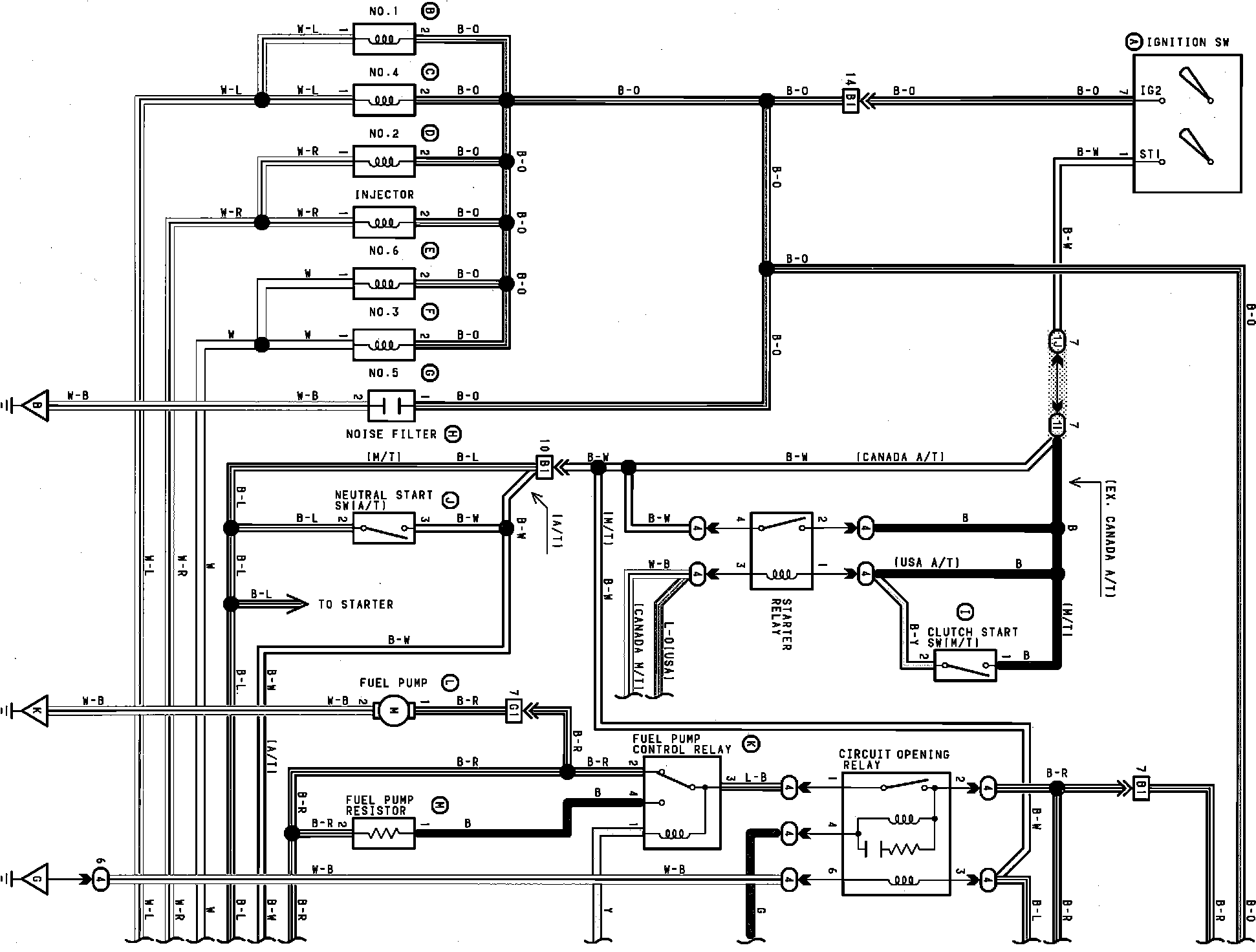

Engine Controls (7M-GE Engine):
