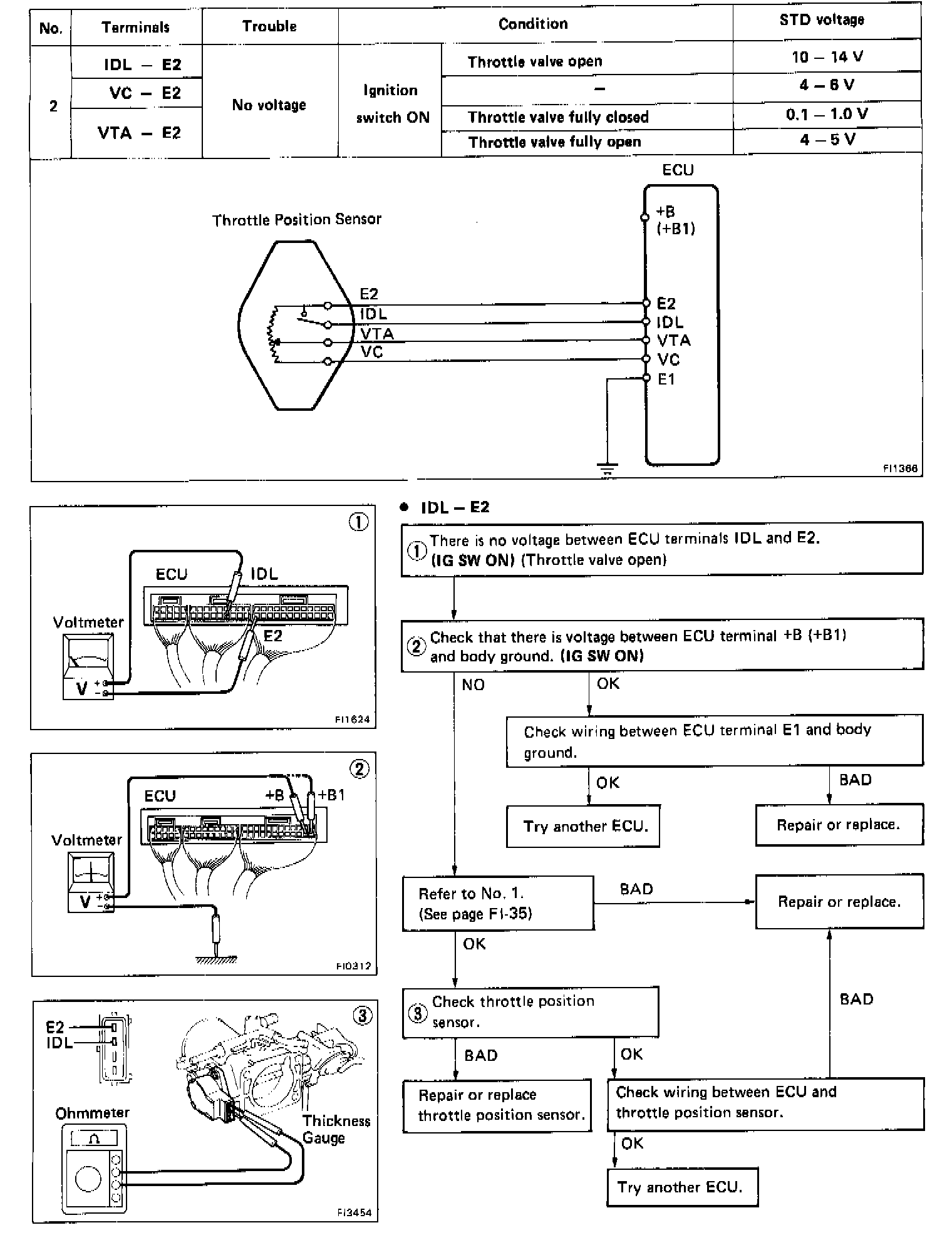

Home >> Toyota >> 1990 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Circuit Test Charts (For Trouble Code Diagnosis) >> Chart 2
