Home >> Toyota >> 1990 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Idle Speed/Throttle Actuator - Electronic >> Testing and Inspection >> Circuit Test

Circuit Test

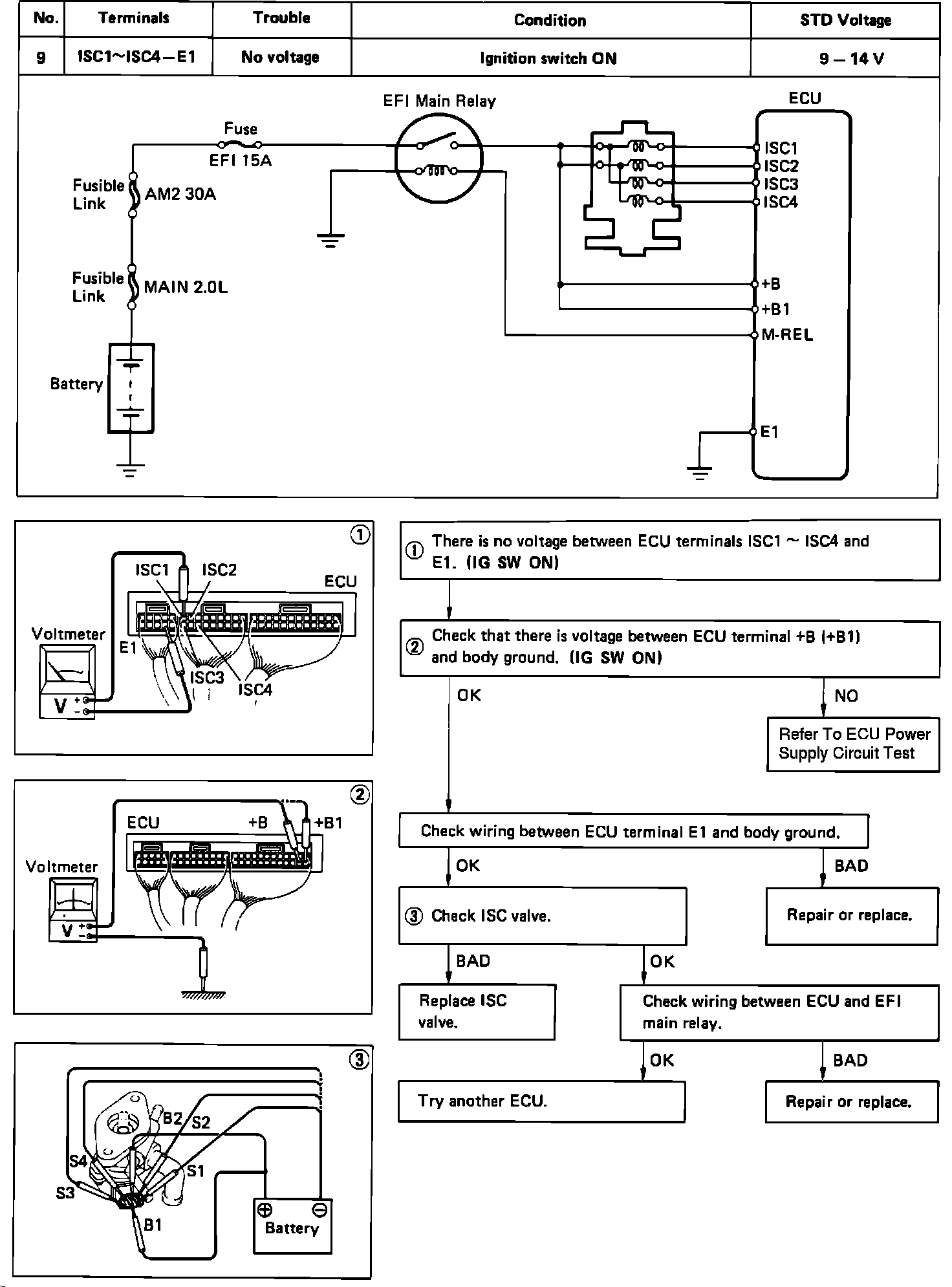

ISC Valve Circuit Test:
