Assembly of Counter Gear Assembly

INSERT NO.3 CLUTCH HUB INTO HUB SLEEVE

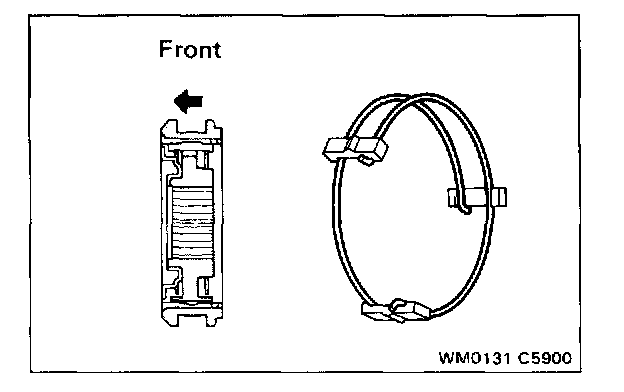

a. Install No.3 clutch hub and the shifting keys to the hub sleeve.
b. Install the shifting key springs under the shifting keys.

NOTE: Install the key springs positioned so that their end gaps are not in line.

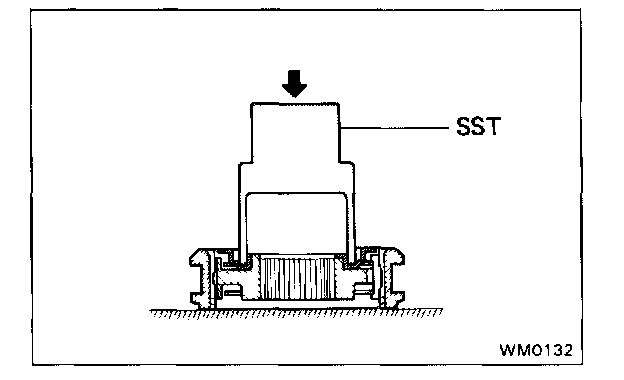

c. Using SST, install the shifting key retainer.
SST 09238-47012
