Disassembly of Counter Gear Assembly

REMOVE HUB SLEEVE SHIFTING KEYS AND SPRINGS FROM CLUTCH HUB

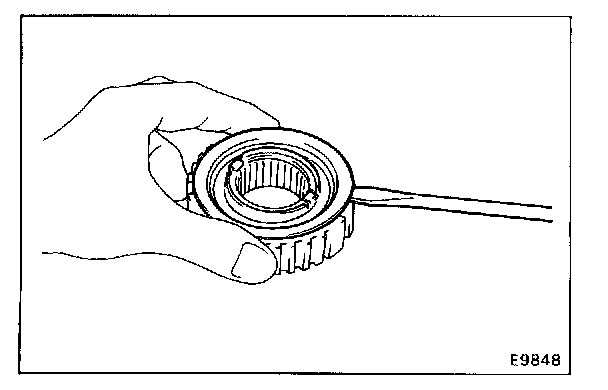

a. Using a screwdriver, remove the rear side shifting key spring and three keys and hub sleeve from clutch hub.




b. Using a screwdriver, remove the retainer and front side shifting key spring.
