Replacement of Bearing

1. IF NECESSARY, REPLACE COUNTER GEAR FRONT BEARING AND SIDE RACE

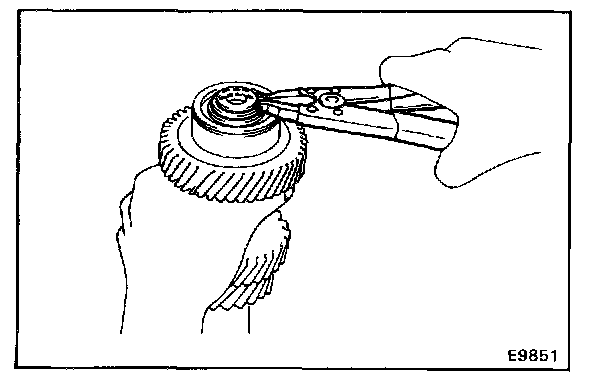

a. Using snap ring pliers, remove the snap ring.

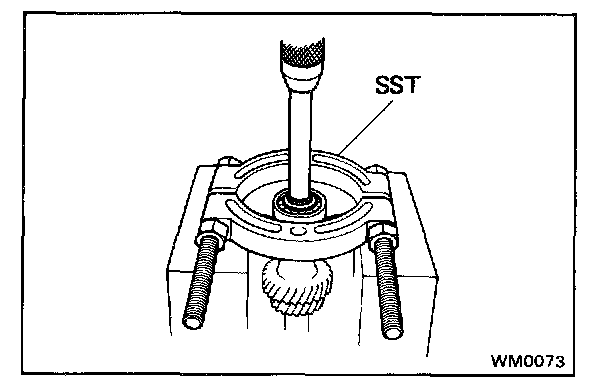

b. Using a press and SST, press out the bearing.
SST 09950-00020
c. Check the side race for wear or damage.




d. If necessary, remove the side race.
- Using SST and socket wrench, remove the side race.
SST 09950-20017

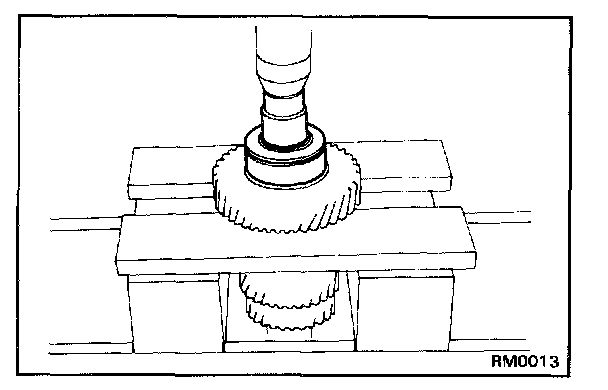

e. Using a socket wrench, press in a new bearing, side race and inner race.







f. Select a snap ring that will allow minimum axial play.

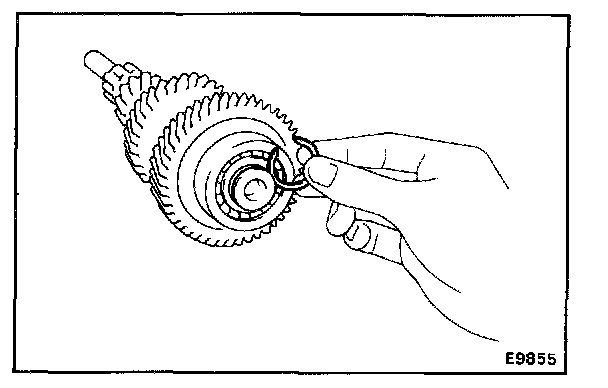

g. Using a snap ring expander, install the snap ring.
2. IF NECESSARY, REPLACE COUNTER GEAR CENTER BEARING




a. Remove the bearing from the counter gear.

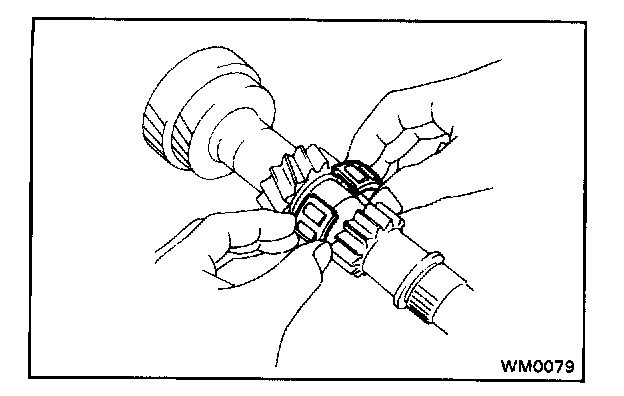

b. Install a new bearing on the counter gear.

HINT: Engage the roller cages.

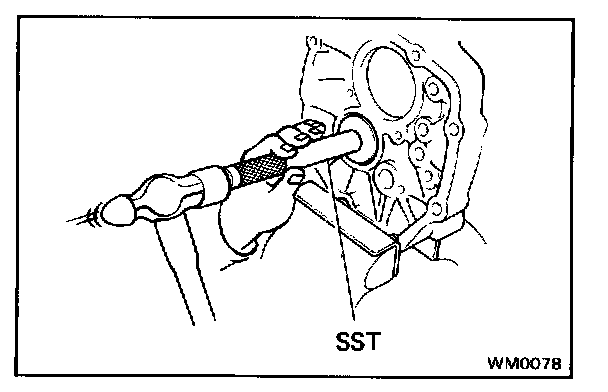

c. Using SST, tap out the bearing outer race.
SST 09608-35014 (09608-06020, 09608-06090)

HINT: The outer race will be installed later, as the transmission is assembled.
